CDM-710 Broadcast Satellite Modem
CDI-40 ASI Interface Module
PL/10881-3 – CDI-40 ASI Interface for non-1:1 Applications or Tx Only 1:1

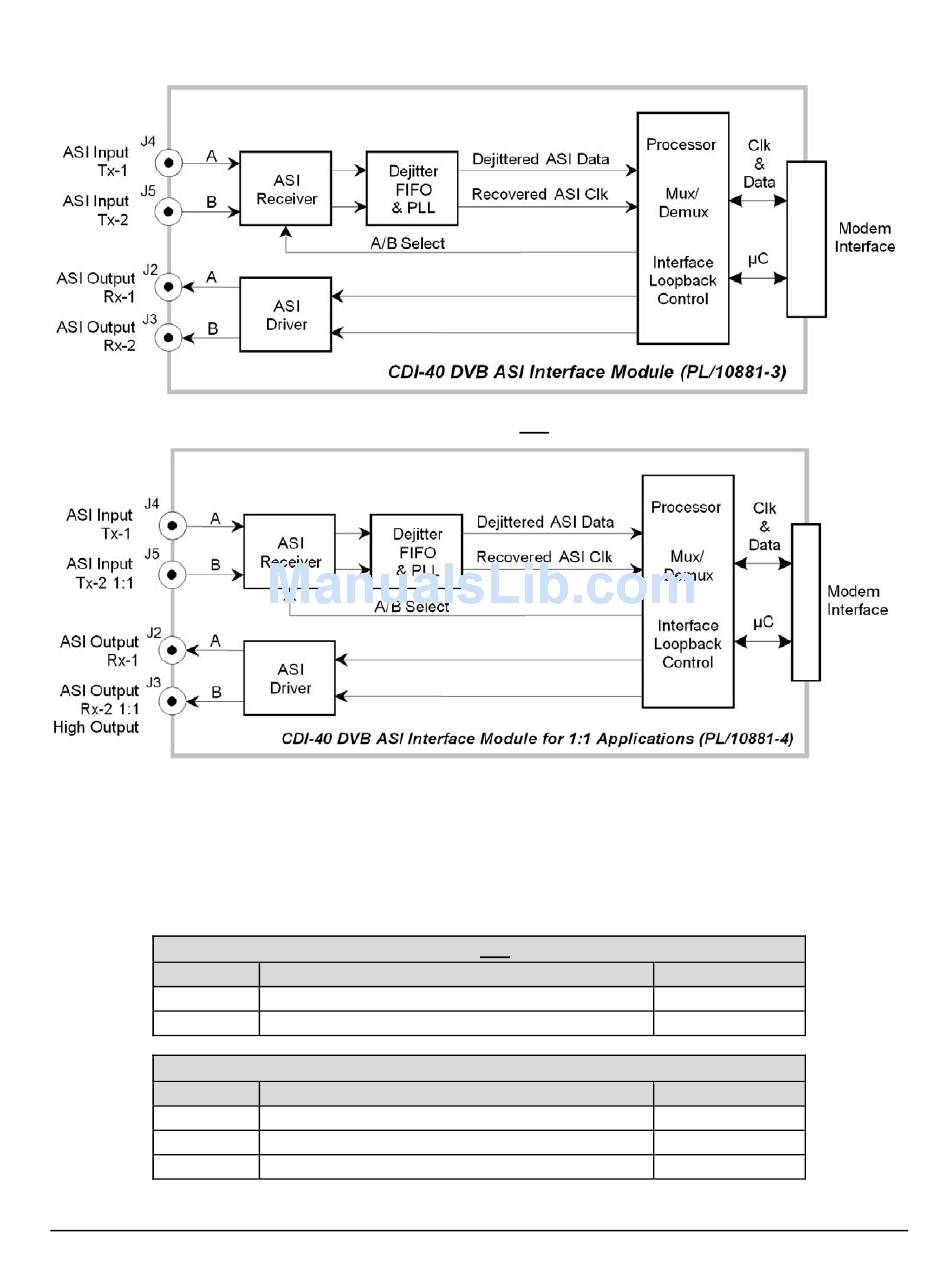

Figure 8-2. CDI-40 ASI Interface Module Block Diagrams

8.2.1 Connector Pinouts

The CDI-40 ASI Interface connector pinouts are as follows:
PL/10881-3 CDI-40 ASI Interface for non-1:1 Applications or Tx Only 1:1
Connector
J2, J3
J4, J5
Connector
J2,
J3
J4, J5
PL/10881-4 – CDI-40 ASI Interface for 1:1 Applications
Description
Rx Data, BNC Female
Tx Data, BNC female
PL/10881-4 CDI-40 ASI Interface for 1:1 Applications
Description
Rx Data, BNC Female
Rx Data, BNC Female, 1:1 Redundant (High-Level)
Tx Data, BNC female
8–3
Revision 11
MN/CDM710.IOM
Signal Direction
Output
Input
Signal Direction
Output
Output
Input
