CDM-710 Broadcast Satellite Modem
CDI-70 1000 Base-T Gigabit Ethernet (GigE) Interface Module
Connect the client PC to the CDI-70 GigE Interface module via an Ethernet hub or a switch, or
5
directly to the PC with a crossover cable.
Enable the CDI-70 on the CDM-710 in order to enable the GigE Interface's PHY interface.
6
IMPORTANT
Reflash the unit.
7

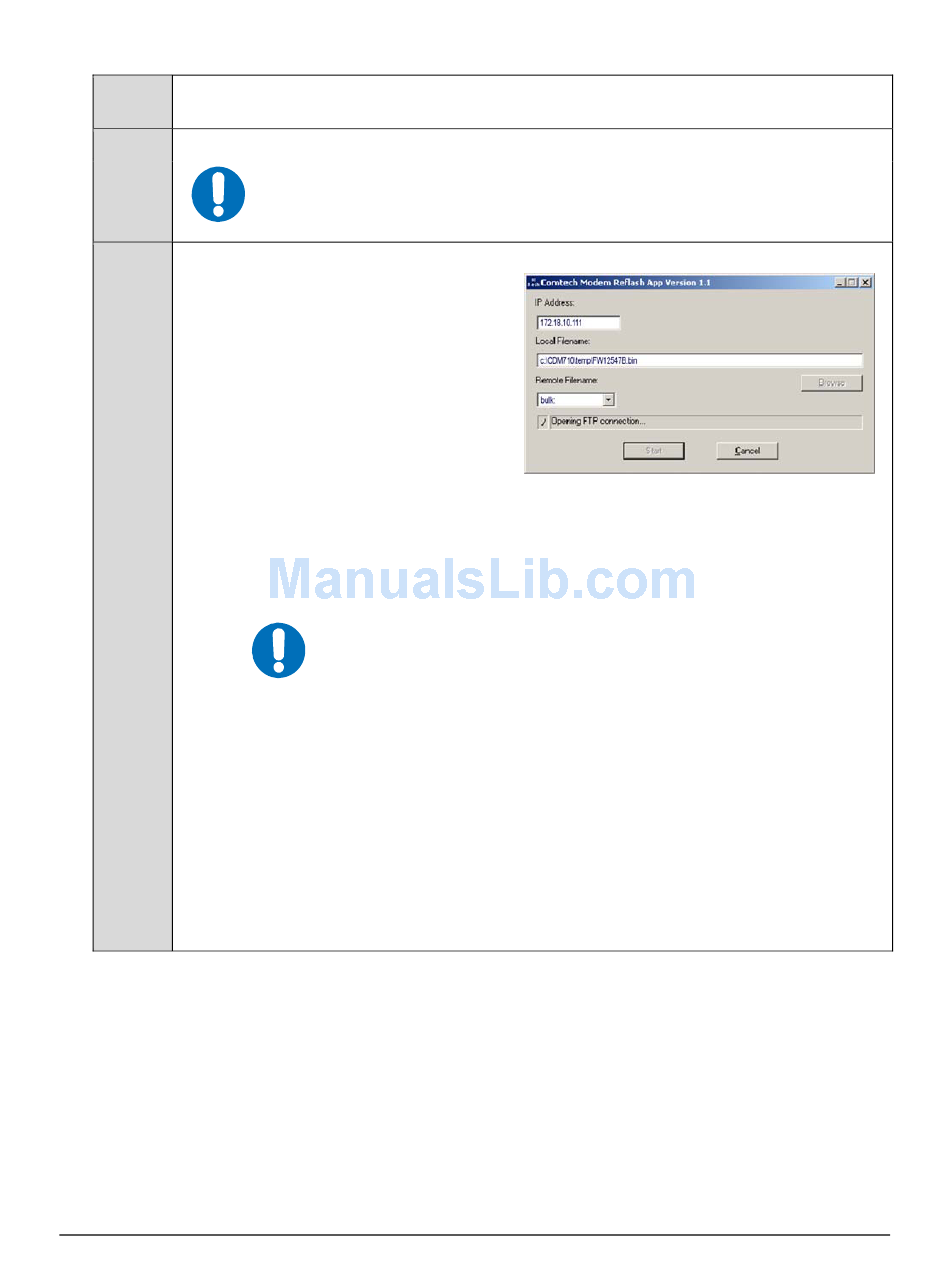

a) Double-click on CReflash.exe to start the
Comtech Modem Reflash Application
(shown at right):
b) Type the IP Address assigned to the
CDI-70 in the IP Address: field.
c) Enter the bulk image load by either (1)
typing the path and filename, or (2)
using the [Browse] button to select the
file.
d) Leave the Remote Filename selection as "bulk:".
e) Click [Start].
f) The CReflash.exe executable automatically FTPs the filename to the IP address entered,
and displays the progress of the update.
g) When the update is complete: The message 'Successful!' appears in the [ / ] status field of
the CReflash.exe application window; a similar message displays on the modem's front
panel.
h) Cycle power to the CDM-710 to have the new firmware loaded to the CDI-70.
i) Verify that the version update has successfully loaded upon reboot, using one of the
available query methods provided in Step 1.
The CDI-70's firmware can only be loaded via the Ethernet M&C port; do not use
the J4 Ethernet M&C port
Once the CReflash.exe application has been started, the
program will not respond to user input for approximately five
(5) minutes. During this time, a message indicating this
IMPORTANT
progress phase will also display on the modem's front panel.
•
DO NOT CLOSE THE CR
PC!
•
DO NOT REBOOT THE MODEM!
.
EFLASH
