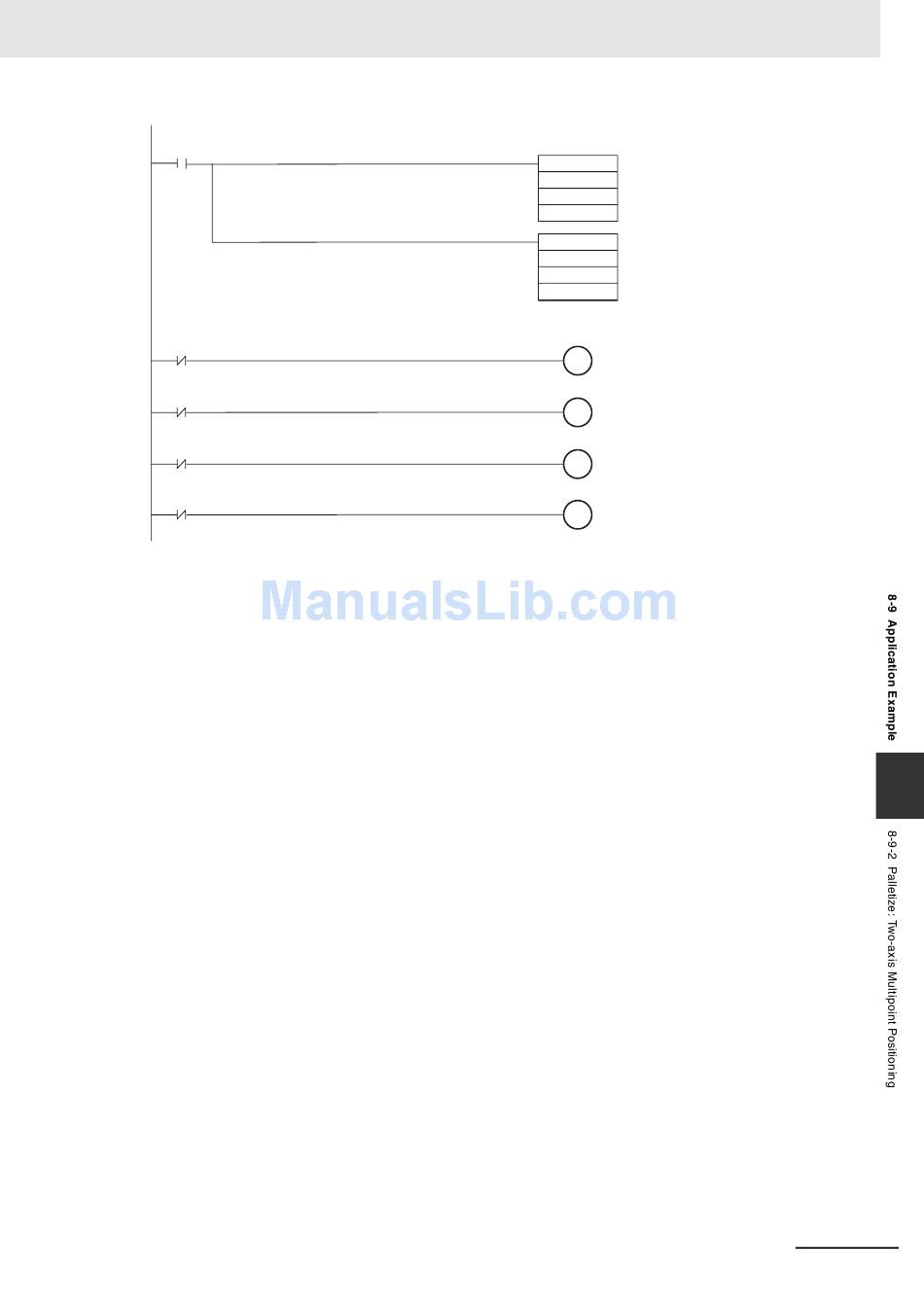

Immediate stop (Pulse output stopped)
0.01
Immediate
stop switch
Limit Input Settings
(CIO 2960.06)
Input IN06
(CIO 2960.07)
Input IN07
(CIO 2960.08)
Input IN08
(CIO 2960.09)
Input IN09
CJ2M CPU Unit Pulse I/O Module User's Manual
8 Pulse Outputs
@INI (880)
Operation Mode Control
#0
Port specifier: Pulse output 0
#3
Control data: Stop pulse output
D90
@INI (880)
Operation Mode Control
#1
Port specifier: Pulse output 1
#3
Control data: Stop pulse output
D91
A540.08
CW limit input signal X axis
A540.09
CCW limit input signal X axis
A541.08
CW limit input signal Y axis
A541.09
CCW limit input signal Y axis
8
8-73
