8 Pulse Outputs
Precautions for Safe Use
When using the BIT COUNTER (BCNT(067)), BLOCK SET (BSET(071)), and BLOCK TRANS-
FER (XFER(070)) in the ladder program, do not specify more than 99 words for each instruction.
If more than 99 words must be used, use more than one instruction. Pulse output is not possible
during execution of these instructions. If more than 99 words are specified for one of them, pulse
output will not be predicable and may stop momentarily.

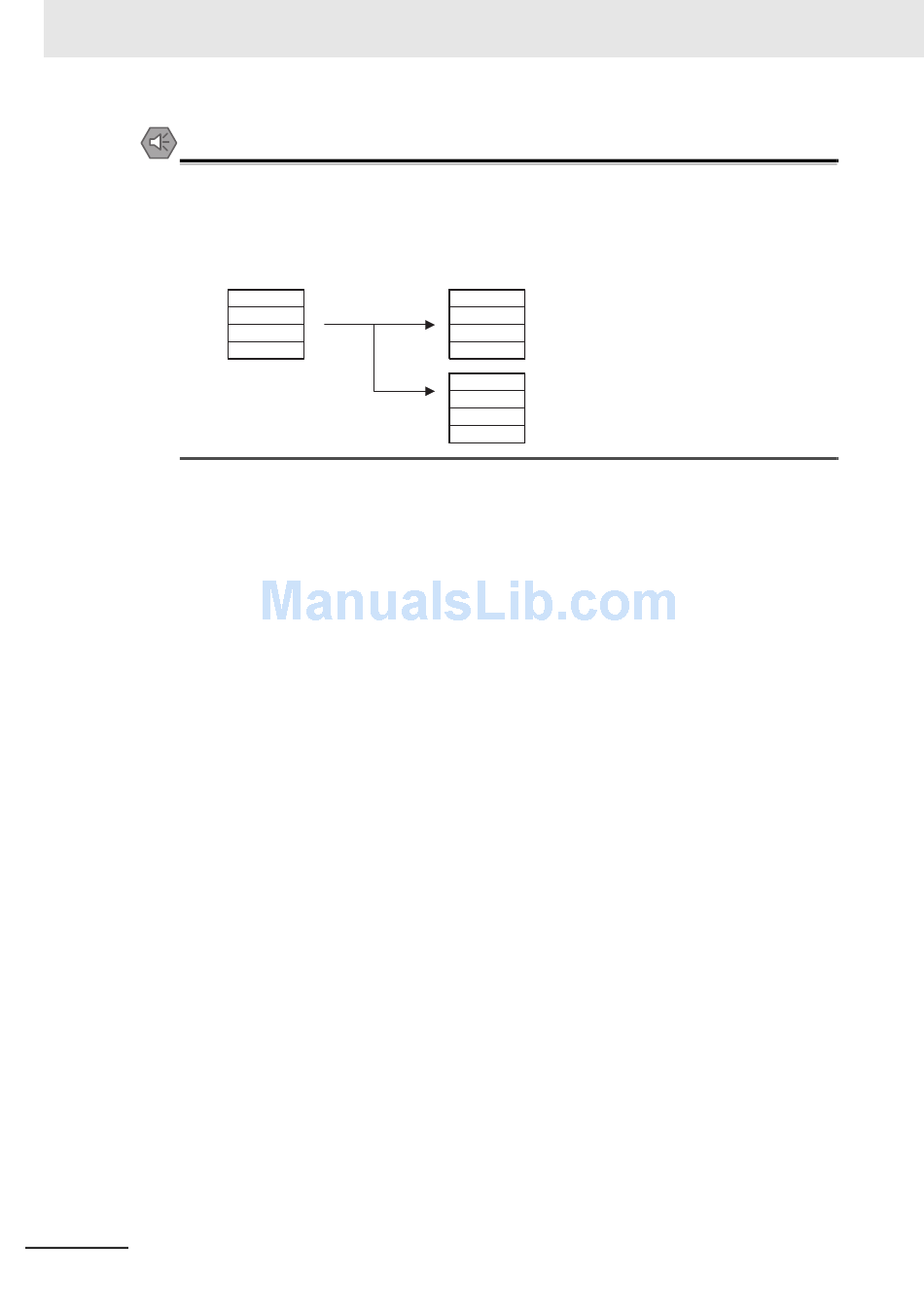

Transferring 120 Words of Data Started at D0 to Words Starting at D1000
8-26
XFER
Processing separated.
&120
D0
D1000
XFER
&60
D0
D1000
XFER
&60
D60
D1060
CJ2M CPU Unit Pulse I/O Module User's Manual
