Chapter 3. Operating the Control Panel
This chapter explains how to operate the control panel on the front of your disk array. The control panel
enables you to perform many array configuration and maintenance tasks. The control panel display can be
seen through the front door, but the door must be open in order to access the control panel function keys.
Using the Control Panel
Figure 17
shows the control panel display and function keys.

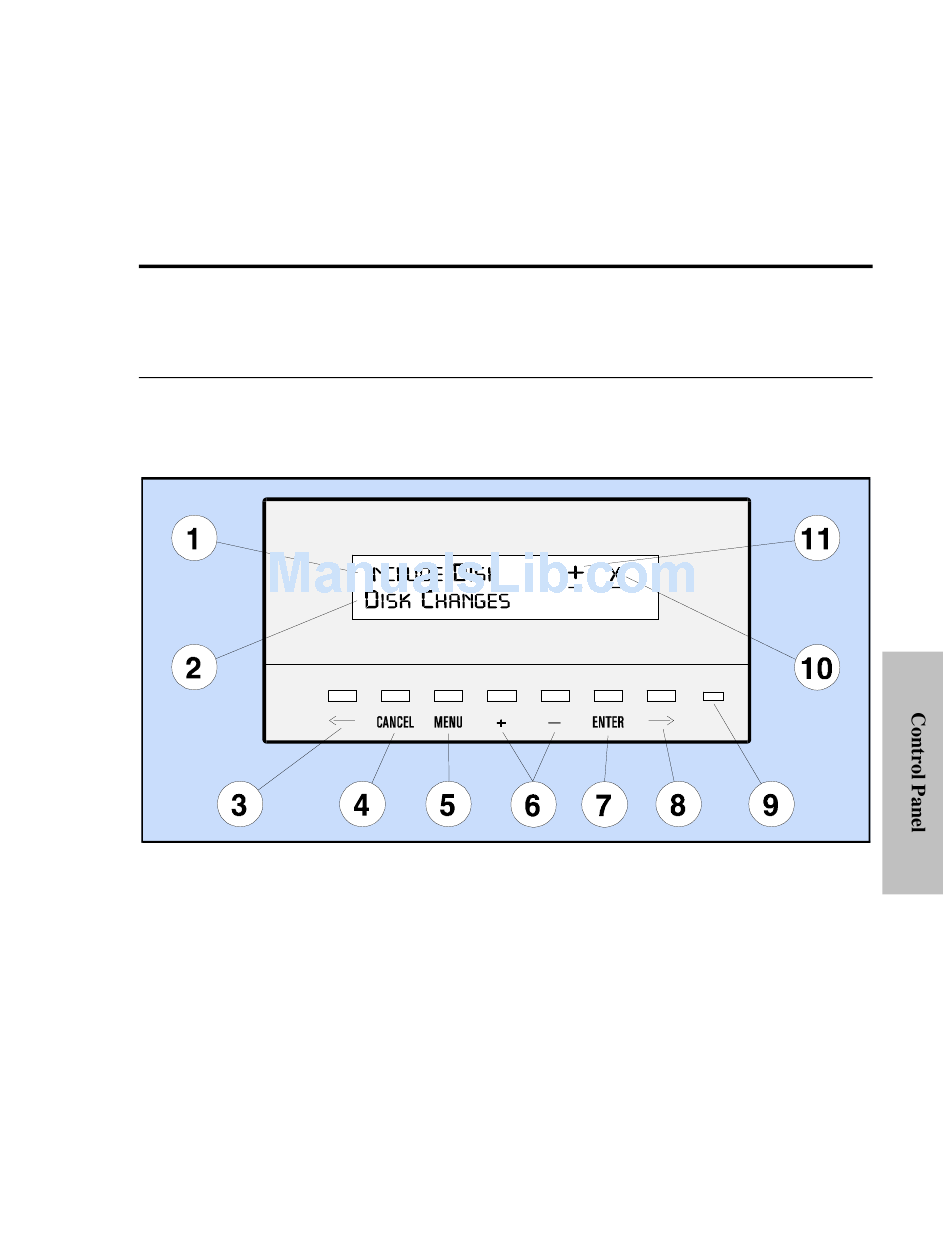

Figure 17. Control Panel Display and Function Keys
1 – Available Choice
2 – Selection History
3 – Scroll Text Left
4 – Cancel Selection
5 – Display Main Menu
6 – Scroll Menus/Items
7 – Select Menu/Items
8 – Scroll Text Right
9 – Control Panel Status Light
10 – Controller Indicator (x or y)
11 – Menu/Item Scroll Indicator
69
