Transducer - Simrad SX90 - REFERENCE MANUAL REV D Reference Manual

Simrad SX90
172

Transducer

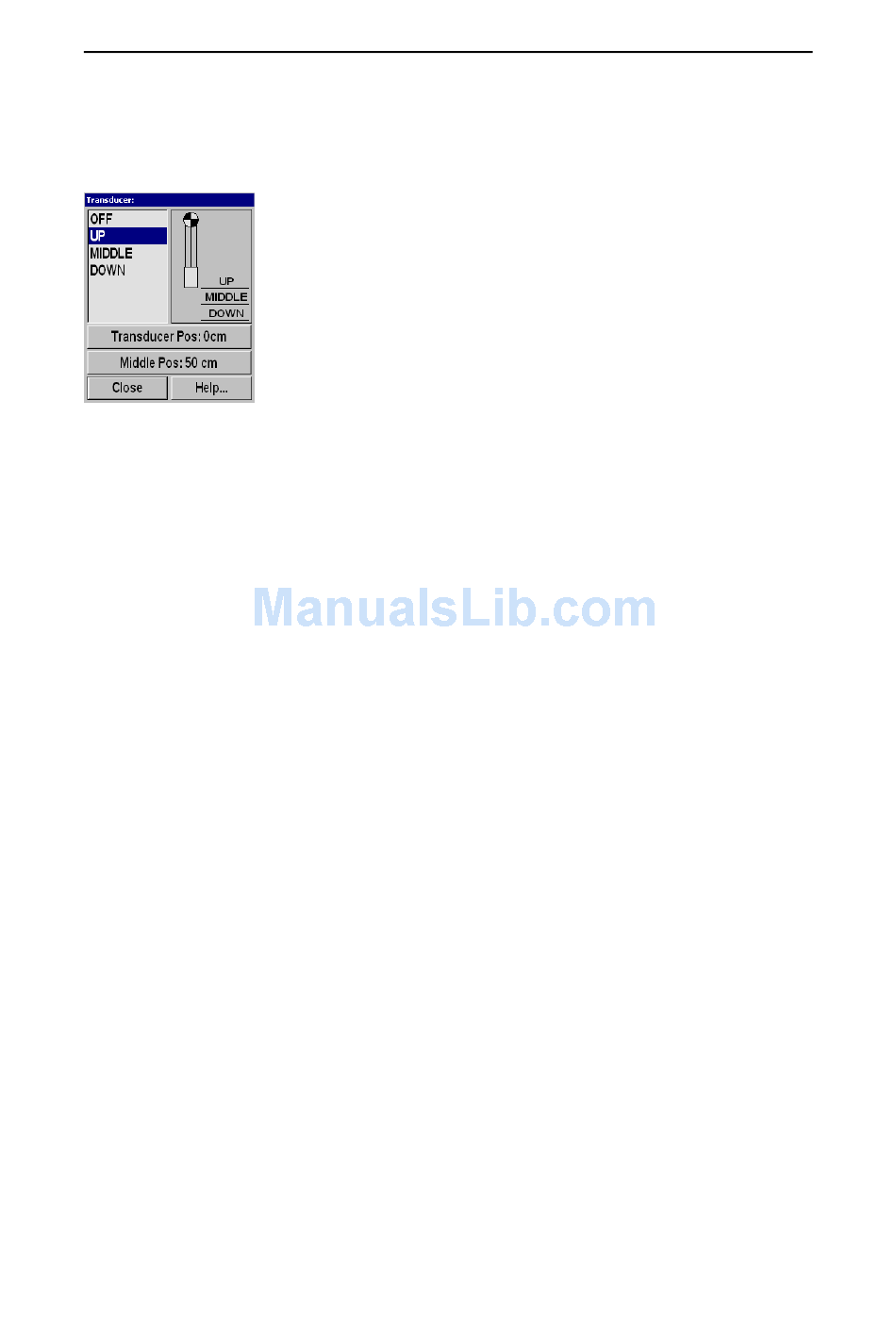

The parameter dialog opens when you click the
Transducer
button in the
Transducer
Dialog description
The transducer position is normally selected from the Operating
Panel, and in addition to the LED indicators on the panel, the
transducer position is shown in the
buttons in this parameter dialog correspond to their respective
buttons on the Operating Panel, and allows you to control the
transducer position by means of the sonar's menu system.
Options
• : Click to switch off the sonar system.
Off
• : Click to retract the transducer array to its upper position.
Up
• : Click to position the transducer array in its middle
Middle
position. This position is defined by means of the
button. Note that the hull unit installed must provide this
feature for this function to work.
• : Click to lower the transducer array.
Down
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
• Status on page 164
• Middle Pos on page 139
parameter dialog.
Status
parameter dialog. The
Status
Middle Pos
307670/D
