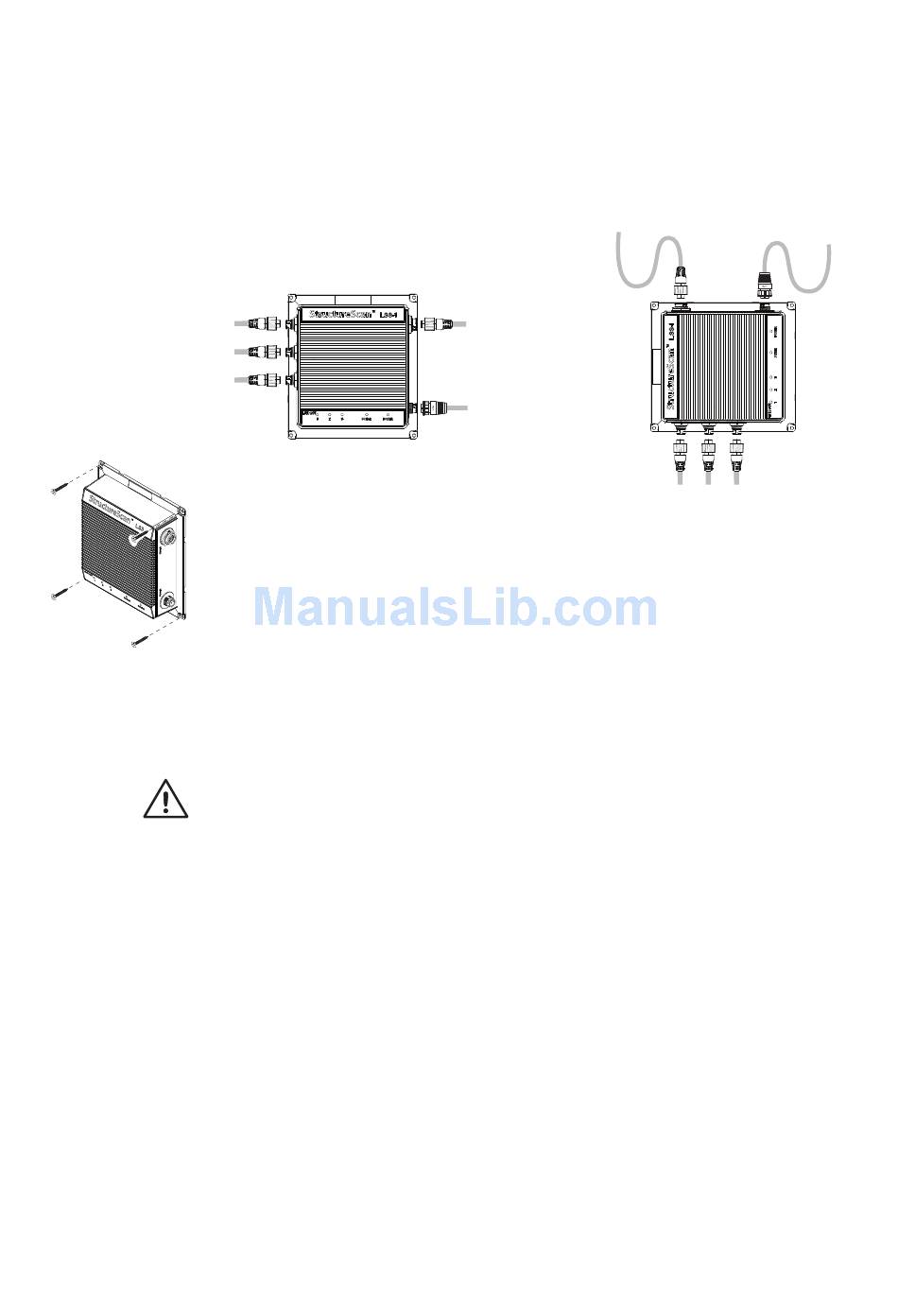

Mounting the LSS-1 module

Preferably mount the LSS-1 module on a vertical surface
so that cables exit sideways. If that is not feasable,
create drip loops to prevent moisture entering the
connectors.
Fasten the LSS-1 by using the screws included with the
unit.
Secure cables and ensure to not put strain in the
connectors.

Wiring

Refer to the Wiring diagram on page 9.
Removing the transducer cable from the LSS-1
while the module is powered on can cause sparks.
Remove the transducer cable only after the module
has been disconnected from its power source.

Connecting the LSS-1 to your display

The LSS-1 connects to your display over an Ethernet
network, either directly or via an Ethernet network
switch.

Connecting the transducer

The StructureScan transducer connects to the LSS-1
with the cable supplied with the transducer.
StructureScan LSS-1 Installation manual | 7
