Display Gain - Simrad SX90 - REFERENCE MANUAL REV D Reference Manual

307670/D

Display Gain

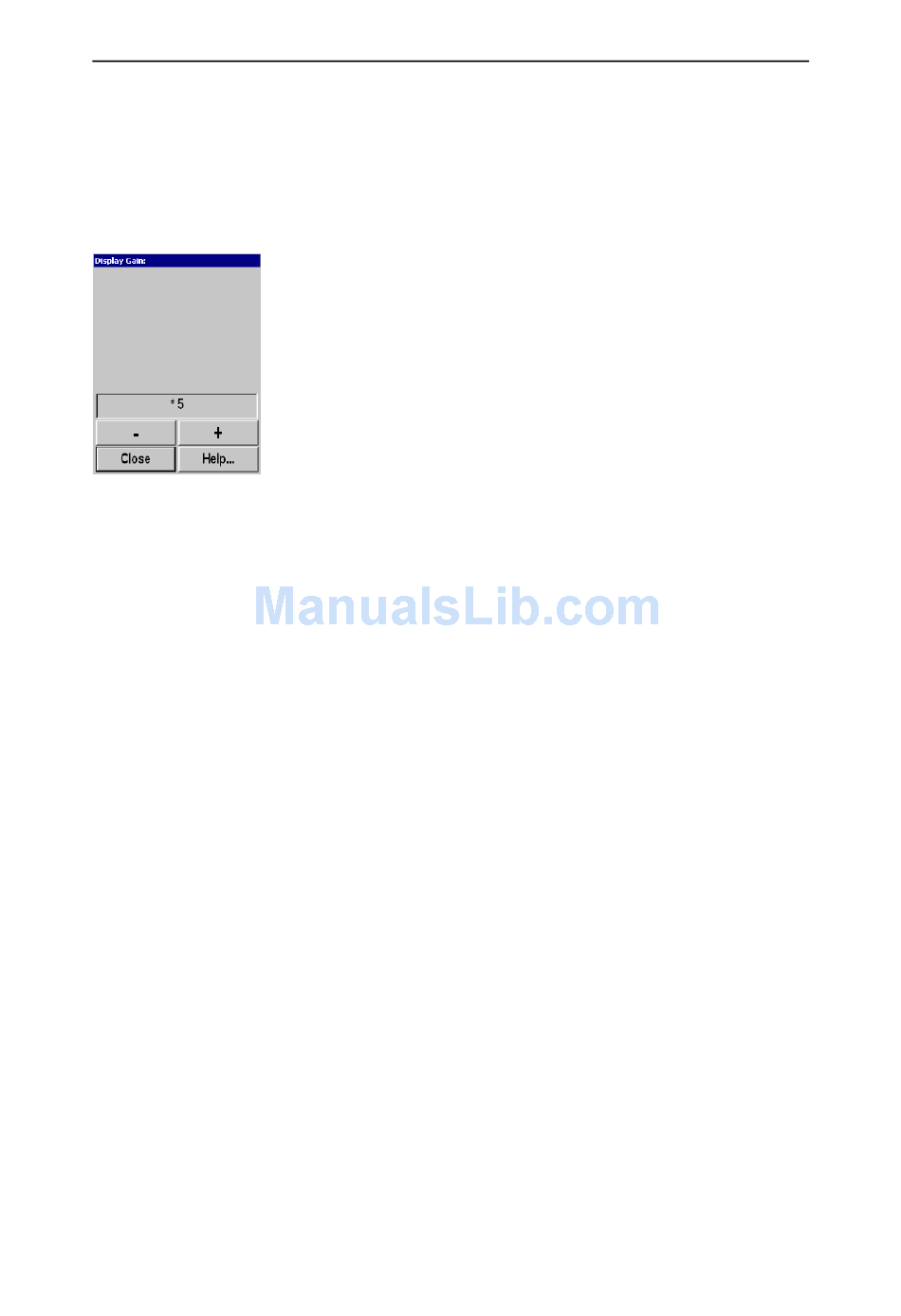

The parameter dialog opens when you click the
Display Gain
button in the
Display Gain
This command increases or decreases the presentation of the
echo colours on the display. In order to adjust the receiver gain,
refer to the individual
and menus.
Vertical
The following options are available in the
dialog:
• + (plus): Click to increase the display gain.
• – (minus): Click to decrease the display gain.
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
Display menu on page 88
Gain on page 132
menu.
Display
parameters accessed in the
Gain
Display Gain
Parameters
Horizontal
parameter
125
