Vertical menu

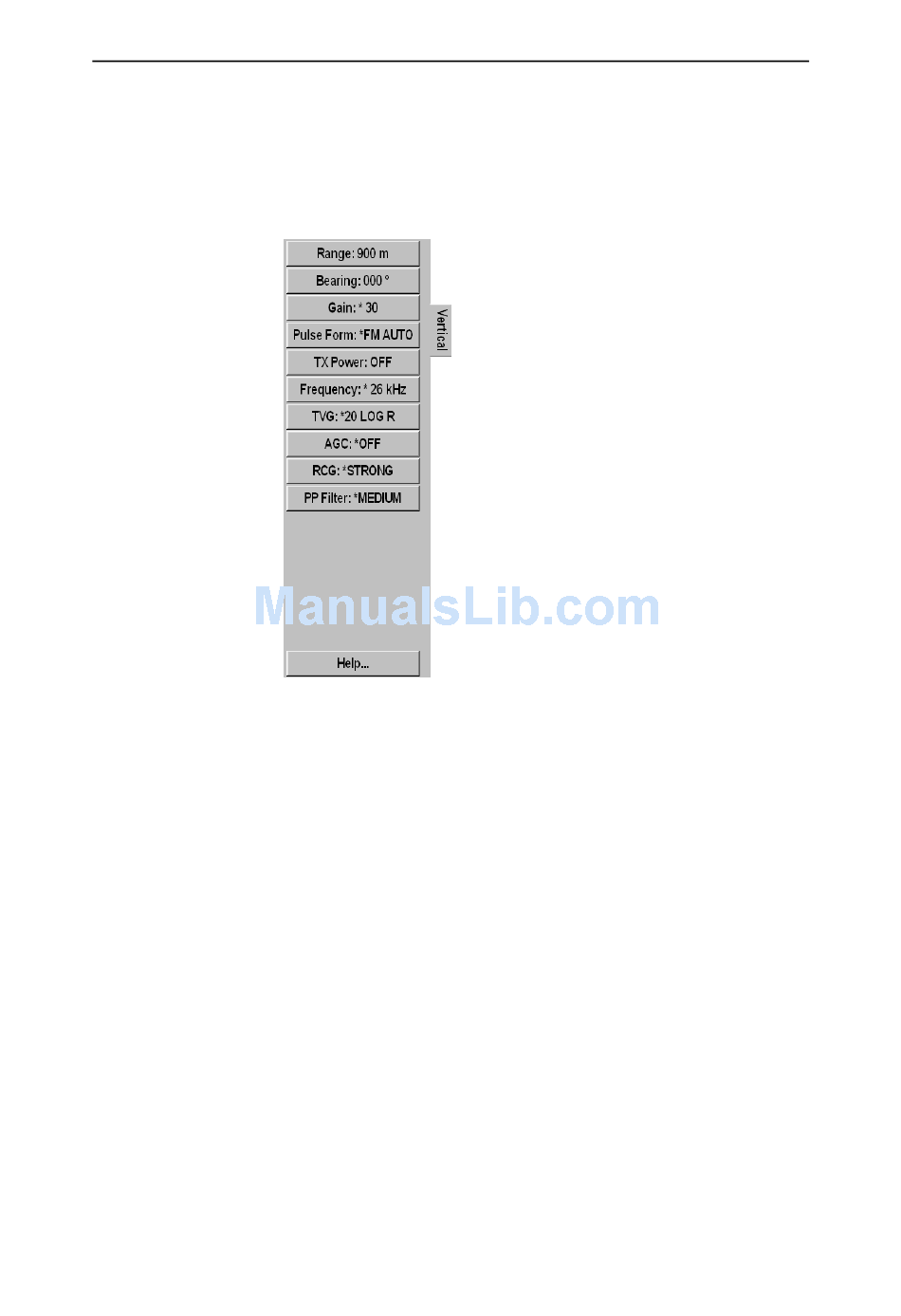

Menu description
Menu buttons
• : Select the range for the vertical presentation.
Range
(► Range on page 149)
• : Use this function to adjust the bearing. (► Bearing
Bearing
(Vertical) on page 117)
• : This setting controls the amplification of the received
Gain
echoes in the vertical presentation. If you activate the
(Automatic Gain Control) function, this gain setting is
influenced. (► Gain on page 132)
• : Use this function to select the form of the
Pulse Form
transmitted pulse. This could either be FM (Frequency
modulation) with different pulse lengths and number of
frequencies, or CW with different pulse lengths. (► Pulse
Form on page 147)
• : This button controls the transmission power.
TX Power
(► TX Power on page 177)
• : On the SX90 you can alter the sonar's transmission
Frequency
frequency. This is very useful to eliminate interference from
other equipment on board, or from other vessels in the vicinity.
(► Frequency on page 131)
The menu is only shown in modes
Vertical
with a vertical slice function. All relevant
settings, except the
TX Power
selected separately for the vertical modes
independent of the horizontal settings.
When any vertical setting is selected and
defined in one mode, the setting will be
applied to all vertical modes.
Menu descriptions
, can be
AGC
85
