• : Displays an arrow drawn from the Compass
Wind Marker
Card pointing towards the centre of the display, shows the
current wind direction if a suitable sensor has been connected
to the sensor.
• : Displays the selected range of the vertical slice
Vertical Ring
as a full circle in the horizontal presentation.
• : Displays horizontal dotted lines used to
Depth Dividers
visualize the depth steps in the vertical slices.

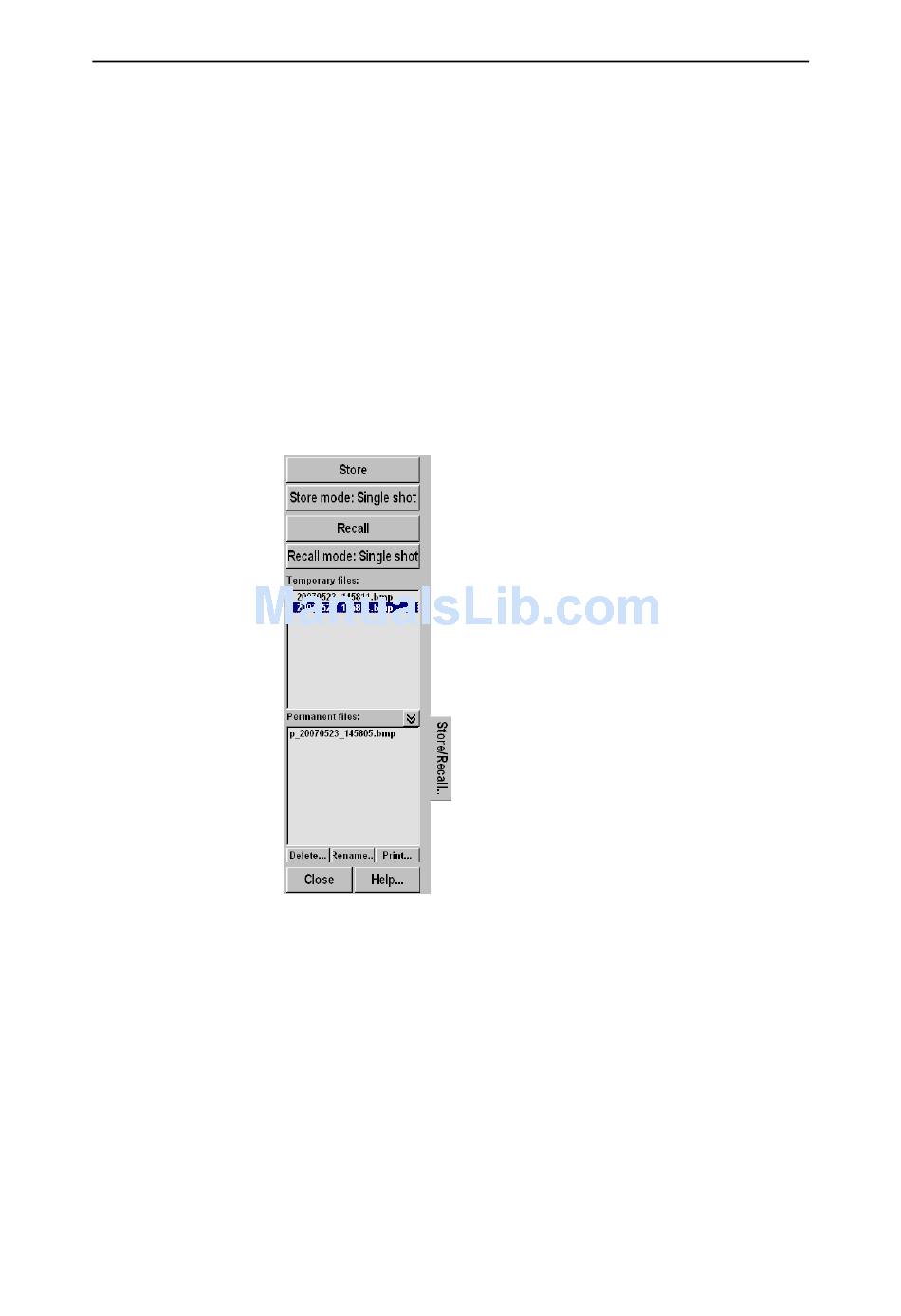

Store/Recall menu

Menu description
Menu buttons
• : This is the "record" button to start the storage sequence.
Store
(► Store on page 165)
• : Allows you to decide what to store; single
Store Mode
display pictures or a sequence or pictures. (► Store Mode
on page 166)
• : Retrieves the stored picture. (► Recall on page 152)
Recall
• : Allows you to decide what to recall. (► Recall
Recall Mode
Mode on page 153)
• : This text field displays the list of current
Temporary files
temporary files. These will be deleted when you switch off
the sonar.
The menu is activated by the
Store/Recall
button in the
Store/Recall
This menu is used to store single display
pictures or a sequence or pictures. The
stored pictures can easily be recalled for
evaluation or comparing schools. For
additional information, see Setup menu
on page 89 and Storage procedures on
page 45.
menu.
Setup
