Colours

The parameter dialog opens when you click the
Colours
button in the
Display
The colour strength of the echo presentation can be selected with
three different colour scales. Under normal conditions, normal
colours will give the best dynamic in the echo presentation, while
strong colours are preferred for weaker echoes. Do not confuse
this parameter with the

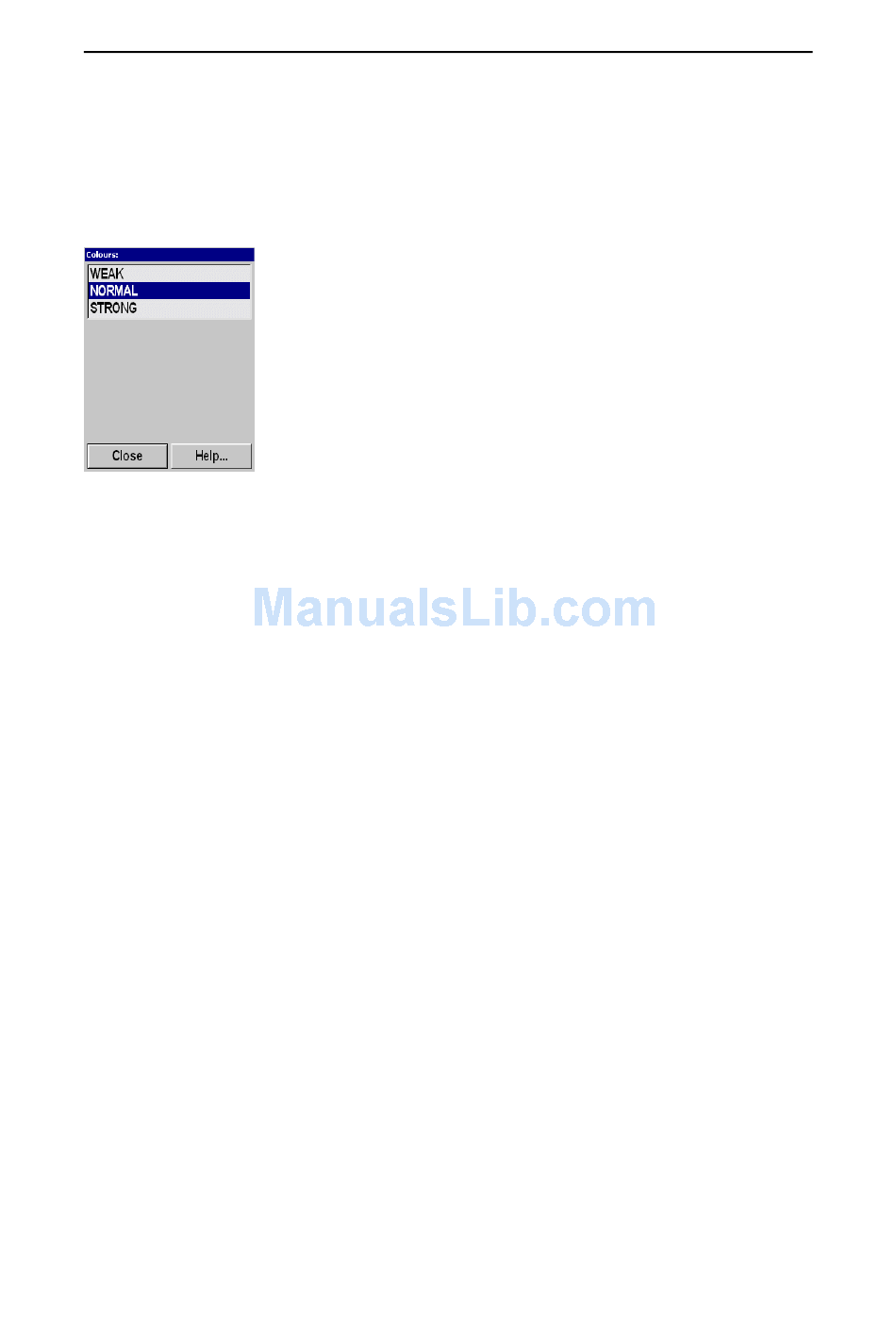

The following options are available in the
dialog:
• : Click to use weaker colours on the sonar presentations.
Weak
• : Click to use normal colours on the sonar
Normal
presentations.
• : Click to use strong colours on the sonar presentations.
Strong
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
Display menu on page 88
Colour Threshold on page 118
menu.
setting.
Colour Threshold
Parameters
Colours
parameter
Colours
