The menu structure

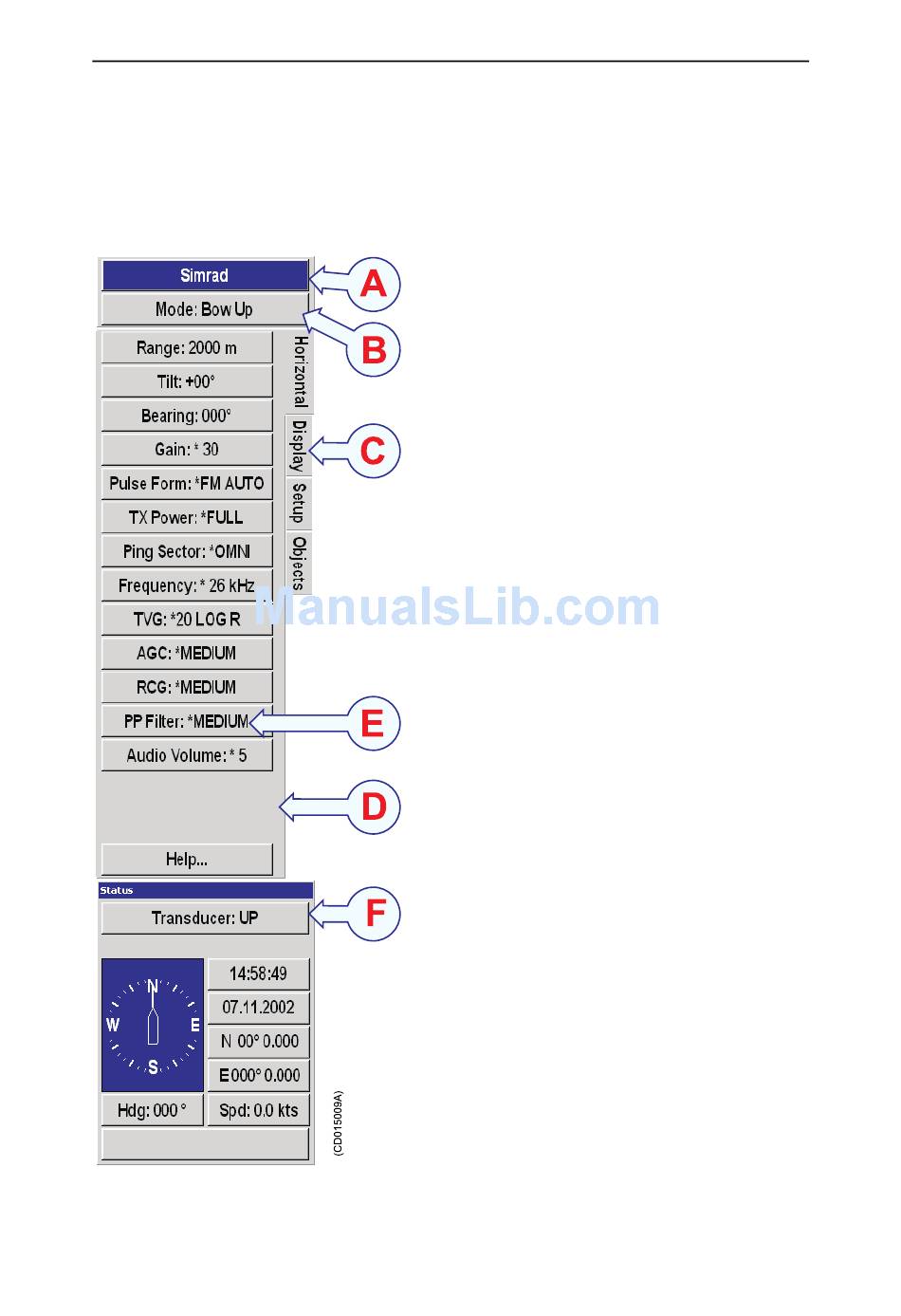

The menu on the right hand side of the sonar display contains
several different buttons, tabs and parameter dialogs.
The following elements are in use on the menu:
A
B
C
D
E
F
: This field simply states the
Sonar type
name of the sonar.
: Click here to change display mode.
Mode
If you click on the middle of the button
you will open a dedicated menu for mode
selection. If you click on the right or left
side of the button you can scroll through
the available modes.
: Click on a tab to bring forward the
Tab
menu. In this example, when you click on
the tab, you will open the
Display
menu.
: This is the body of the menu. Each
Menu
menu holds one or more buttons.
: Click on a button to change the
Button
applicable parameter. If you click on the
middle of the button you will normally
open a dedicated parameter dialog for
parameter selection. If you click on the
right or left side of the button you can
scroll through the available choices.
: When you click a button,
Parameter dialog
the relevant parameter dialog opens at
the bottom of the menu. Each parameter
dialog holds one or more buttons or menus.
To close a parameter dialog, click the
button. Most dialogs provide a
Close
button for access to the on-line help. In
this example you can see the
which is replaced when a parameter dialog
is opened.
Display
Help
dialog,
Status
