307670/D
Operator Alarms menu
Menu description
Menu buttons
•
: Press this button to acknowledge the selected
Ack(knowledge)
message
•
: Press this button to delete the selected message.
Delete
•
: Click this button to close the menu.
Close
•
: Click to open the on-line help system.
Help
The
Operator Alarms
from the
button in the
Op Alarms
. (► Message Bar on page 138)
Bar

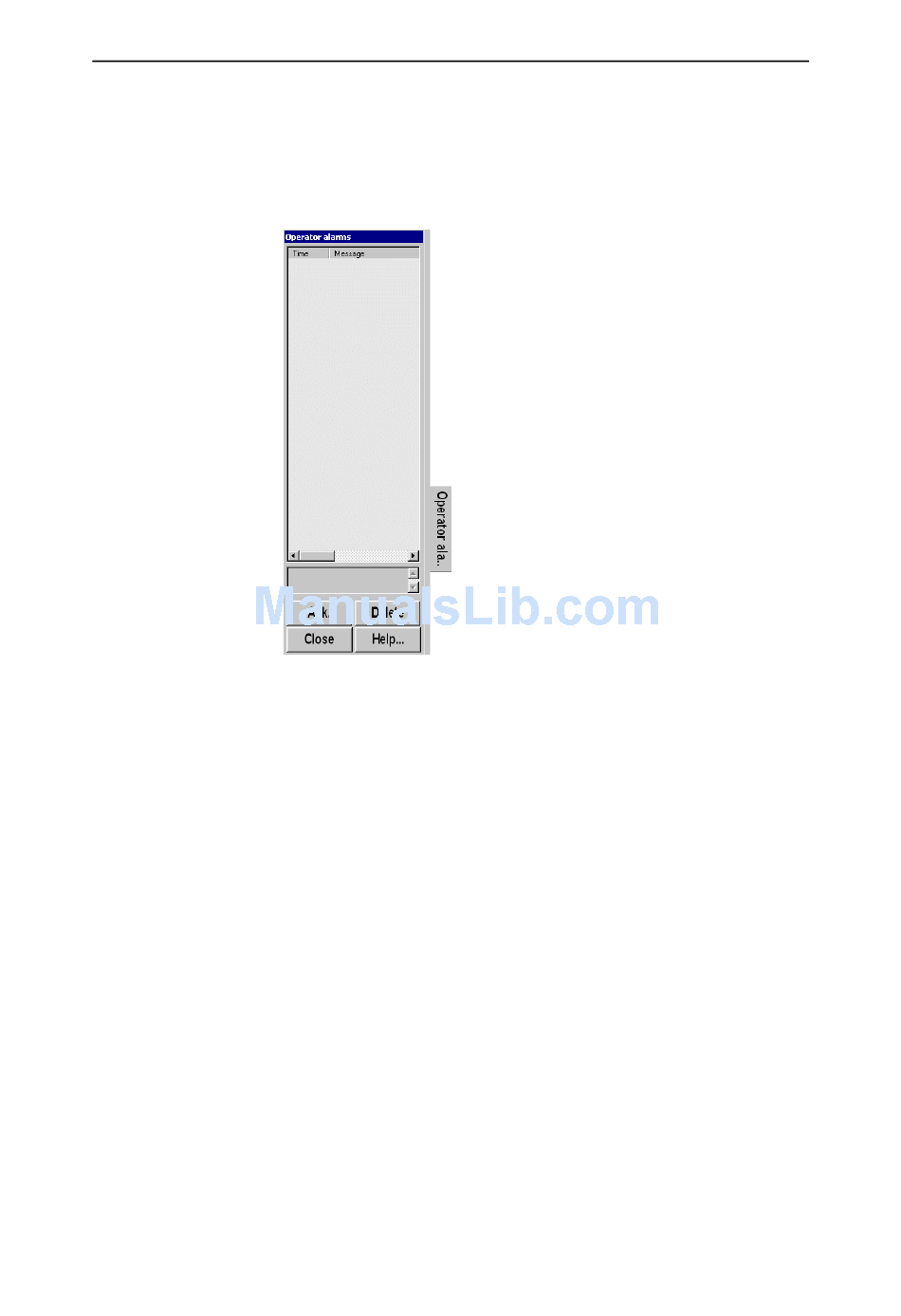

The menu displays the operator alarms
issued by the sonar. Each alarm is
identified with time of issue and a
heading. Additional information is
found in the small text field below the
message list. The top of the message
list with the most recent messages is
always displayed when the dialog is
opened. Acknowledged messages are
displayed in grey. Use the cursor and
select individual messages with the
button on the Operating Panel. For
more information, see 'Cursor' field on
page 76 and Message Bar on page 138.
For more information about the
button, see Operating Panel 'Cursor'
field on page 76.
Menu descriptions
menu is activated
Message
Select
Select
105
