Mode - Simrad SX90 - REFERENCE MANUAL REV D Reference Manual

Simrad SX90
140

Mode

The parameter dialog opens when you click the
Mode
button on the top of all menus.

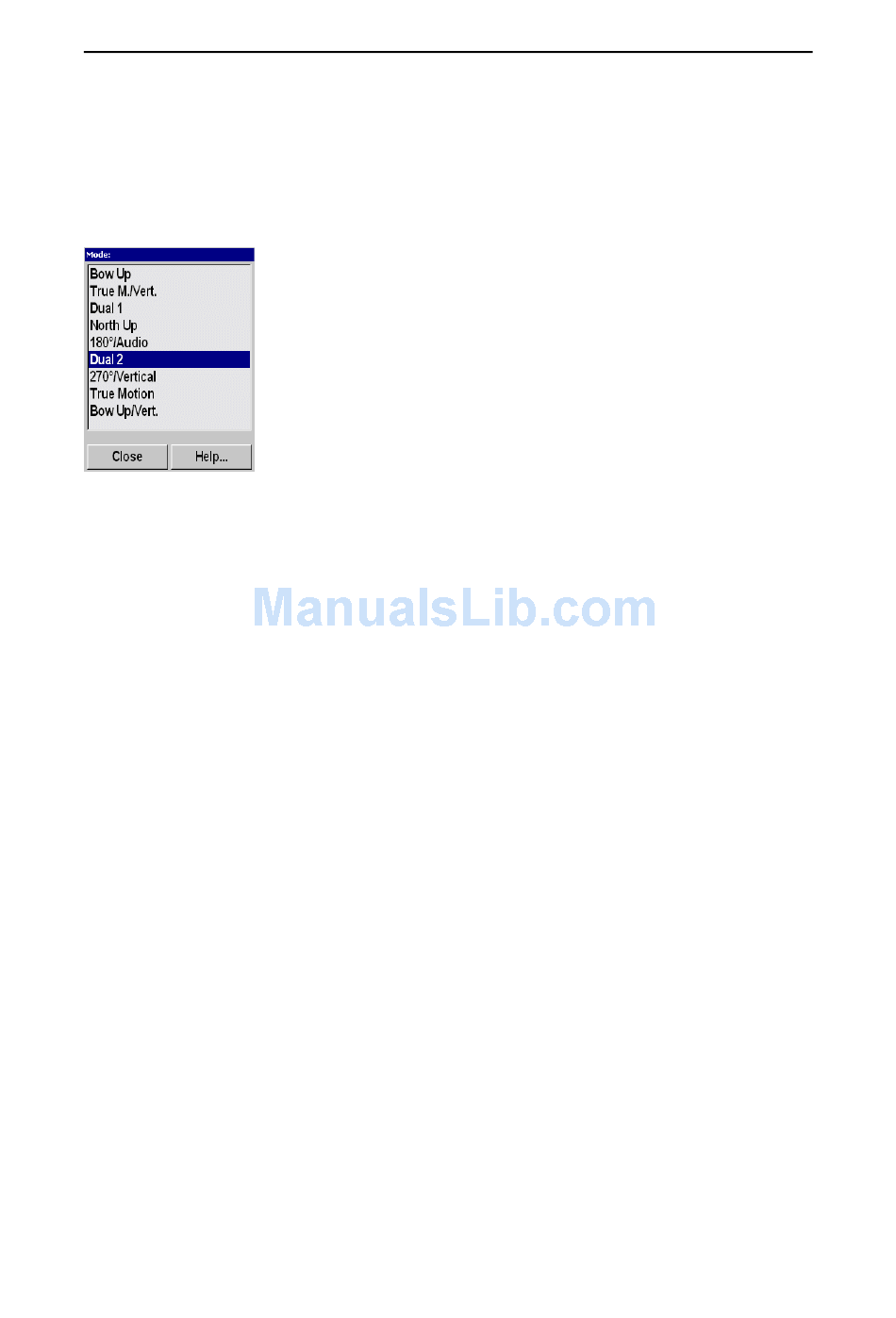

This parameter dialog is used to select display mode. It will
automatically provide a selection between the modes currently
available on the sonar.
The following options are available in the
• : Click to select display mode.
[Mode]
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
The various display modes are described in the Display Modes
chapter.
The modes can also be selected with the four
the Operating Panel. The various modes to activate using those
buttons are controlled by the
Related topics
Display modes on page 58
Sort Modes menu on page 97
Operating Panel 'Mode' field on page 75
parameter dialog:
Mode
Mode
menu.
Sort Modes
Mode
buttons on
307670/D
