Bow up/Vertical
62
When Bow up/Vertical mode is selected, the picture is divided
into three sections; where the left side is a bow-up presentation
similar to the Bow up presentation previously described. The
upper part on the right hand side is a Catch data presentation,
while the lower part is a Vertical slice presentation.

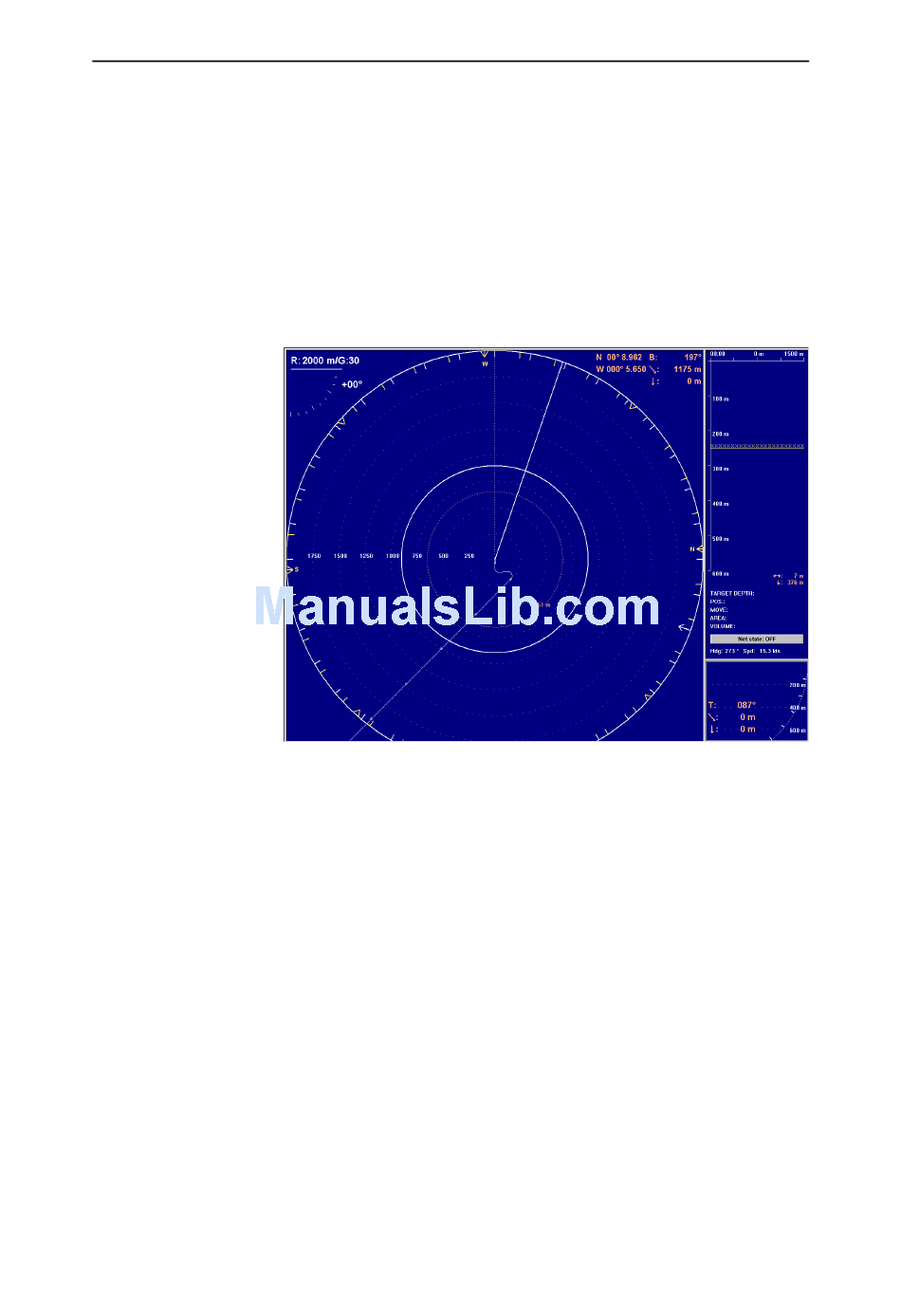

Figure 17 "Bow up/Vertical" display mode
307670/D
