Active menus

307670/D
The active menus are those relevant for the different operational
modes. The menus are shown with vertical selector tabs on the
right hand side, and each menu can easily be selected using the
trackball and the
Select
have access to on-line help through a

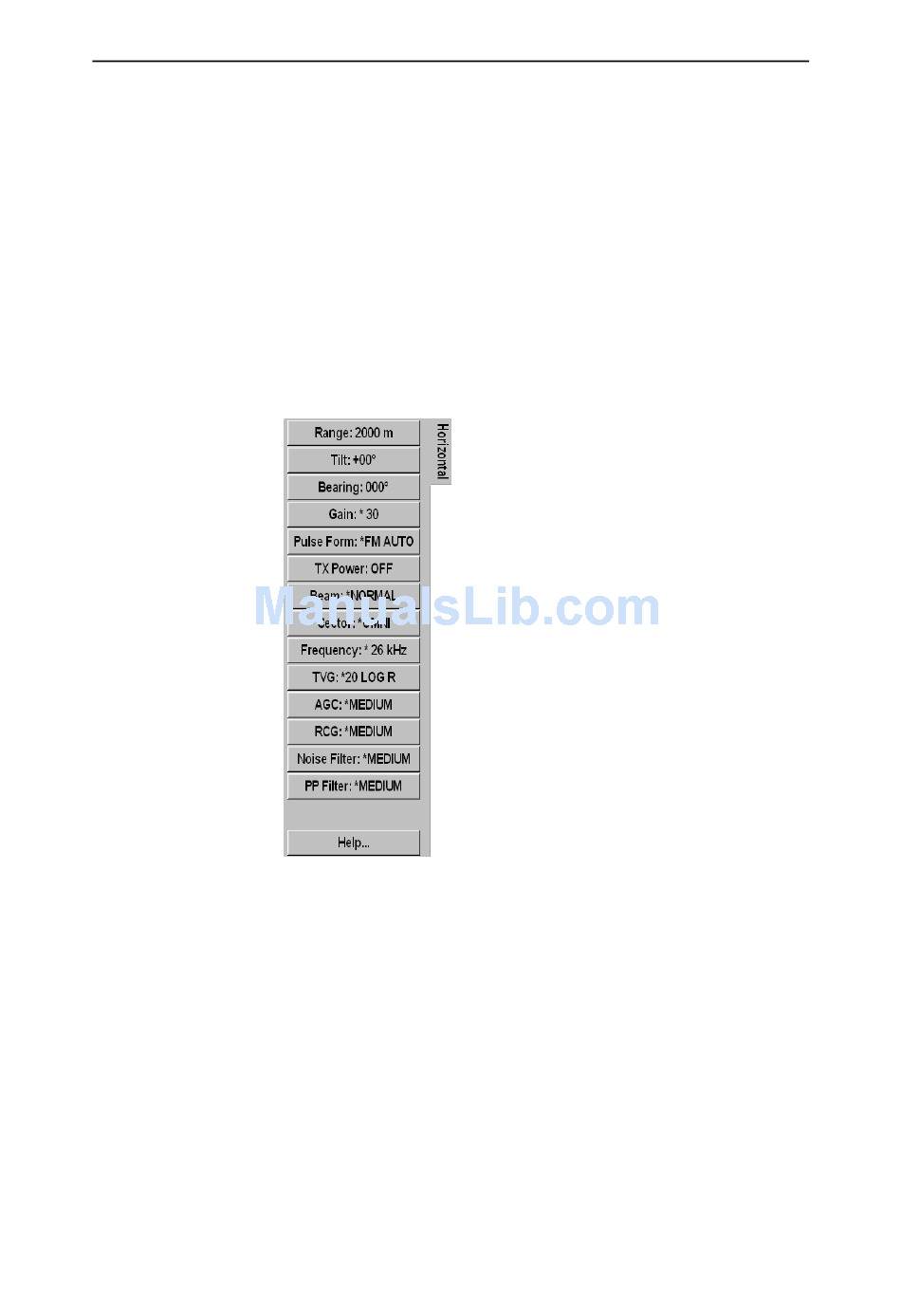

Horizontal menu

Menu description
Menu buttons
• : Select the range for the horizontal presentation.
Range
(► Range on page 149)
• : Select the sonar beam's vertical angle. (► Tilt on
Tilt
page 168)
• : This button controls the direction of the white
Bearing
bearing line on your sonar picture. This line may be used
to control the direction of the vertical slice. (► Bearing
(Horizontal) on page 116)
• : This setting controls the amplification of the received
Gain
echoes in the horizontal presentation. If you activate the
(Automatic Gain Control) function, this gain setting is
AGC
influenced. (► Gain on page 132)
button on the Operating Panel. All menus
button.
Help
The menu is used to control the
Horizontal
horizontal presentations. The parameters
chosen are present in all display modes.
When a horizontal parameter setting is
selected and defined in one mode, the
chosen settings will automatically be
applied to all modes. The
menu is identical to the
It is used during Dual 1 and Dual 2
operations.
Menu descriptions
Horizontal 2
menu.
Horizontal
83
