Simrad SX90
104
one or more unread messages exists, the
buttons are yellow, while the
Alarm
buttons are red.

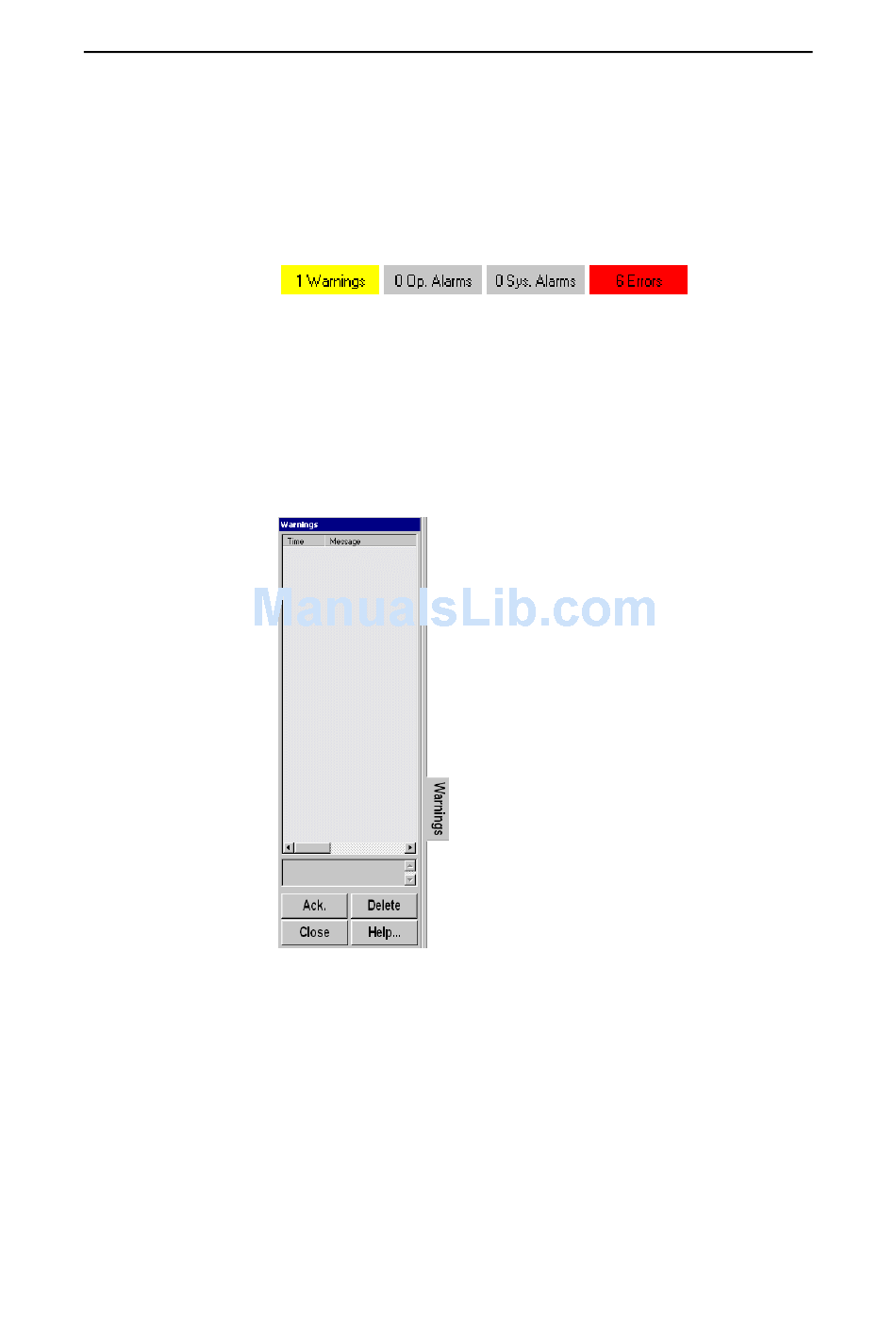

Figure 27 The Message Bar buttons
Related topics
• Message Bar on page 138

Warnings menu

Menu description
Menu buttons
• : Press this button to acknowledge the selected
Ack(knowledge)
message
• : Press this button to delete the selected message.
Delete
• : Click this button to close the menu.
Close
• : Click to open the on-line help system.
Help
Warning
System Alarm
The menu is activated from
Warnings
the button in the
Warnings
(► Message Bar on page 138)
The menu displays the warning messages
issued by the sonar. Each warning
is identified with time of issue and a
heading. Additional information is
found in the small text field below the
message list. The top of the message
list with the most recent messages is
always displayed when the dialog is
opened. Acknowledged messages are
displayed in grey. Use the cursor and
select individual messages with the
button on the Operating Panel. For
more information, see 'Cursor' field on
page 76 and Message Bar on page 138.
For more information about the
button, see Operating Panel 'Cursor'
field on page 76.
and
Operational
and
Error
.
Message Bar
Select
Select
307670/D
