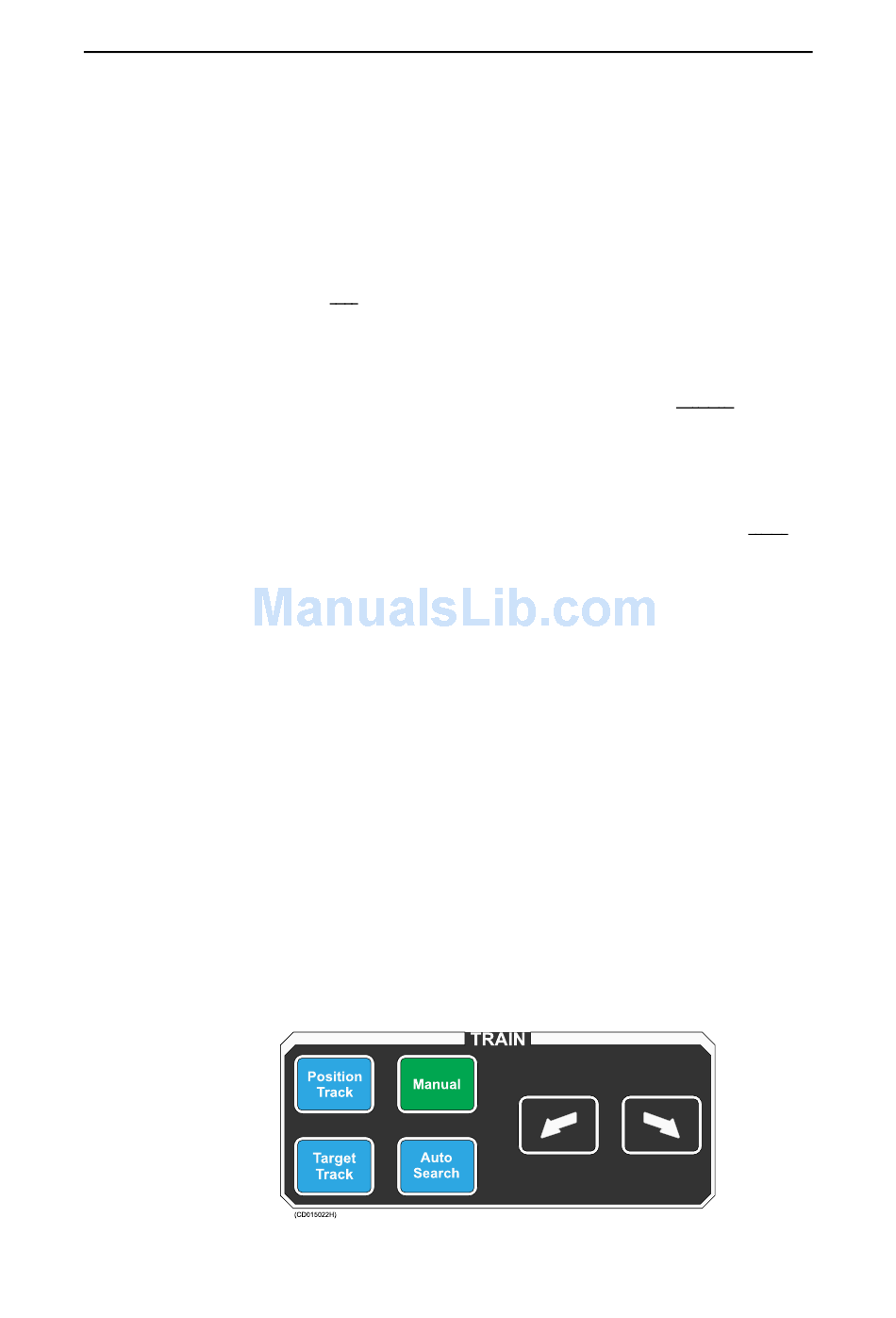

'Train' field

307670/D
the cursor may be used to activate the menu field by moving it to
the left or right extremes of the screen. If you move the cursor
outside the menu field it will hide the menu.
Select
The button is used to execute a selection. This corresponds
Select
to the left button on a standard computer mouse.
View
The button activates the
View
display window. This button corresponds to the middle button
on a standard computer mouse.
Object
The button activates the
Object
selected display window. This button corresponds to the right
button on a standard computer mouse.
Trackball
The trackball controls the cursor, and allows you to move the
cursor on the sonar display. The cursor changes appearance in
relation to its location on the screen.
• An Orange cursor in the echo field.
• An Arrow in the menu field.
• A Negative or Positive sign at each end of the menu buttons.
The negative or positive sign indicates the direction in which
the corresponding parameter values will be changed when
the button is pressed.
Select
The audio channel is displayed as a continuous white line. It
can be trained either manually or automatically. The bearing
angle is displayed in the upper right-hand corner of the display,
indicated relative to the bow.
Operating panel
pop-up menu for the selected
View
pop-up menu for the
Object
77
