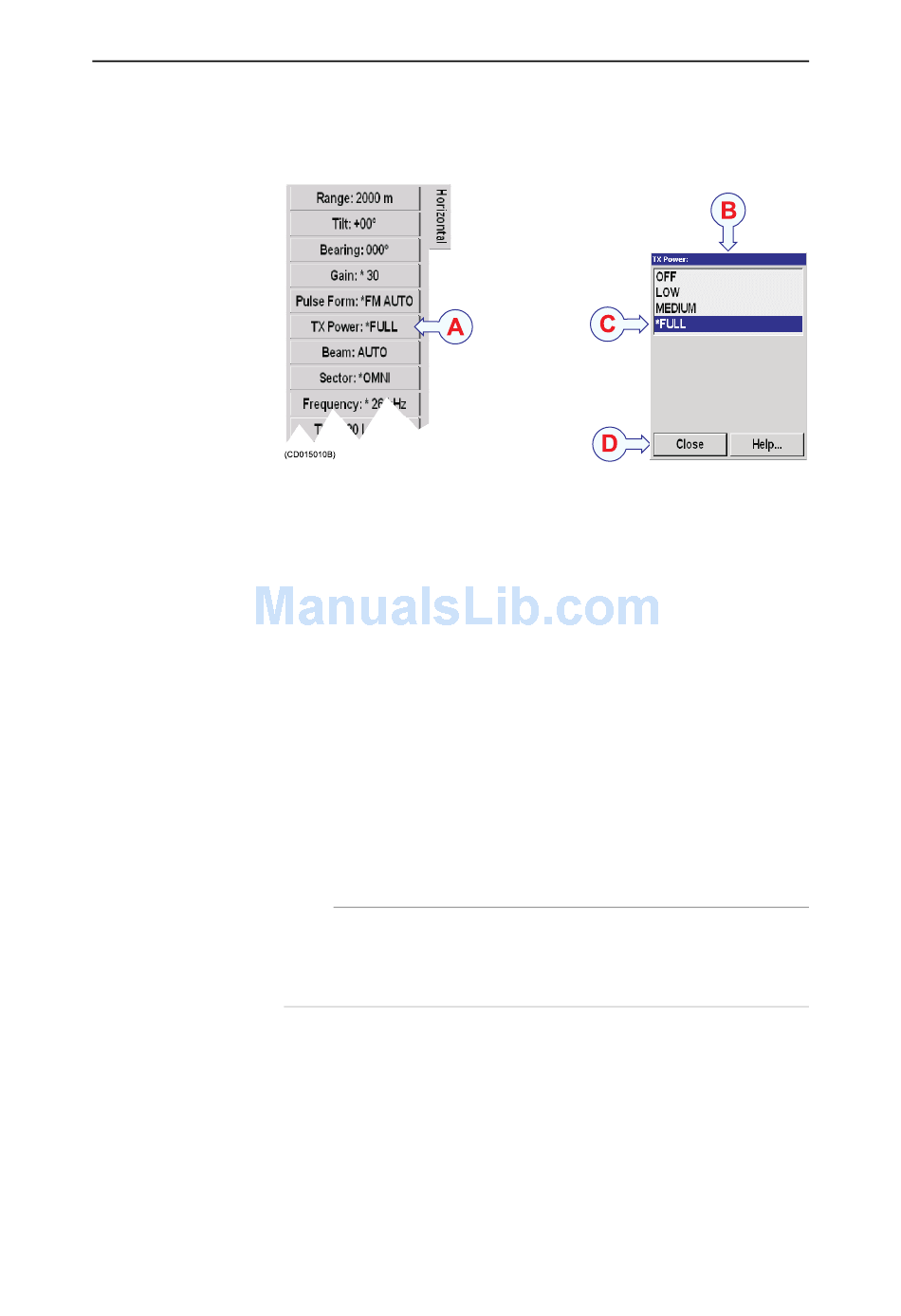

Figure 8 Changing a parameter value
Move the cursor to the middle of the menu button (A).
1
Observe that the cursor changes its shape to a menu symbol.
2 Press the button on the Operating Panel.
Select
Observe that the corresponding parameter dialog (B) opens
3
at the bottom of the menu.
4 Move the cursor down to the dialog, position the cursor
over the requested parameter value (C), and press the
button again.
5 Observe that the change you have requested takes immediate
effect on the sonar.
• This makes it easy to test the effect of each parameter
setting. Note however that transceiver related parameters
will first be operational in the next ping.
6 Move the cursor down to the
the button again.
Select
7 Observe that the parameter dialog closes.
Note
In this manual, the phrase "Click the button" means that you
shall position the cursor over the menu button, and then press
the button on the Operating Panel.
Select
Certain parameter settings are identified with an asterisk (*). This
symbol indicates the default setting known to perform well under
normal conditions. If you get "lost" in the parameter settings, the
function will bring up these normal parameters.
Default settings
The function is available on the
Default setting
dedicated parameter dialog is used.
In the Simrad SX90 sonar, all parameters are stored. This
function will cause the sonar to remember all the selected
parameter settings, even when the sonar is switched off.
button (D), and press
Close
menu, and a
Setup
Select
