Simrad SX90
True motion/Vertical
66
When True motion/Vertical mode is selected, the picture is
divided into three sections; where the left side is a True motion
presentation similar to the true motion presentation previously
described. The upper part on the right hand side is a Catch data
presentation, while the lower part is a Vertical slice presentation.

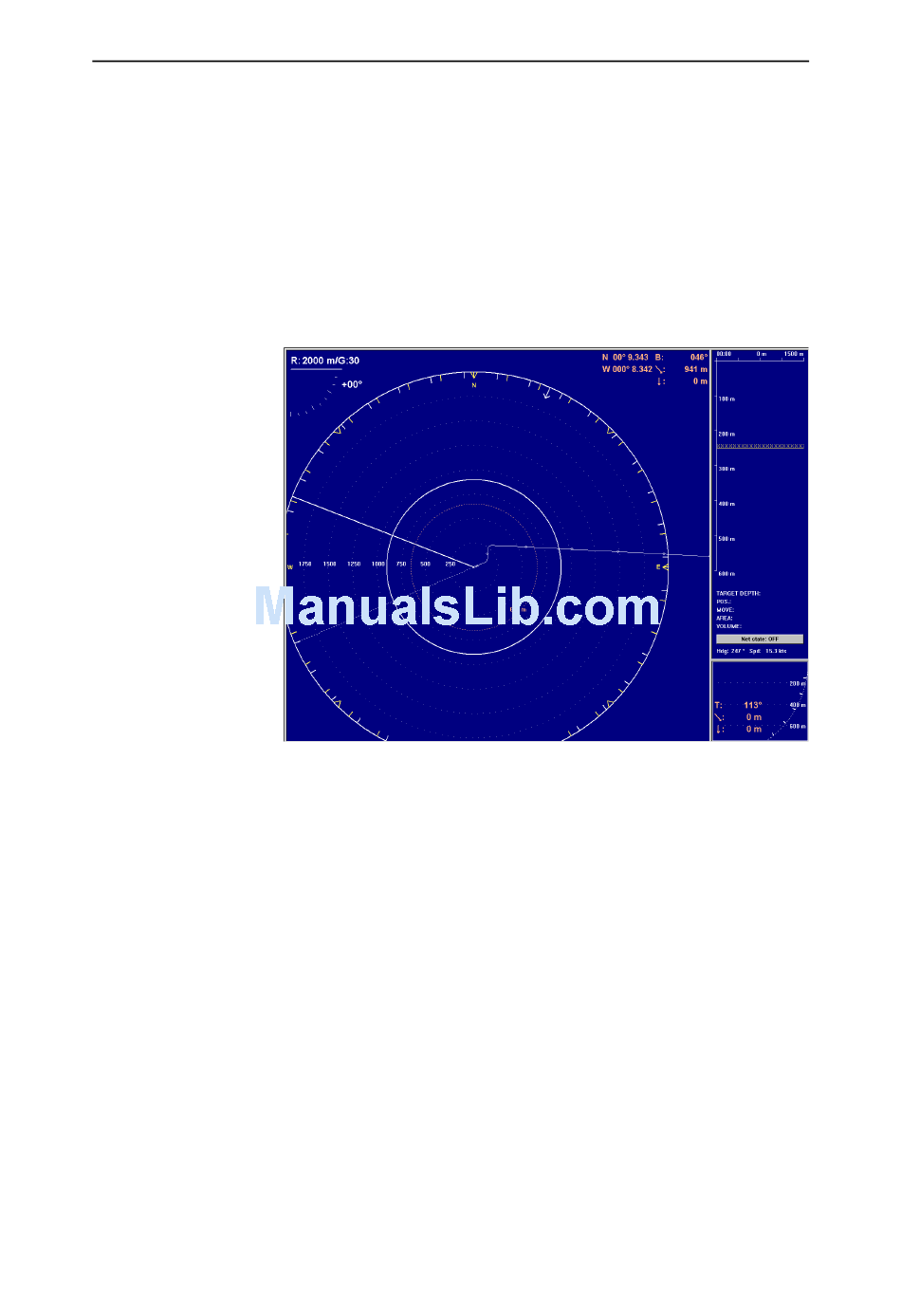

Figure 21 "True motion/Vertical" display mode
307670/D
