Slant Range - Simrad SX90 - REFERENCE MANUAL REV D Reference Manual

307670/D

Slant Range

The button is located in the
Slant Range
in turn is opened from the
This is a toggle switch which allows you to choose between Slant
Range and True Range.
• : This is the distance which the vessel must sail in
True Range
order to come on top of the target.
• : This is the distance to the target measured along
Slant Range
the tilt angle.

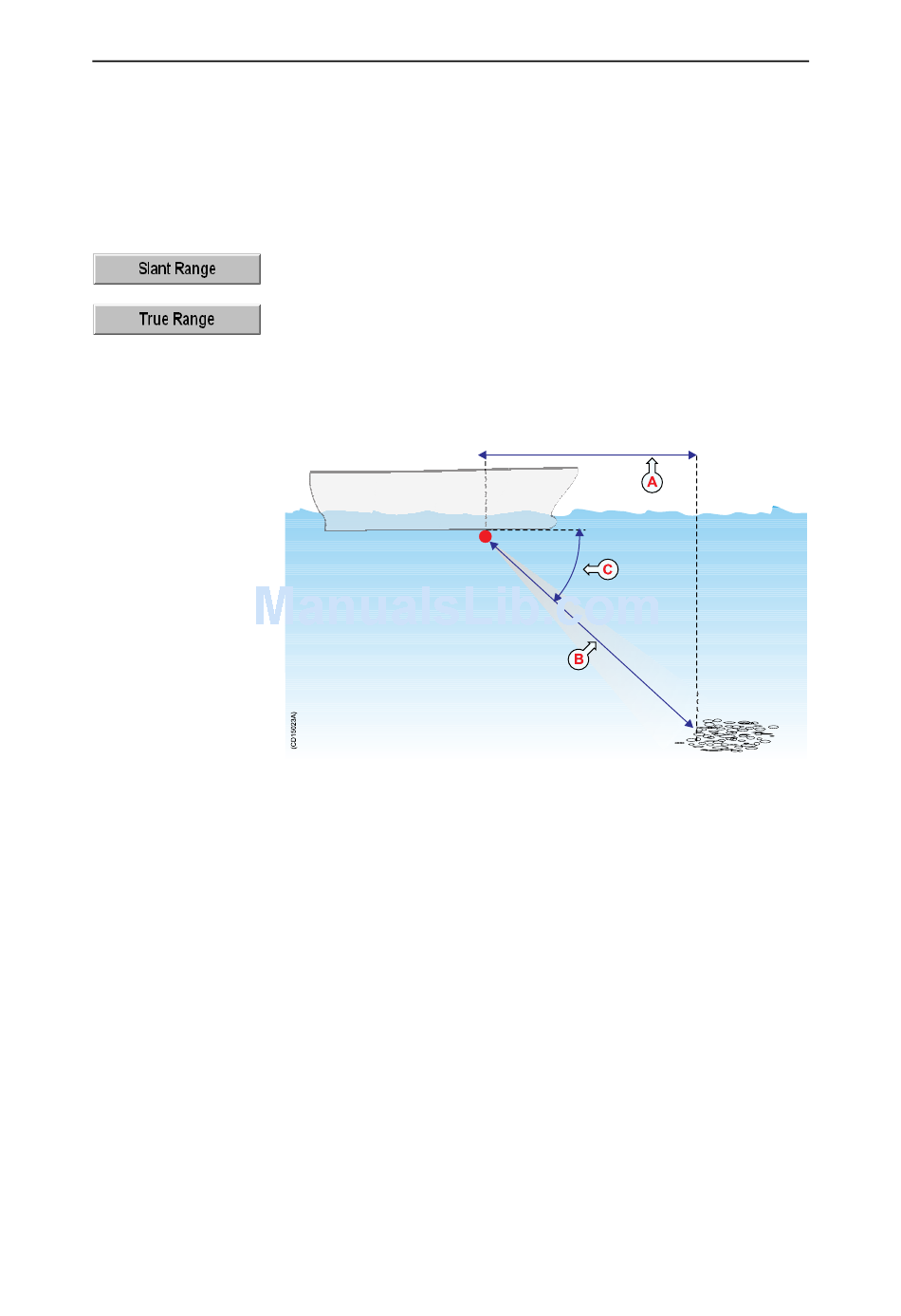

Figure 30 True range (A), slant range (B) and tilt angle (C)
Related topics
Cosmetics menu on page 93
True Range on page 175
