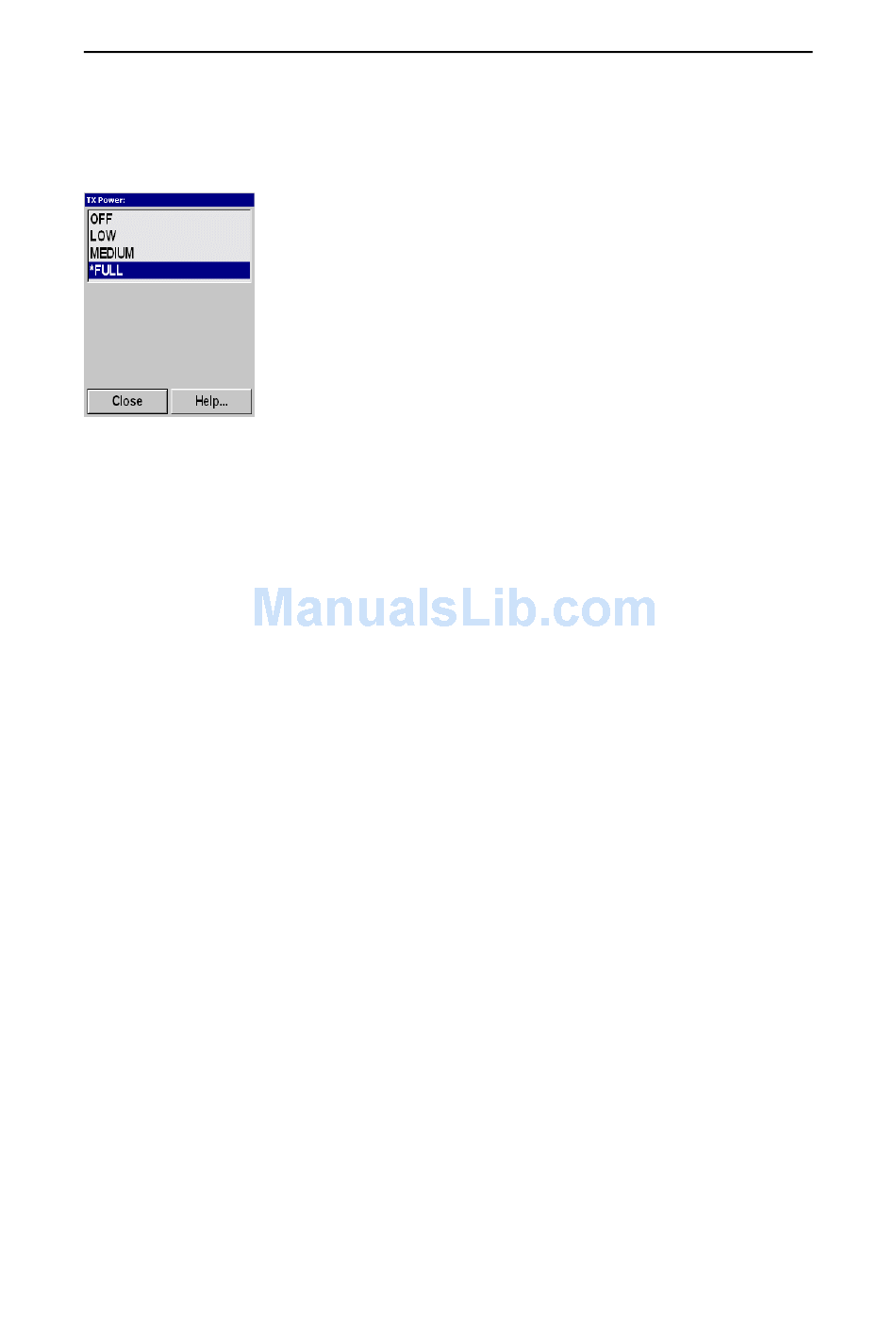

TX Power

The parameter dialog opens when you click the
TX Power
button in the
Power Horizontal
Dialog description
This parameter dialog is used to select the transmitter output
power. Note that this setting is common for all the menus. Thus,
if the power is changed in one menu, it will automatically also
be changed in all other menus. The transmitter operates with
four different power settings.
Options
• : Click to switch the transmission power off. The sonar
Off
will operate in passive mode
• : Click to select low output power.
Low
• : Click to select medium output power.
Medium
• : Click to select full output power.
Full
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
• Horizontal menu on page 83
• Vertical menu on page 85
• Vertical 180 menu on page 86
, and
Vertical Vertical 180
Parameters
TX
menus.
177
