Ruler

To create a ruler, open the
button on the Operating Panel (or the right mouse button),
Object
and select in the
New ruler
The parameter dialog opens when you position the cursor
Ruler
on top of a ruler, and then press the
Panel (or the left mouse button).

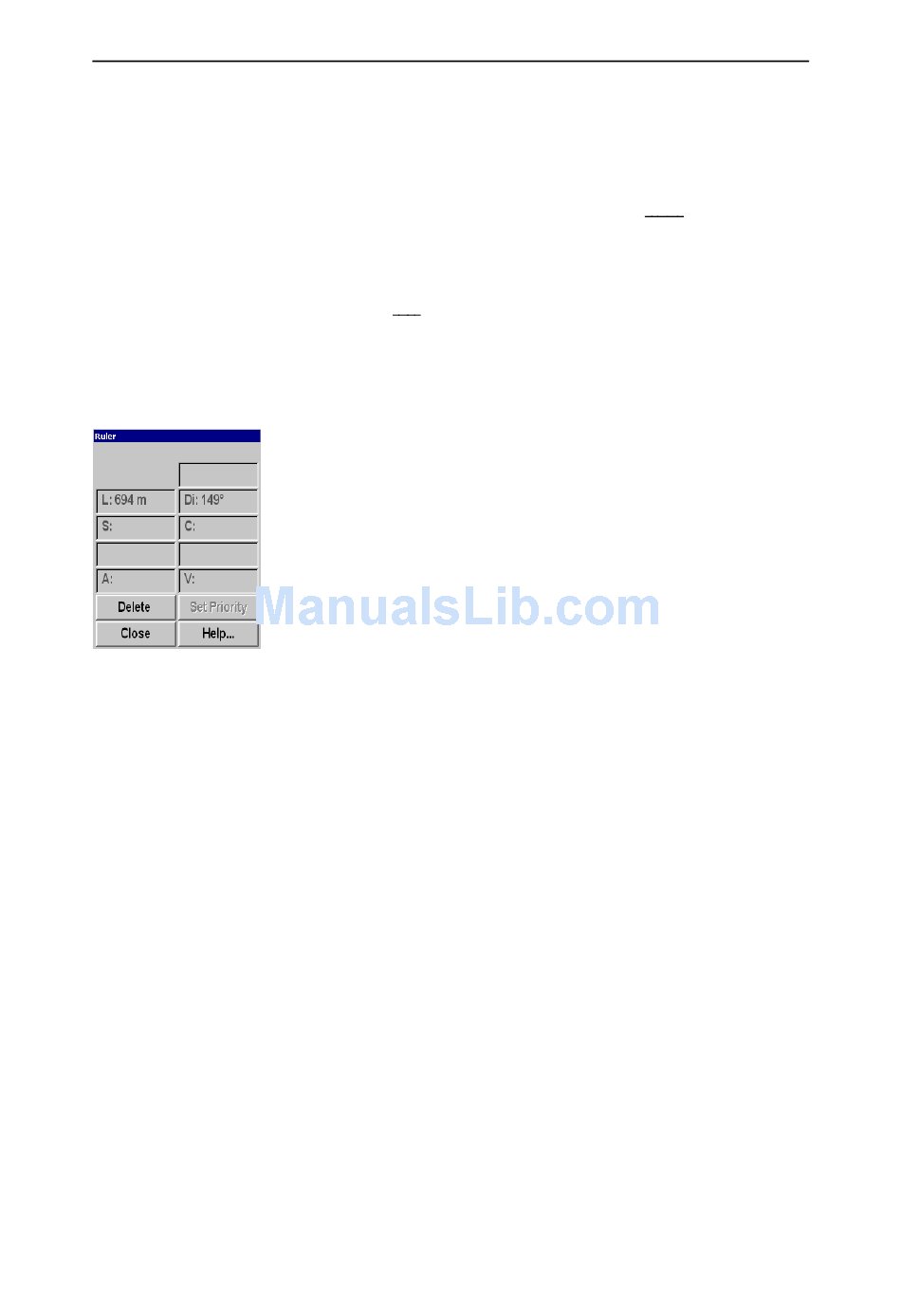

This dialog provides information about the currently selected
ruler, its length and angle. The same information is also provided
next to the ruler on the display.
Options
: This read-out provides the length of the ruler.
Length (L)
: This read-out provides the direction of the ruler
Direction (Di)
in degrees.
: Click to delete the currently selected ruler.
Delete
: Not used.
Set Priority
: Click to close the parameter dialog.
Close
: Click to access the on-line help.
Help
Related topics
Object pop-up menu on page 99
Operating Panel 'Cursor' field on page 76
pop-up menu by pressing the
Object
pop-up menu.
Object
button on the Operating
Select
