Gear - Simrad SX90 - REFERENCE MANUAL REV D Reference Manual

307670/D

Gear

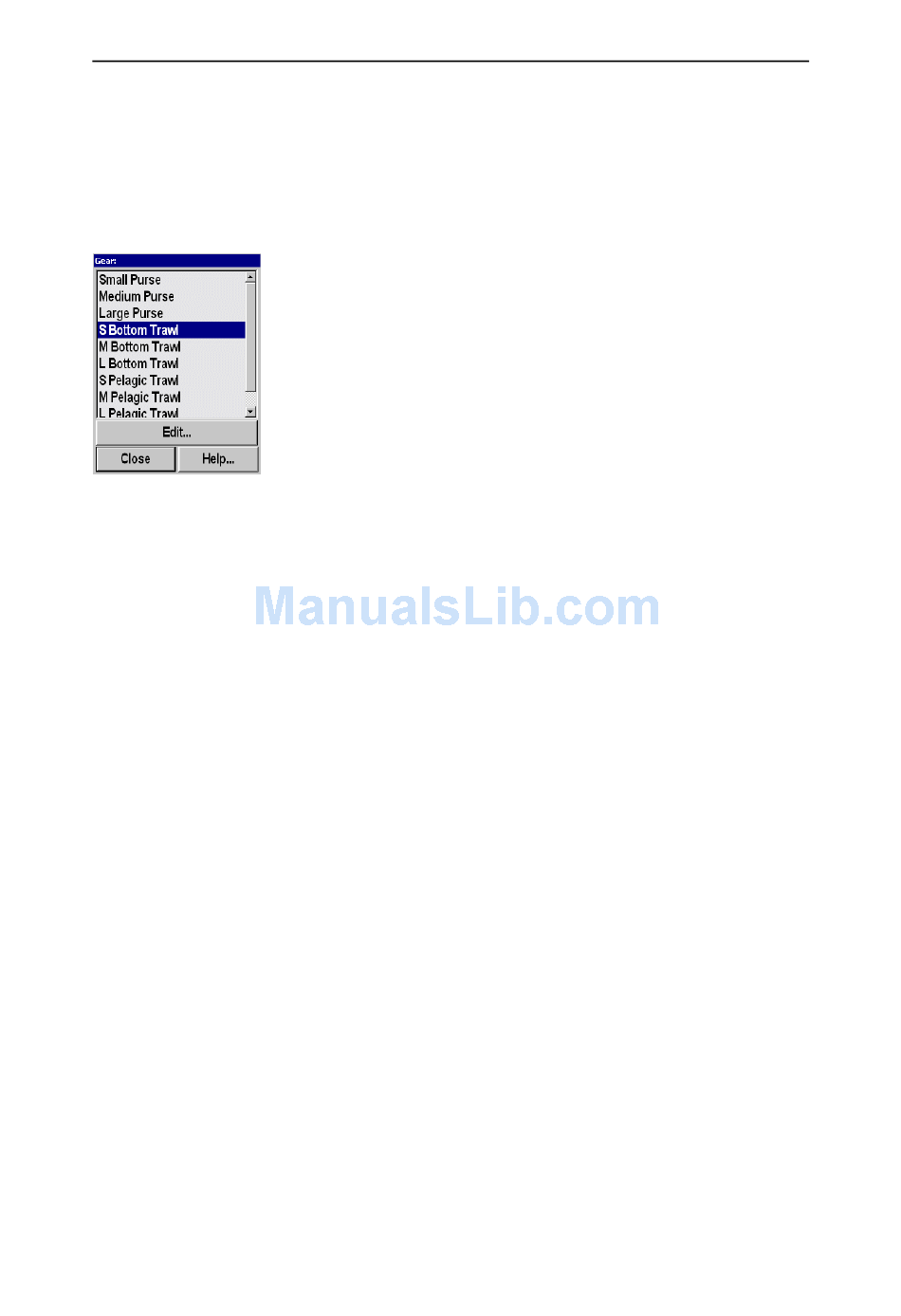

The parameter dialog opens when you click the
Gear
in the menu.
Setup
This dialog is used to select the type of fishing gear you use,
and to get the right size and position of the gear on the sonar
display. If you click the
for three different purse seines, three different bottom trawls, and
three different pelagic trawls.
The following options are available in the
• : Click to select small, medium or large purse.
Purse
• : Click to select small, medium or large bottom
Bottom Trawl
trawl.
• : Click to select small, medium or large pelagic
Pelagic Trawl
trawl.
• : Click to open a dedicated parameter dialog to edit the
Edit
parameters of the chosen gear.
• : Click to close the parameter dialog.
Close
• : Click to access the on-line help.
Help
Related topics
Setup menu on page 89
Edit Gear (Purse) on page 126
Edit Gear (Trawl) on page 127
button you can program the system
Edit
Gear
Parameters
button
Gear
parameter dialog:
133
