Pop-up menus

307670/D

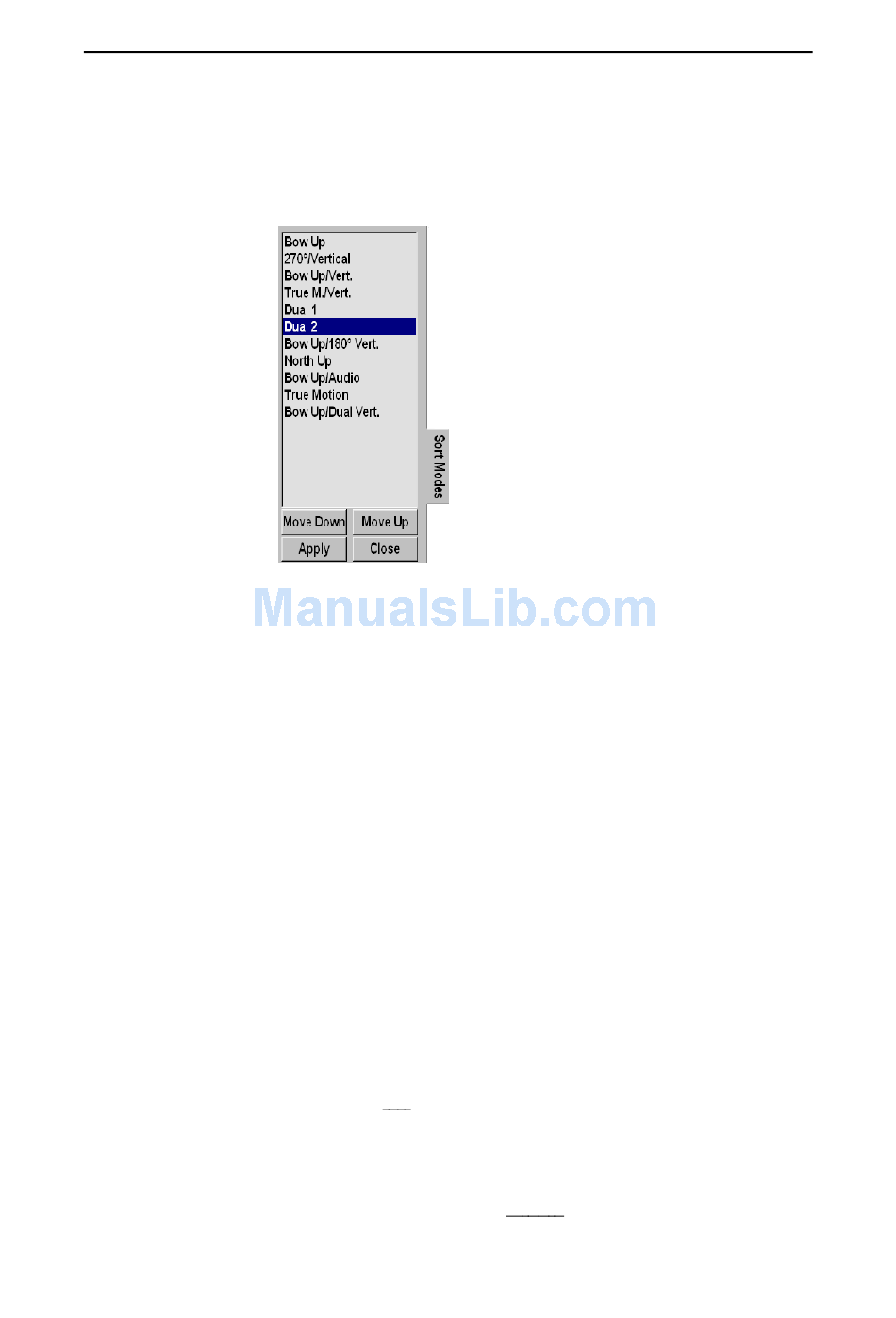

Sort Modes menu

Menu description
Menu buttons
• : Click to move the selected display mode down
Move down
on the list.
• : Click to move the selected display mode up on the
Move up
list.
• : Apply the current list of display modes. The four top
Apply
modes can then be selected using the
Operating Panel.
• : Close the menu.
Close
The pop-up menus are accessed using the
buttons on the Operating Panel, or the middle and right mouse
buttons if an optional computer mouse is installed. Each button
will present a small menu appearing at the cursor's current
location. To make a selection, position the arrow cursor by means
of the trackball. Then, press the
Panel or the left mouse button.

View pop-up menu

The pop-up menu is accessed using the
View
the Operating Panel (or the middle mouse button if an optional
computer mouse is installed).
The menu is activated by the
Sort Modes
button in the
Sort Modes
(► Setup menu on page 89)
This menu is used to select the display
modes to be activated by the four
buttons on the Operating Panel. The
four upper display modes in this menu
will always be the modes selected by the
four buttons in the order they are
Mode
sorted. In order to sort the modes, click
on a mode to select it, and click the
and buttons to move the
Up Move Down
selected mode up or down the list. When
the modes are organized in the requested
order, click the
Apply
setting, and to close the menu.
Close
For additional information, see Mode
procedures on page 39.
Mode
View
button on the Operating
Select
Menu descriptions
menu.
Setup
Mode
Move
button to save the
buttons on the
and
Object
button on
View
97
