(A) Click here to decrease
the parameter value
(B) Click here to increase
the parameter value
(C) Click here to open the
parameter dialog.
307670/D

Control the cursor

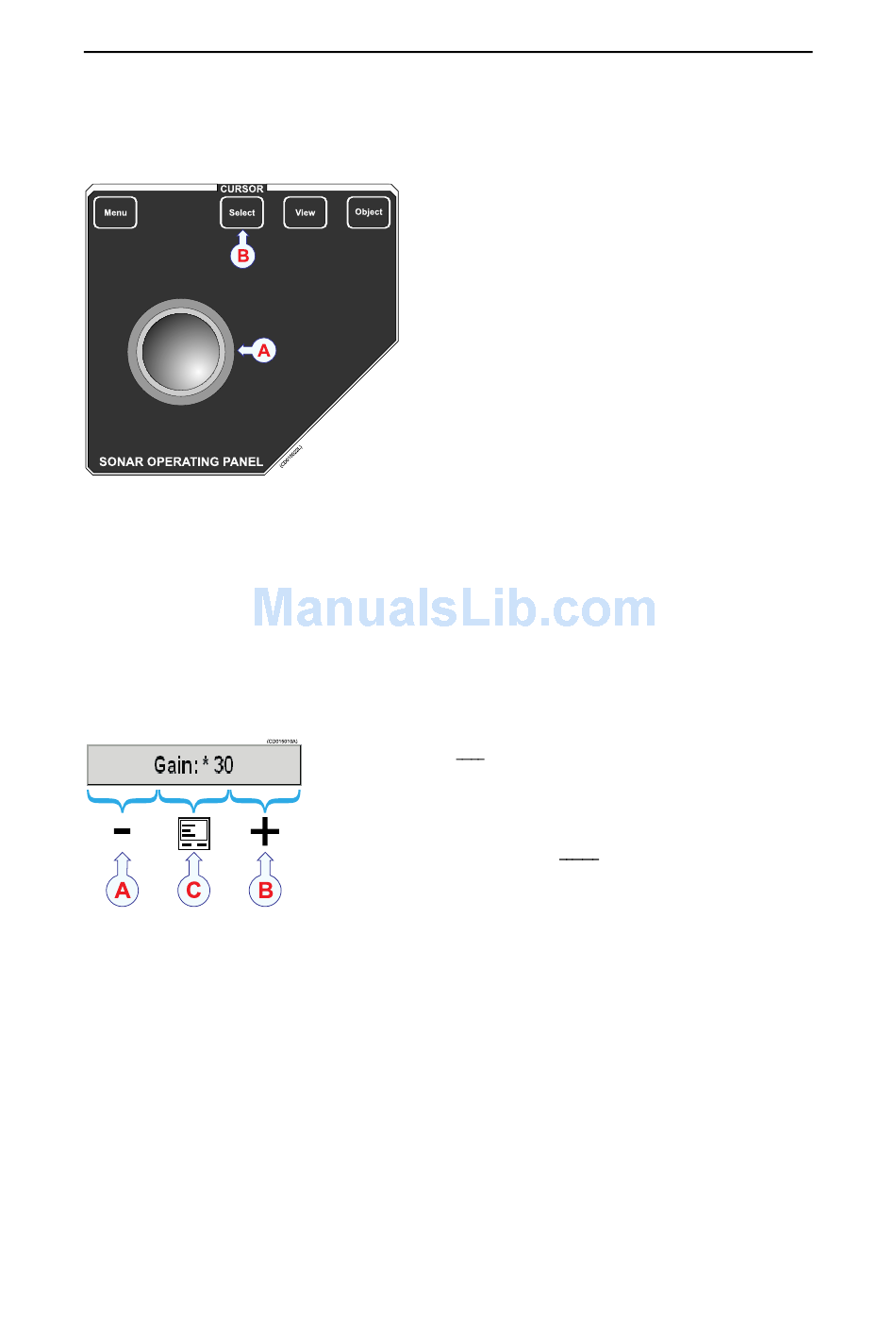

Operate the trackball (A) on the Operating
Panel.
Observe that the cursor moves on the sonar
display, and that it changes its form depending
on its location.
Observe the location of the
Press this button to make a selection.
The
are used to open specific menus.

Menu buttons

Each menu contains several buttons. Each button shows both the
function and the current parameter. The majority of the buttons
in each menu field have three functions:
• You can select a lower parameter value.
• You can select a higher parameter value.
• You can open the applicable parameter dialog.
Use the trackball on the Operating Panel, and position the
cursor over the left side of the button (A). Observe that
the shape of the cursor changes to a "minus" sign. This
means that the value of the parameter will decrease when
you press the
Select
Position the cursor over the right side of the button (B).
Observe that the shape of the cursor changes to a "plus"
sign. This means that the value of the parameter will
increase when you press the
Position the cursor on the centre of the menu button (C).
Observe that the shape of the cursor changes to a "menu"
symbol. This means that the applicable parameter dialog
will open when you press the
appears in the lower part of the menu field.

Changing a parameter value

Observe this generic procedure to change a parameter value.
Once you have gained more experience, and have become more
familiar with the available options, you will select the parameters
directly from the buttons.
and buttons above the trackball
View Object
button on the Operating Panel.
button.
Select
button. The dialog
Select
Getting started
button (B).
Select
27
