Simrad SX90
88

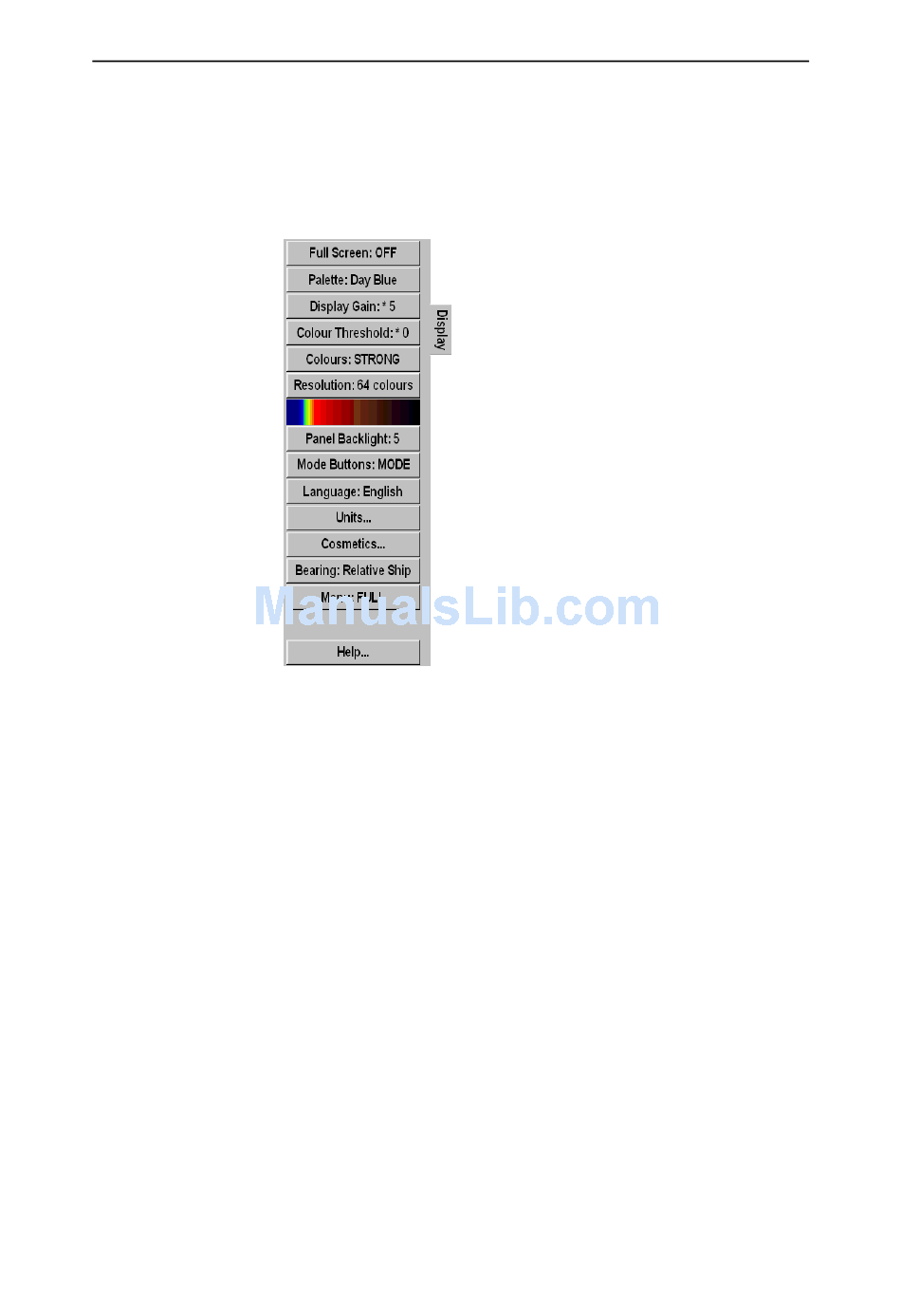

Display menu
Menu description
Menu buttons
•
: Click this button to remove or retrieve the menu.
Full screen
•
: Click this button to choose a presentation colour
Palette
palette to suit your personal preferences. (► Palette on
page 144)
•
: This function controls the amount of echo that
Display Gain
are displayed. Use this control together with
the sonar's sensitivity. (► Display Gain on page 125)
•
: Click this button to control how many
Colour Threshold
colours to use in the echo presentation. (► Colour Threshold
on page 118)
•
: Control how bright colours you wish to use. The
Colours
colour bar in the menu shows the colour range that is
used.(► Colours on page 119)
•
: Select 16 or 64 colours in the display presentation.
Resolution
The chosen resolution is shown in the colour bar below the
button.
•
: This function controls the intensity of the
Panel Backlight
backlight in the Operating Panel. (► Panel Backlight on
page 145)
The
menu is shown in all display
Display
modes, and provides access to parameters
controlling the visual presentation of the
sonar views. Some of the choices on the
menu are simple on/off buttons.
