Cosmetics menu

Menu description
Menu buttons
•
Slant Range/True Range
distance to the current target is calculated: the horizontal
distance, or the distance along the tilt angle. (► Slant Range
on page 161)
• : Displays the current bearing relative to the
Bearing Card
vessel.
• : Displays short yellow lines for every 10th
Compass Card
degree along the outer circle of the sonar view.
• : Displays dotted rings, each with a range
Distance Rings
read-out on the left hand side of the display centre.
• (Variable Range Marker): Displays an adjustable range
VRM
ring with range read-out. It can be used for any type of
distance marking relative to the vessel.
• : Displays a heading marker, a dotted line drawn
Bow Marker
from the bow of your own ship in the same direction as the
vessel's current heading.
• : Allows you to add track lines on your own ship
Track History
symbol. (► Track History on page 170)
• : Displays small circles on the track history of
Minute Marker
the ship, each with one minute apart.

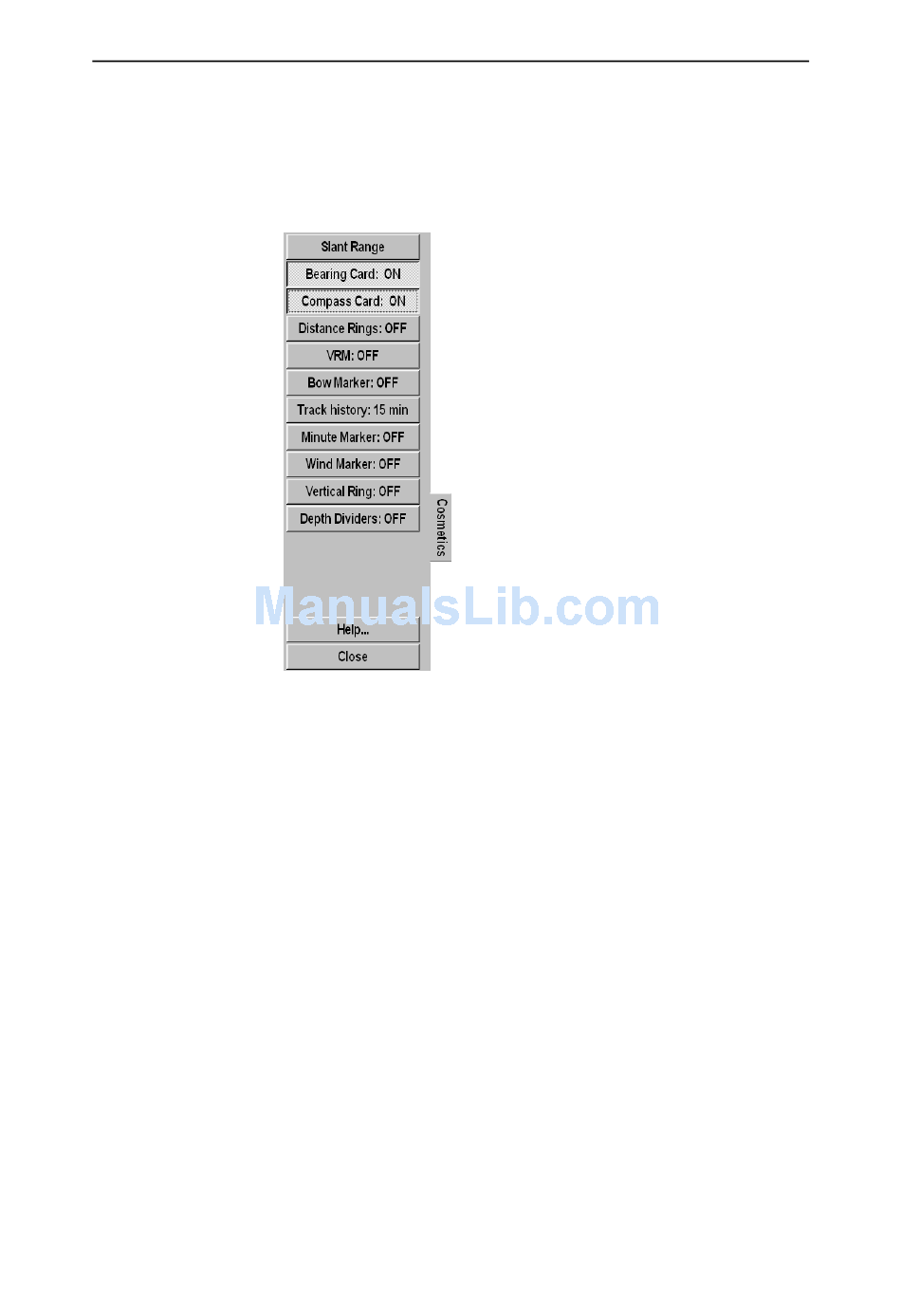

The menu is activated by
Cosmetics
pressing the
Cosmetics
menu. The menu provides access
Display
to various parameters controlling the
appearance of the sonar picture. All
the functions - except
- are on/off buttons. For additional
information, see Display menu on
page 88 and Cosmetics on page 30.
: Allows you to choose the how the
Menu descriptions
button in the
Track History
