Inspect Object

The parameter dialog is either accessed when you
Inspect Object
select a target marker in the
the cursor on the marker and pushes the
Operating Panel.

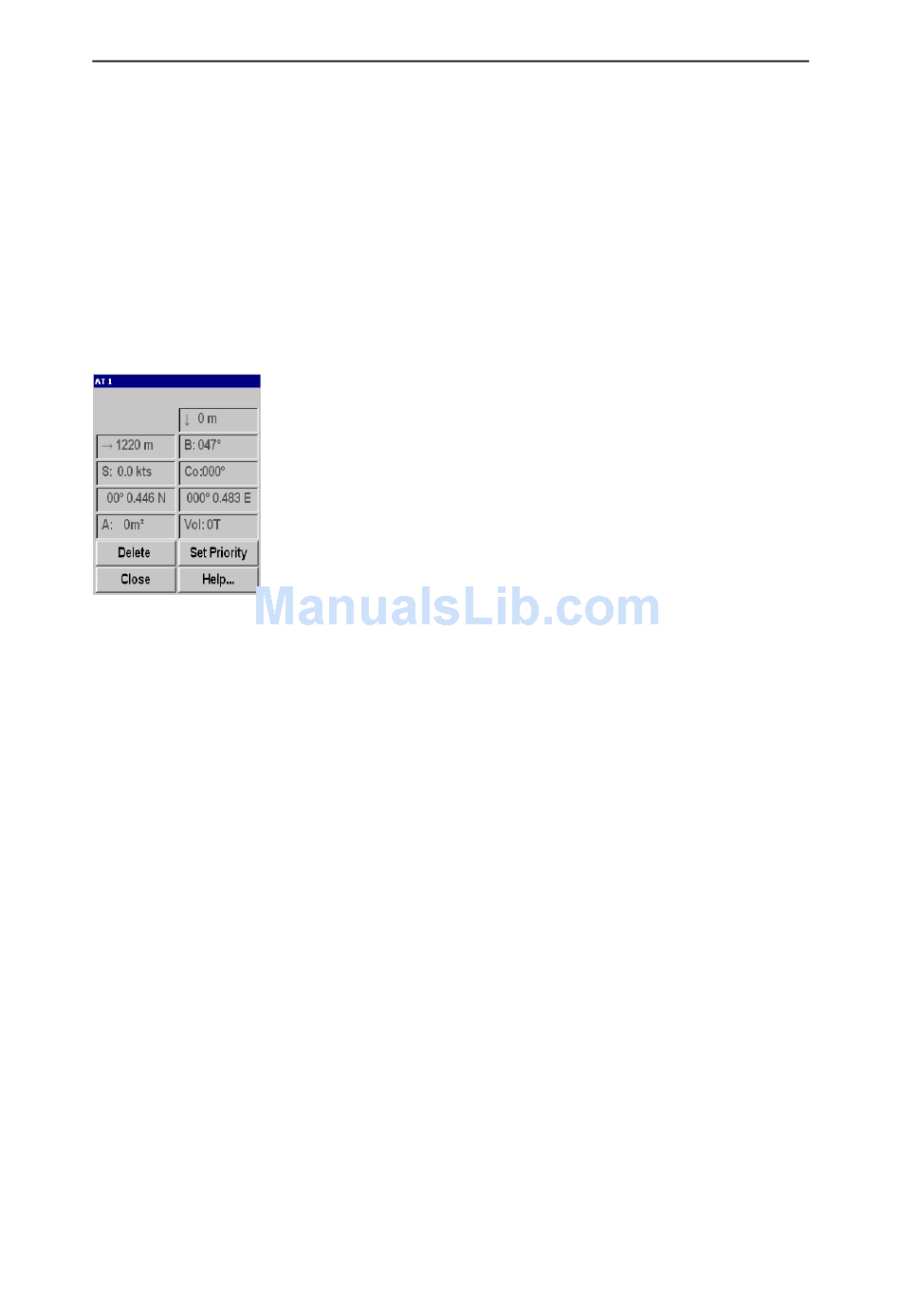

This parameter dialog displays the current parameters for the
chosen object. Note that every parameter may not be applicable
for all marker categories.
Options
: This read-out shows the current depth of the chosen
Depth
object.
: This read-out shows the current distance to the chosen
Distance
object.
: This read-out shows the current bearing to the
Bearing (B)
chosen object.
: This read-out shows the current speed of the chosen
Speed (S)
object.
: This read-out shows the current course of the
Course (CO)
chosen object.
Geographical Position
geographical position of the chosen object.
: This read-out shows the estimated area of the chosen
Area (A)
object.
: This read-out shows the estimated volume of the
Volume (V)
chosen object.
: Click to delete the chosen object from the marker list.
Delete
: Click to change the current marker to the "priority"
Set Priority
target. The marker is then identified with a "P".
: Click to close the parameter dialog.
Close
: Click to access the on-line help.
Help
Related topics
Objects menu on page 91
Operating Panel 'Cursor' field on page 76
menu, or when you place
Objects
Select
: This read-out shows the current
Parameters
button on the
135
