Telemetry system
This screen displays and sets the various information from the receiver. An alarm and vibration can be
in the aircraft can be reported by an alarm.
● This function can only be used in the FASSTest18CH mode and T-FHSS mode. The FASST/S-FHSS mode cannot use
telemetry.
● FASSTest12CH mode. Applicable with receiver voltage display.
● Telemetry sensors sold separately can be mounted in the aircraft to display a variety of information. (Receiver voltage
does not require a sensor.)
● The telemetry function cannot be used if the telemetry mode of the parameters is not ACT.
● FASSTest18CH : When 2 receivers are used with 1 transmitter, the telemetry cannot be used for the 2nd receiver.
● T-FHSS/FASSTest12CH : When 2 receivers are used with 1 transmitter, the telemetry function cannot be used.
● If the transmitter and receiver are linked, but the receiver's ID is not recorded in the transmitter's memory, the telemetry
function cannot be used.
● Turning OFF the receiver after use will cause the telemetry data just prior to this to be displayed. (Even when the
receiver's power is turned OFF, the receiver voltage is not 0.0 V.)
Viewing the receiver voltage.
Viewing the drive battery
voltage.
Using various optional
telemetry sensors.
Using several telemetry
sensors of the same type.
Setting alarms from the
telemetry information.
Viewing the telemetry data
Receiver → Transmitter. The reception of the signal
from the receiver to the transmitter is shown. This
does not affect flight.
CAUTION
Do not stare at or set the transmitter
setting screen while flying.
■ Losing sight of the aircraft during flight is very
dangerous.
■ When you want to check the information
during flight, call the telemetry screen
before flight and have the screen checked by
someone other than the operator.
Setting is unnecessary. When menu telemetry
is listened to, the voltage appears.
CA-RVIN-700 and wiring work are necessary.
Optional telemetry sensors are necessary.
T16IZ SUPER setting is unnecessary.
Setting by "sensor" in the menu is necessary.
Setting by "Telemetry" in the menu is
Receiver voltage and
Ext voltage display
(Register is necessary.)
necessary.

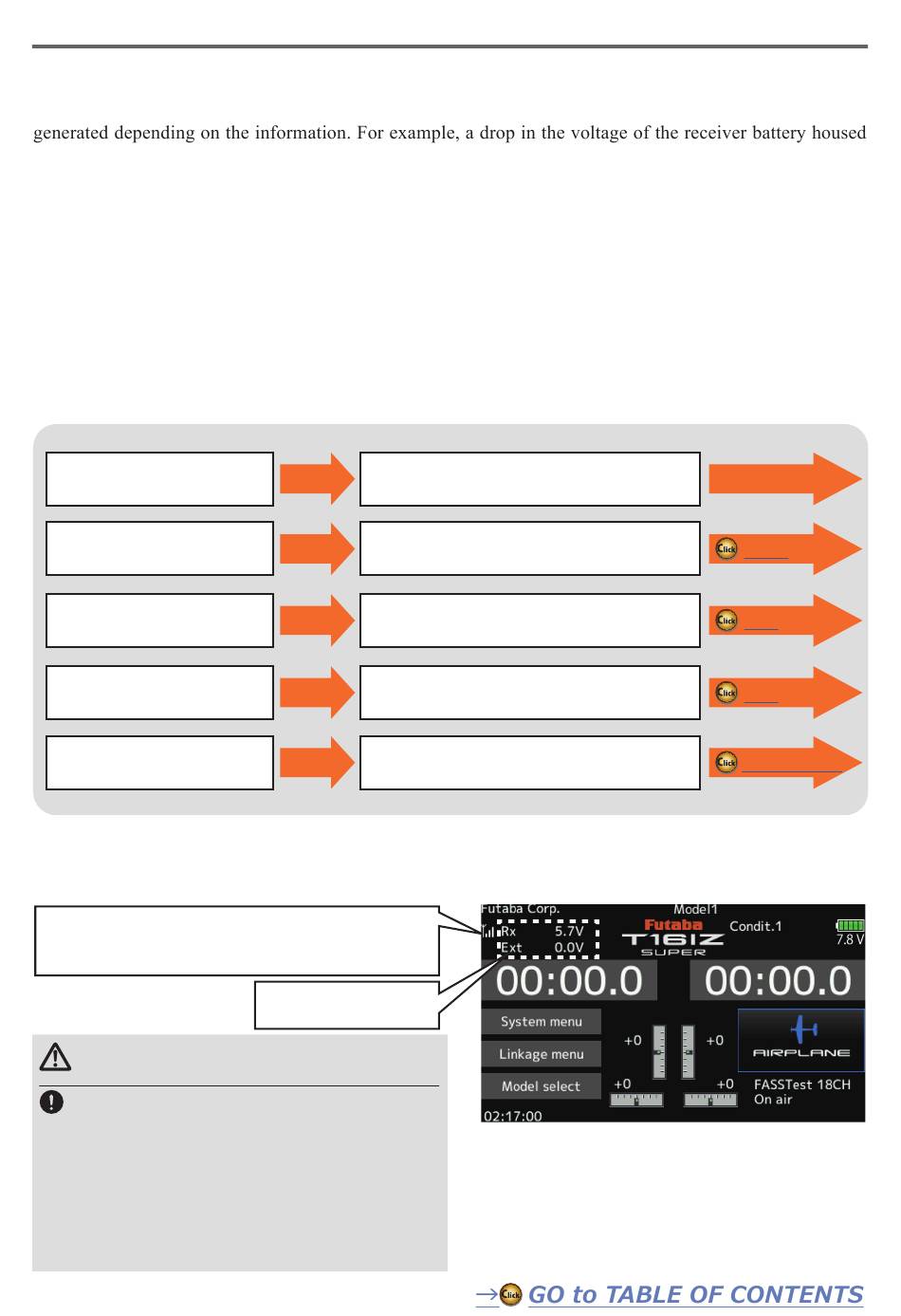

＜ Home display ＞
93
P.93
P.101
P.95
P.97
P.100 〜 121
