FUTABA T16IZ SUPER Full Manual page 238

When shifting the ON/OFF point
possible at a free position.

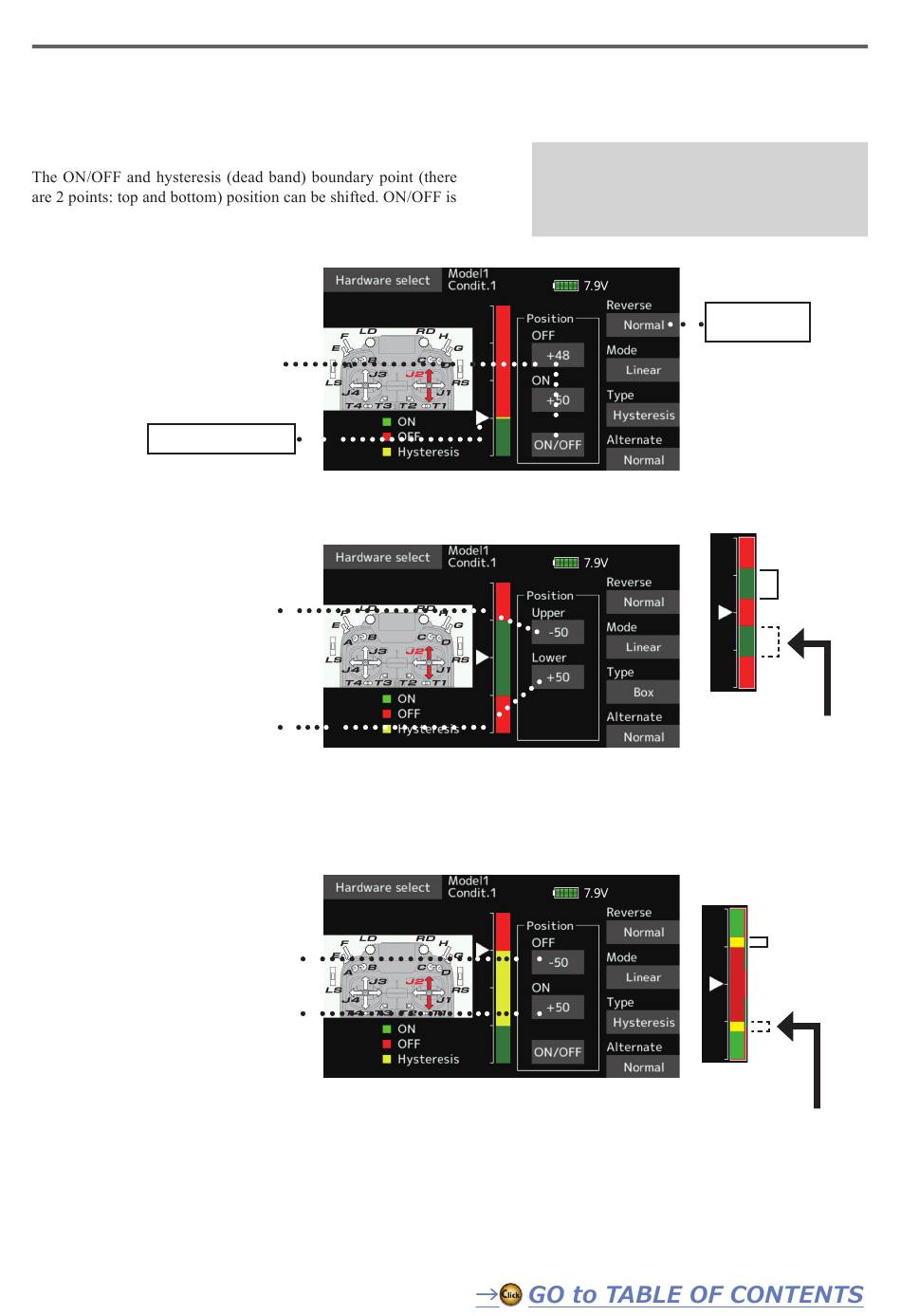

[ Setting method ]
1. Move the stick, etc. to
the point you want to shift
and touch the [ON/OFF]
b u t t o n . T h e b o u n d a r y
points change.
Current stick position
[ Setting method] → Box Type
1. Move the stick to the point
you want to shift upper side.
2. Touch the [Upper] button.
The boundary points
change.
3. Move the stick to the point
you want to shift lower side.
4. Touch the [Lower] button.
The boundary points
change.
Hysteresis ： Hysteresis (dead band) can be set to ON and OFF
[Setting method] → Linear Type
1. Move the stick to the off
point you want to shift and
touch the [OFF] button. The
off points change.
2. Move the stick to the on
point you want to shift and
touch the [ON] button. The
on points change.
◆ Area Green：ON
◆ Area Red：OFF
◆ Area Yellow：Hysteresis (Dead band)
238
Reverse of ON/
OFF direction
● Symmetry
When Upper
(Lower) is set, at the
same time, Lower
(Upper) is also set.
● Symmetry
When Upper (Lower) is
set, at the same time,
Lower (Upper) is also set.
