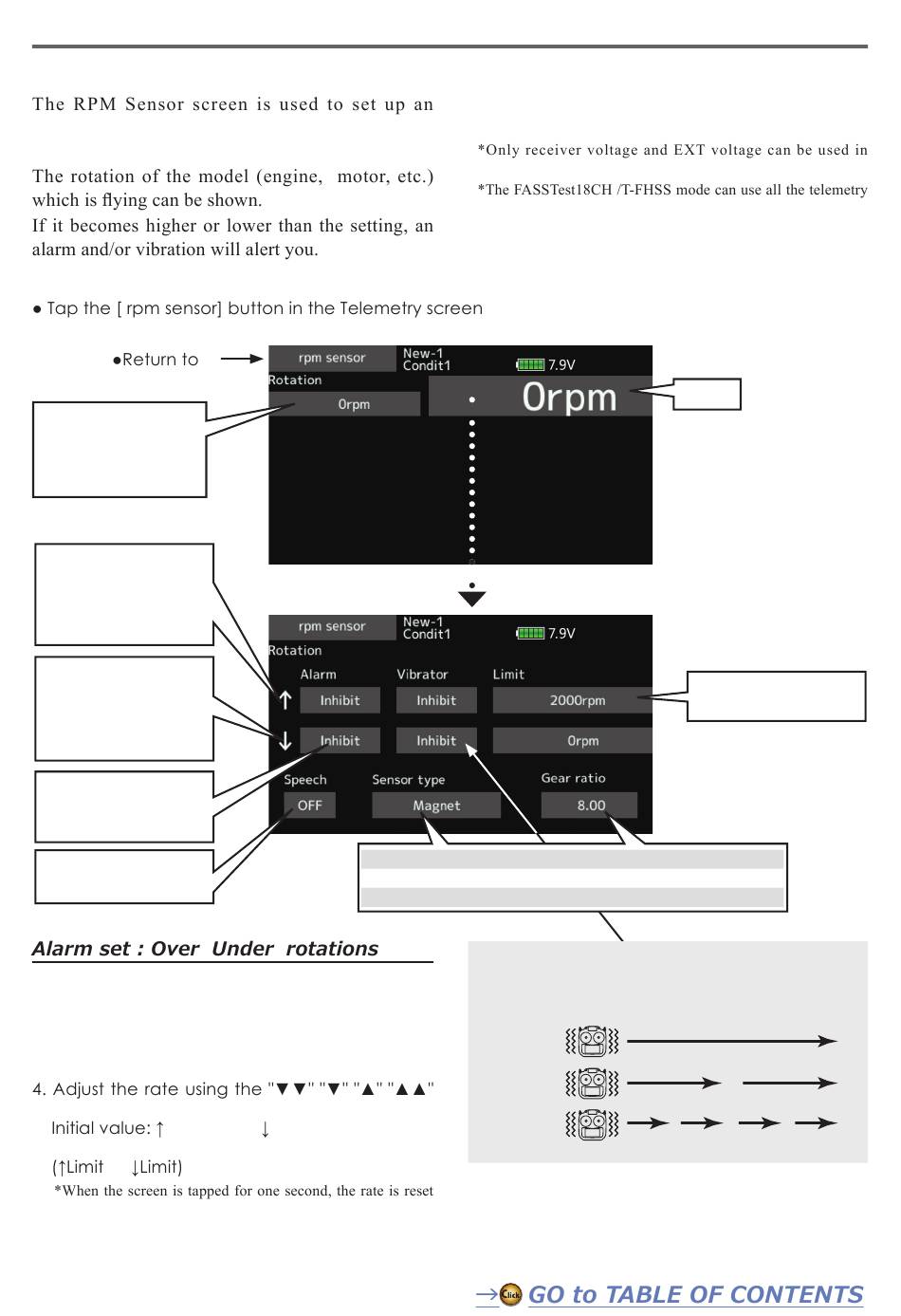

Telemetry : RPM Sensor
optional rpm sensor and display the rotation
information it transmits.
to call the setup screen shown below.
Linkage menu
Max. and min. values
s i n c e t h e p o w e r
was turned ON will
display.
↑ An upward arrow
will show that an alarm
will sound when the
rpm rises above the set
value.
↓ A downward arrow
will show that an alarm
will sound when the
rpm falls below the set
value.
Alarm is chosen from
Buzzer, Voice, and
Inhibit.
Allows Speech to be
turned ON or OFF.
1. Tap Alarm and choose from Buzzer, Voice,
and Inhibit.
2. Choose "Inhibit" for Vibrator if not using the
vibrator alarm. If using vibrator, choose one
of the three types.
3. Tap to the Limit [xxx rpm] item.
buttons.
2,000 rpm
Adjustment range: 0 rpm~150,000 rpm
≧
to the initial value.
5. To terminate the input and return to the
original state, push the HOME/EXIT button.
"Magnet"
"Optics"
"Brushless motor"
( )
0 rpm
Displaying data from the rpm
*An rpm sensor must be installed in the aircraft.
*It cannot be used in FASST mode and S-FHSS mode.
FASSTest12CH mode.
functions.
SBS-01RM →
SBS-01RO →
SBS-01RB →
"Vibrator" type
If the following types are selected, the transmitter
will vibrate during the warning.
Type 1
Type 2
Type 3
103
rpm
Sets the rpm on which
the alarm operates.
Gear ratio 1.00~99.00
Blade 2~10
Pole 2~30
