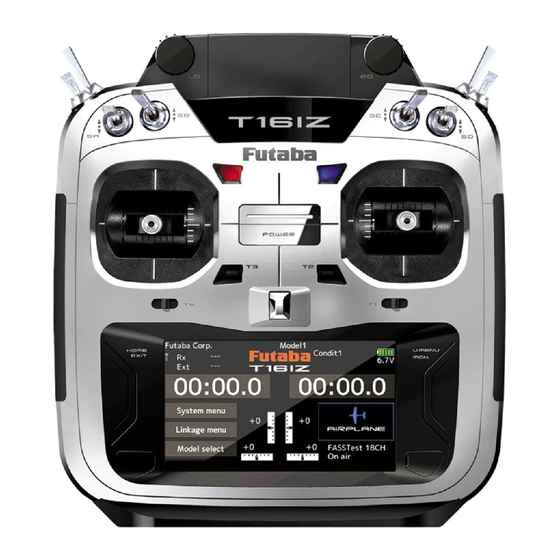

FUTABA T16IZ Setting Manual
Hide thumbs Also See for T16IZ:

Advertisement

Quick Links

T16IZ/T16IZ SUPER
GYA553 Ver.3
Setting manual
1M23Z07717

Advertisement

loading
Need help?

Need help?

Do you have a question about the T16IZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FUTABA T16IZ

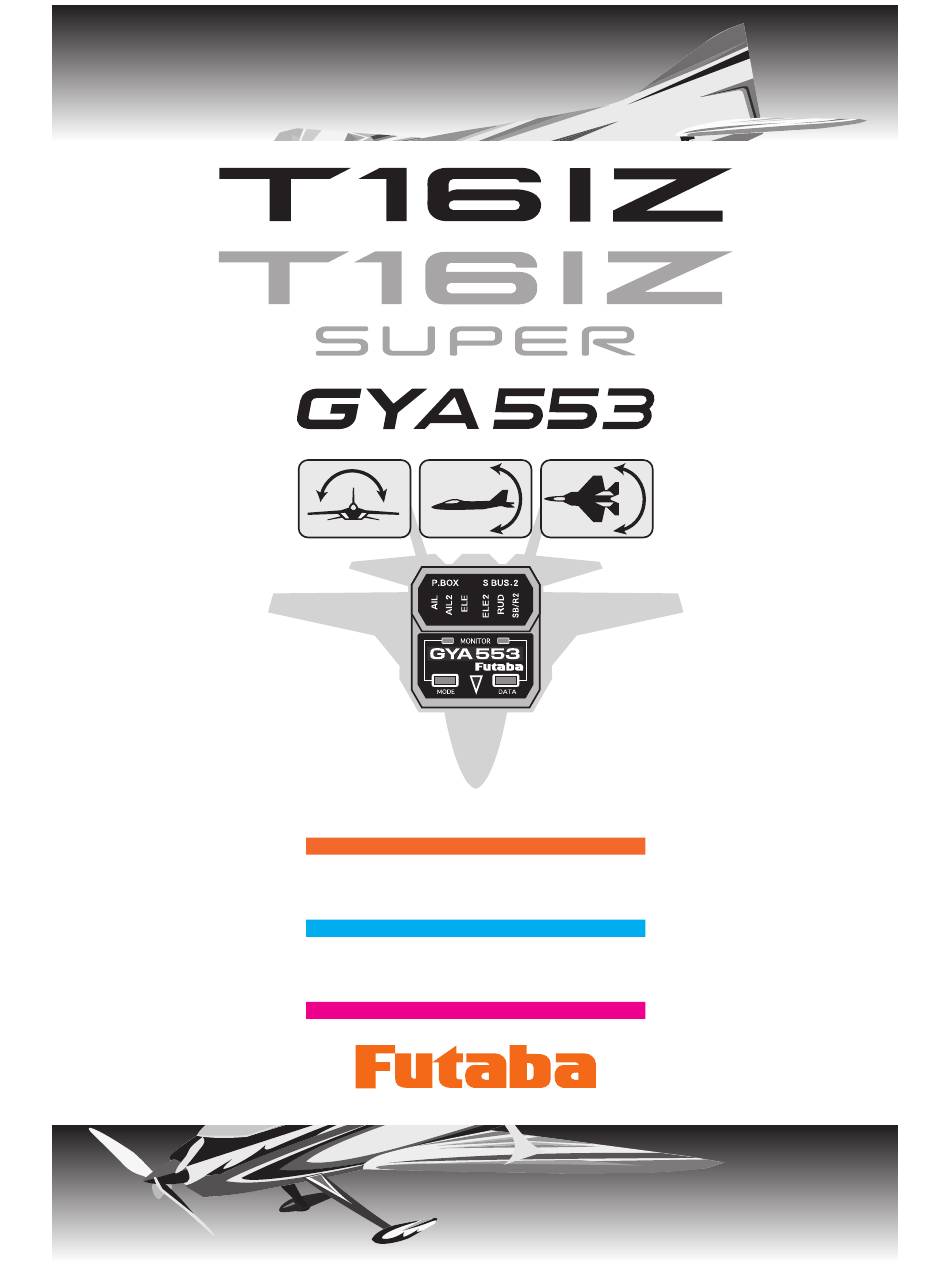

  • Page 1 T16IZ/T16IZ SUPER  GYA553 Ver.3 Setting manual 1M23Z07717...
  • Page 2 By installing the latest software on the T16IZ/T16IZ SUPER, you can  setting the airplane gyro GYA553 on the T16IZ/T16IZ SUPER. Connection T16IZ/T16IZ SUPER and GYA553 T16IZ/T16IZ SUPER S.I/F CGY 接続コード(ジャイロに付属) Receiver Connection Cable  (included with gyro) GYA553  CAUTION   Be sure to connect and disconnect the GYA553  and  Transmitter  connection  cable  with  the  power off.
  • Page 3 SETTING 1. Select “Gyro setting” on the last page of  Airplane Model Menu * At this time, if Gyro is not connected to  transmitter by wire, this screen appears. When "GY Settings Transfer" is  selected, the gyro setting data saved  in transmitter is written to the gyro. 2.  Select "Start" Tap "Yes" to display the GYA553 data saved  in transmitter. Select "Start"  This will download the gyro data to  the transmitter. To Basic menu 3.  Home screen is displayed ◆ When copying data from Gyro A to Gyro B Connect the gyro A to the transmitter and press [Start]. (Enter the data of A into transmitter) If you press Start here, the B data will be download to the  transmitter and the A data will be lost. Connect Gyro B to transmitter and press [GY Settings Transfer]. (Put data on A into gyro B)
  • Page 4 Home screen Home screen On the home screen, basic information such as gyro operation mode, sensitivity, battery voltage are displayed. Battery voltage Displays the voltage of the Gyro operation mode / Gyro receiver battery connected to gain GYA. Displays "AVCS" or "Normal" opera-tion mode and gyro gain of aileron (roll), elevator (pitch) and rudder (yaw) axis.
  • Page 5 Config Config Config 1/7 Gyro set mounting direction Set the mounting direction of GYA. Set mounting direction Config 1/7 WING/TAIL Set with the wing type/tail type of GYA553. The wing type/tail type of the transmitter is not used and is normal. ・ ・ ・ Select wing type Select tail type...
  • Page 6 Config Config Config 1/7 Servo type Select the servo type according to the servo to be used. Digital servo → DG : 285 Hz Analog servo → AN : 70 Hz action. Digital servo Analog servo Config 1/7 SB/R2  OUT Select the SB/R2 port. S.BUS(STD) If S3175HV, DLPH-1, etc. do not work  with S.BUS(HS), use S.BUS(STD). S.BUS(HS) Rudder 2 Throttle Connect SV servo When using two rudder servos Program box S.BUS 2 MODE LED DATA LED MODE SW DATA SW Aileron  S.BUS/Rudder 2 Rudder Aileron 2 Elevator 2...
  • Page 7 Config Config Config 2/7   Gyro direction It is the direction settting of the gyro. Be careful as it will crash if the direction is reversed. For dual aileron, dual elevator, and dual rudder aircraft, check the operating direction of each second aileron/elevator/rudder. Tilt the airplane to the left  on ...
  • Page 8 Config Config Config 4/7 5/7 Servo limit This is the limit setting for each servo. The Aileron example Maximum angle If the SB/R2 port output is set to "S.BUS(HS)" or "S.BUS(STD)", the setting menu will display AIL3 and AIL4 setting items. * AIL3 and AIL4 settings cannot be set with the button settings on the GYA553 main unit.
  • Page 9 Config Config Config 6/7 Holding Power Decreasing the value weakens the holding power and makes the operation feeling closer to the normal mode. The current rate numbers C1 to C5 are displayed by operating the channel of the transmitter. between them. You can set the holding power rate selector switch to the channel with the AFR function of the transmitter, and set the point for each rate on the AFR point curve to switch.
  • Page 10 Set the CH for each function according to the transmitter to be used. Any unused functions should be set to INH (Inhibited). WARNING Always  verify  that  the  S.BUS  function  assignments  match your transmitterʼ s function (in the FUNCTION  menu) assignments.  If any changes are made within  the transmitter function assignments, then it will also  be necessary to make the changes within the S.BUS  function assignments.  To change the channel, GYA553  and T16IZ must be connected. The channel of each function can be changed. Tap to move to the rate  switching CH setting page. Holding Power C2 to C5 Tap the CH used for rate switching  to select it. Reset each S.BUS function. It  returns to the initial value.
