FUTABA T16IZ SUPER Full Manual page 216

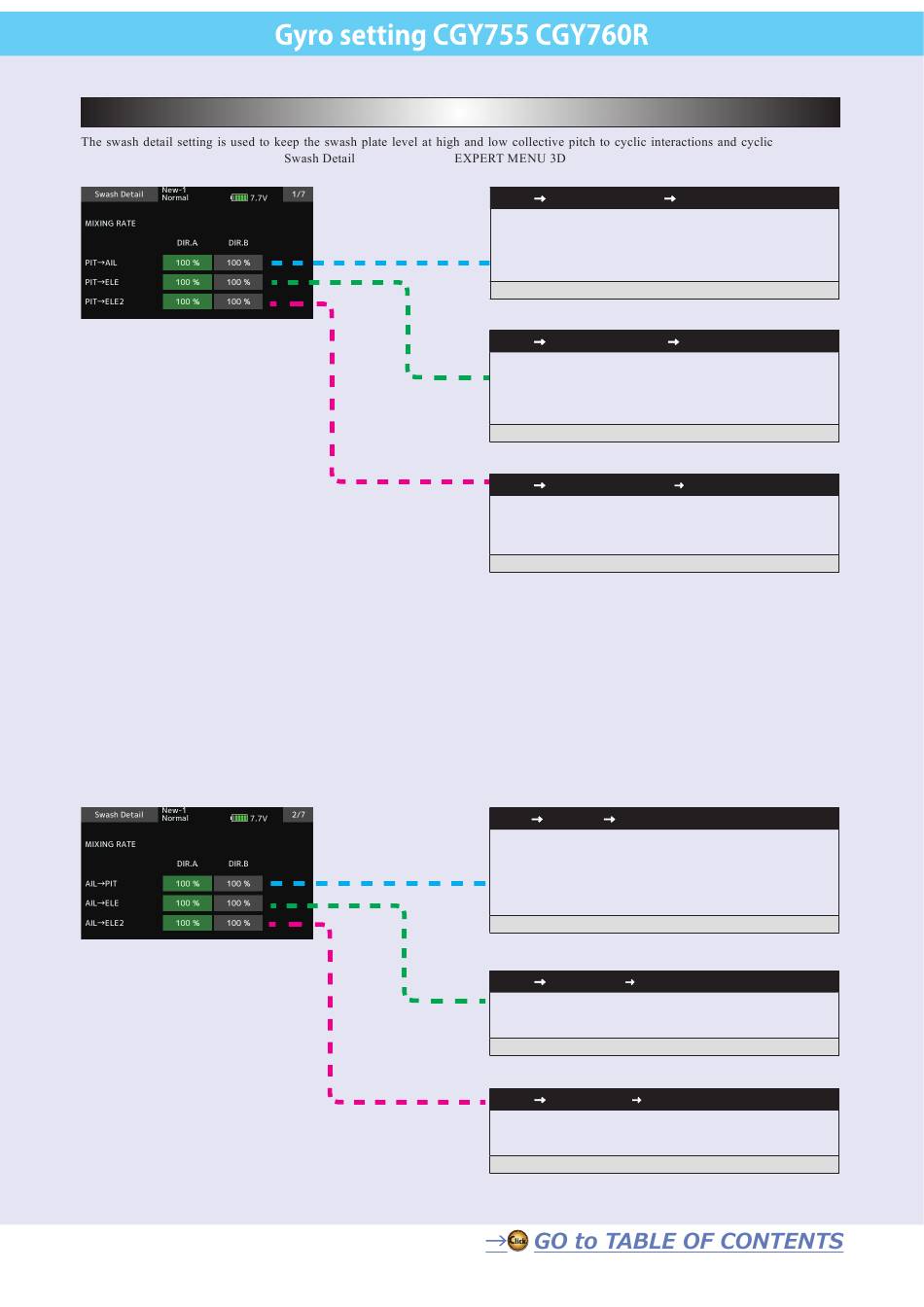

pitch to collective pitch interactions. "
Swash Detail Swash Detail
" screen from the "
(1) PIT
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range.
[Setting method] Operate the transmitter stick in the direction you want to
set. Touch the button lit in green to enter the setting mode and adjust the
mixing rate. Do the same for the other side.
Setting ranges: 30 ~ 150% Initial value: 100%
(2) PIT
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range.
[Setting method] Operate the transmitter stick in the direction you want to
set. Touch the button lit in green to enter the setting mode and adjust the
mixing rate. Do the same for the other side.
Setting ranges: 30 ~ 150% Initial value: 100%
(3) PIT
This parameter adjusts the pitch to 2nd elevator mixing rate. The rates can
both be adjusted individually for both full high and low collective positions.
Note: This setting is only available if the H4-xx swash mode has been
selected.
Setting ranges: 30 ~ 150% Initial value: 100%
(4) AIL
At the middle collective pitch, check that during right to left and left to right
aileron action the swash plate is staying level on both the elevator and col-
lective pitch axis. If the swash plate is rising or falling with aileron inputs.
[Setting method] Operate the transmitter stick in the direction you want to
set. Touch the button lit in green to enter the setting mode and adjust the
mixing rate. Do the same for the other side.
Setting ranges: 30 ~ 150% Initial value: 100%
(5) AIL
This parameter adjusts the aileron to elevator mixing rate. The rate can be
adjusted for left and right directions individually. Note: This setting is only
available if the H4-45 swash mode has been selected.
Setting ranges: 30 ~ 150% Initial value: 100%
(6) AIL
This parameter adjusts the aileron to 2nd elevator mixing rate. The rate
can be adjusted for left and right directions individually. Note: This setting
is only available if the H4-45 swash mode has been selected.
Setting ranges: 30 ~ 150% Initial value: 100%
216
" screen.
AIL: collective pitch aileron mixing rate
ELE: collective pitch elevator mixing rate
ELE2: collective pitch 2nd elevator mixing rate
PIT: aileron collective pitch mixing rate
ELE: aileron elevator mixing rate
ELE2: aileron 2nd elevator mixing rate
