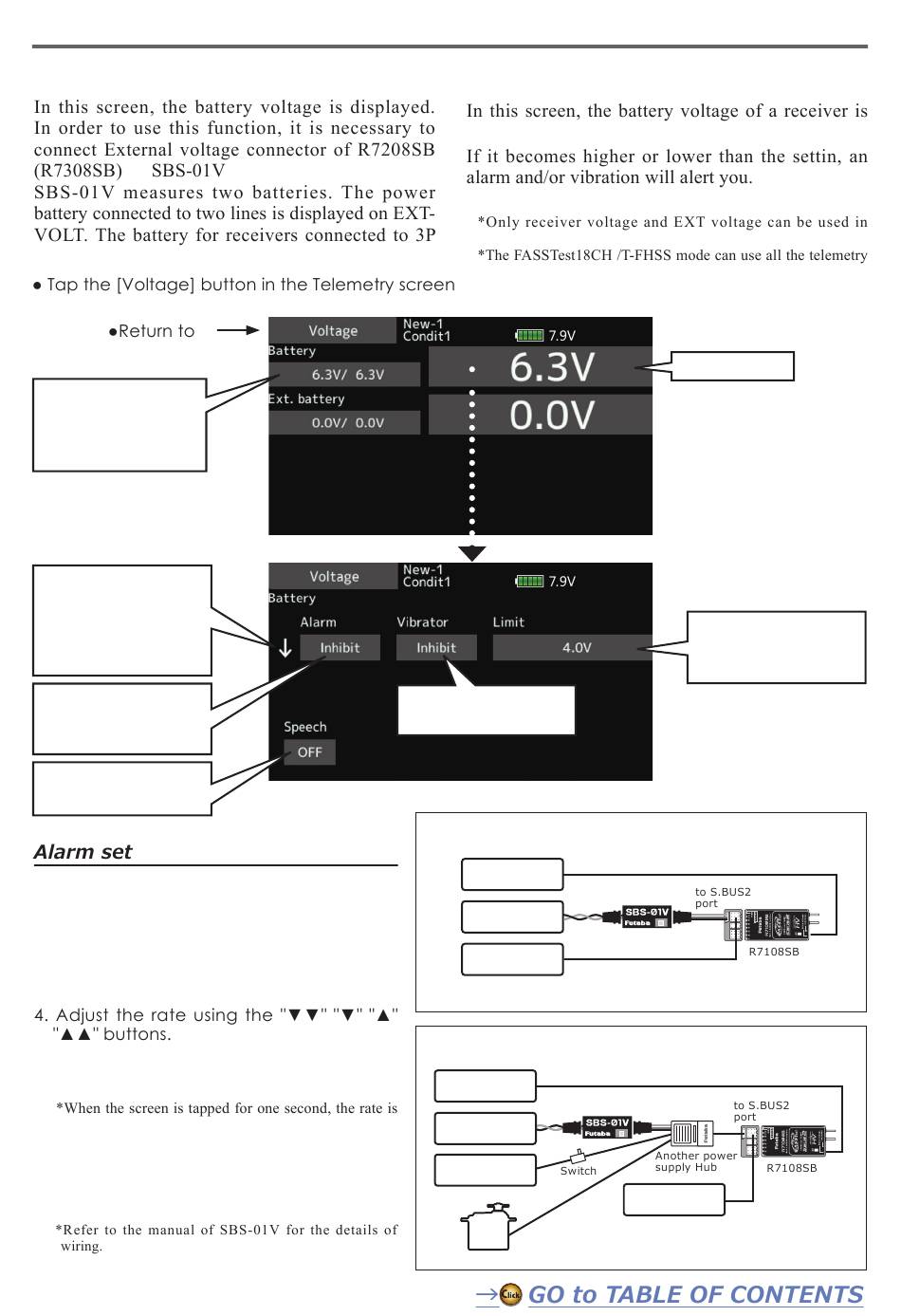

Telemetry: Voltage [Battery]
⇔
lines is displayed here.
to call the setup screen shown below.
Linkage menu
Max. and min. values
s i n c e t h e p o w e r
was turned ON will
display.
↓ The "down" arrow
will indicate that an
alarm will sound when
the voltage drops to
below the setting.
Alarm is chosen from
Buzzer, Voice, and
Inhibit.
Allows Speech to be
turned ON or OFF.
1. Tap Alarm and choose from Buzzer,
Voice, and Inhibit.
2. Choose "Inhibit" for Vibrator if not using
the vibrator alarm. If using vibrator,
choose one of the three types.
3. Tap to the Limit [4.0 V] item.
Initial value: 4.0 V
Adjustment range: 0.0 V~100.0 V
reset to the initial value.
5. To terminate the input and return to
the original state, push the HOME/EXIT
button.
⇔ Battery
Displaying data from the receiver battery voltage
*SBS-01V must be installed in the aircraft.
displayed.
*It cannot be used in FASST mode and S-FHSS mode.
FASSTest12CH mode.
functions.
Vibrator choices are
type1-3, and Inhibit.
＜ Two examples of wiring are shown ＞
Two drive batteries are measured (R7108SB use)
Drive battery 1
（EXT Battery)
Drive battery 2
（EXT Battery)
Receiver battery
Two drive batteries and power supplies for servos are measured (R7108SB use)
*SBS-01V measures two voltage. One corresponds to high voltages, such as a drive battery,
with an EXT line. Another is a normal line and is measurement of the battery for receivers of a
line connected to 3P connector, or the battery for servos.
Drive battery 1
（EXT Battery)
EXT Line
Drive battery 2
（EXT Battery)
Power supplies
for servos
S.BUS2
●Battery voltage measurement for receivers [R7108SB use]
servos
●The drive battery 1 is measured in an EXT port [R7108SB use]
●The drive battery 2 is measured in an EXT line [SBS-01V use]
●The voltage for servos is measured in a power supply line [SBS-01V use]
108
Battery voltage
Sets the voltage on
which the alarm
operates.
EXT Line Normal Line
●Battery voltage measurement for receivers [R7108SB use]
●The drive battery 1 is measured in an EXT port [R7108SB use]
●The drive battery 2 is measured in an EXT line [SBS-01V use]
Normal Line
Receiver battery
