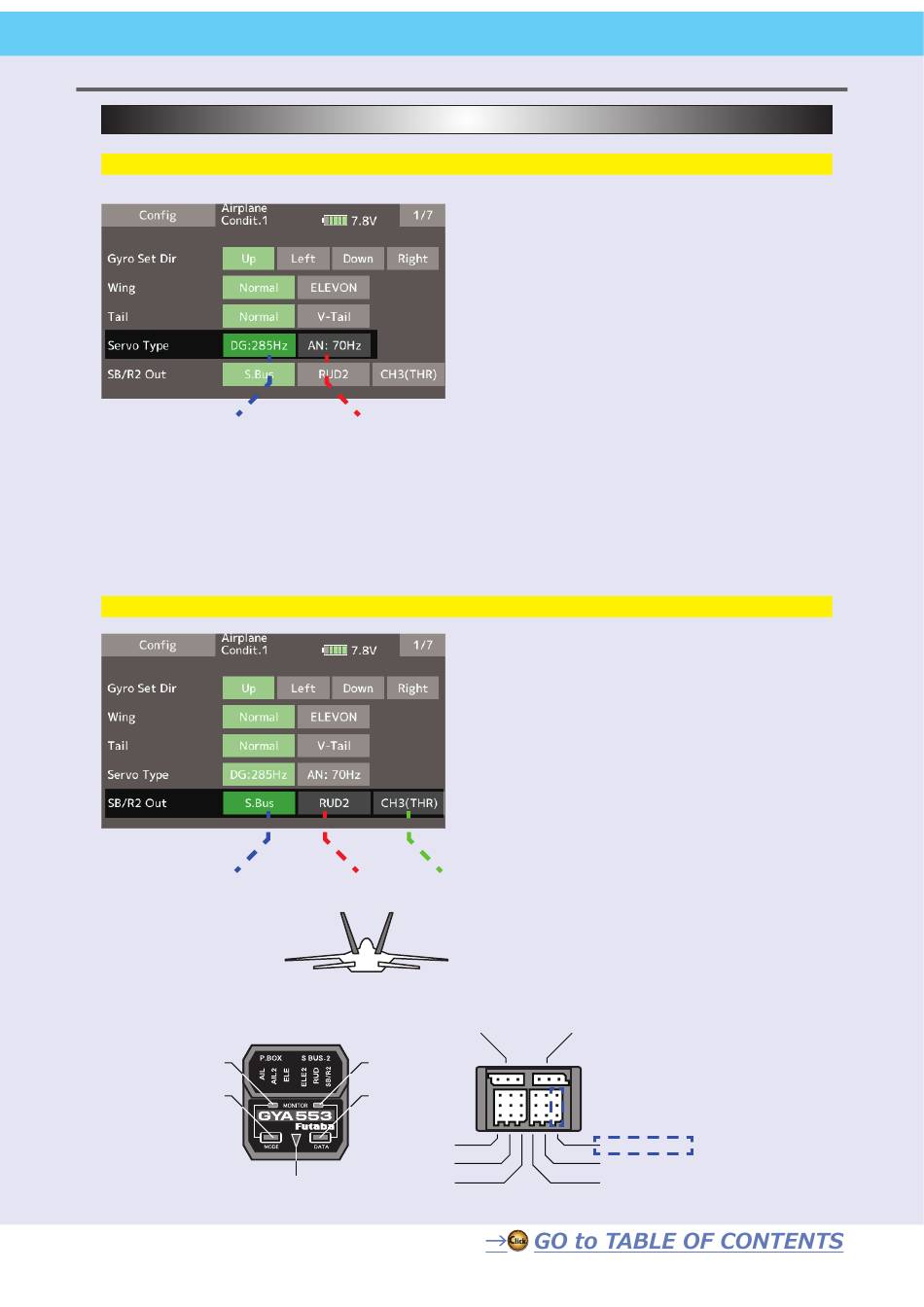

Digital Servo - FUTABA T16IZ SUPER Full Manual

Config 1/7 Servo type

Digital servo

Config 1/7 SB/R2 OUT
S.BUS
S.BUS devices can be
connected to this port.
When using two rudder servos
MODE LED
MODE SW
Head direction mark
Gyro setting GYA553
Config Config
Select the servo type according to the servo to be
used.
Digital servo → DG : 285 Hz
Analog servo → AN : 70 Hz
The stability of digital-servo mode of a flight
increases in order to perform a high-speed control
action.
Analog servo
Select the SB/R2 port.
Rudder 2 Throttle
Program box
DATA LED
DATA SW
Aileron
Aileron 2
Elevator
166
S.BUS 2
S.BUS/Rudder 2
Rudder
Elevator 2
