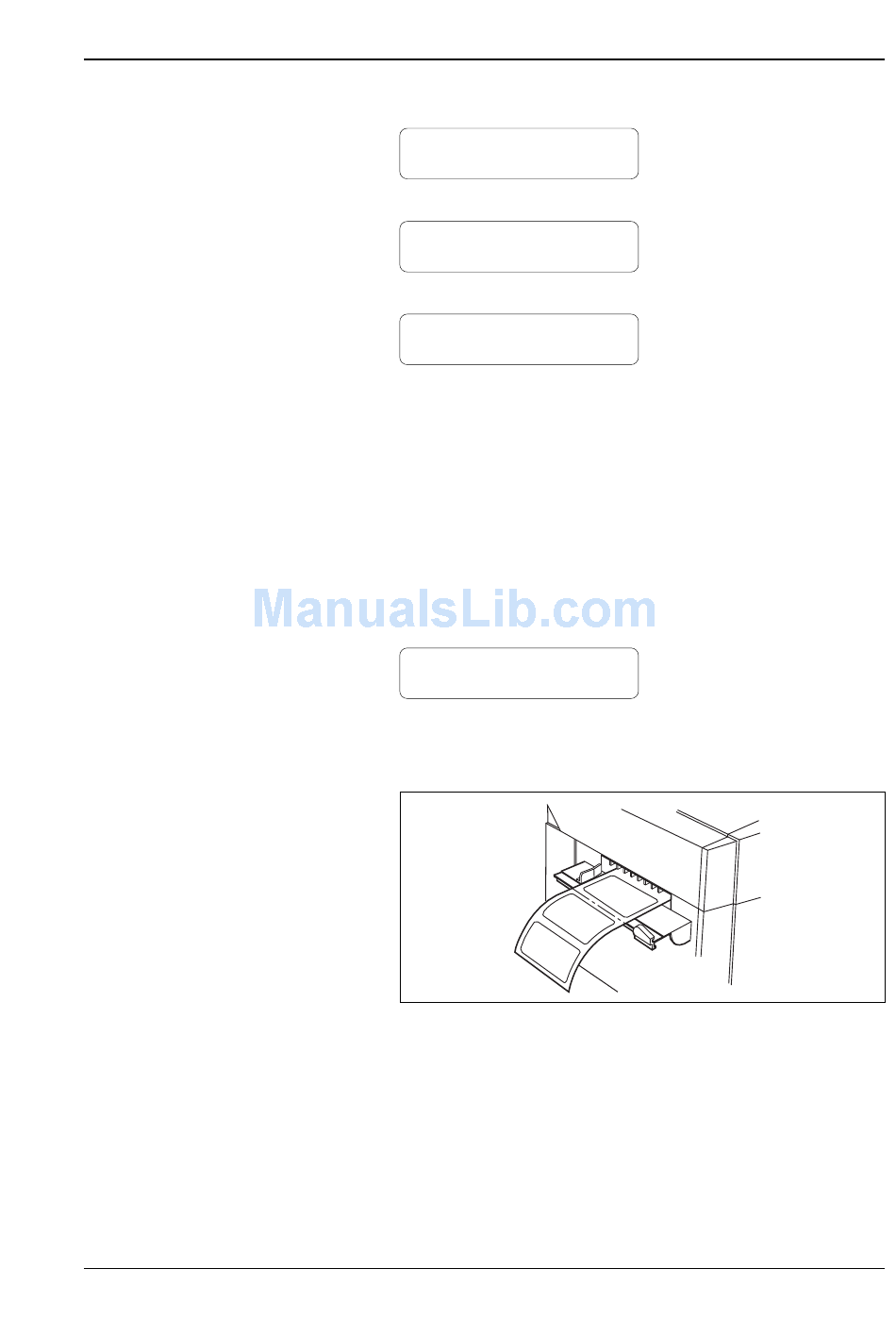

4.13 Stop Position
Alignment,
cont'd.
Intermec ColorCoder V4 – Installation & Operation Ed. 1
. Press the <Cursor right> key twice (2).
9
STOP POS. ADJ.
. Press the <Enter> key.
10
STOP POS. = 0.0
. Press the <Cursor right> key. A cursor appears in the menu.
11
STOP POS. =_0.0
. Use the <Menu> key to increment a digit or to switch to positive
12
value and the <Enter> key to decrement a digit or to switch to
negative value. Use the <Cursor left> and <Cursor right>
keys to move the cursor between the different positions.
Adjust the stop position in the range of -3.0 to +3.0 mm in the
printing direction. The sign "-" means the direction in which the
paper moves backward from the present position, and the sign
"+" stands for the direction in which the paper moves forward.
. Set all the digits, and press the <Cursor right> key with the
13
cursor at the first digit. The cursor disappears from the display
panel. Pressing the <Enter> key will set the stop position.
V-NOZZLE ADJ.
. Carry out the test printing once again, and cut the paper with the
14
label cutter to confirm that the cutting position is at the centre
between two labels of the delivered paper.
If the stop position should not fall in the range of -3 to +3 mm,
the label cutter can be manually adjusted, see next page.
