6.2
Paper Roll
Replacement,
cont'd.
Intermec ColorCoder V4 – Installation & Operation Ed. 1

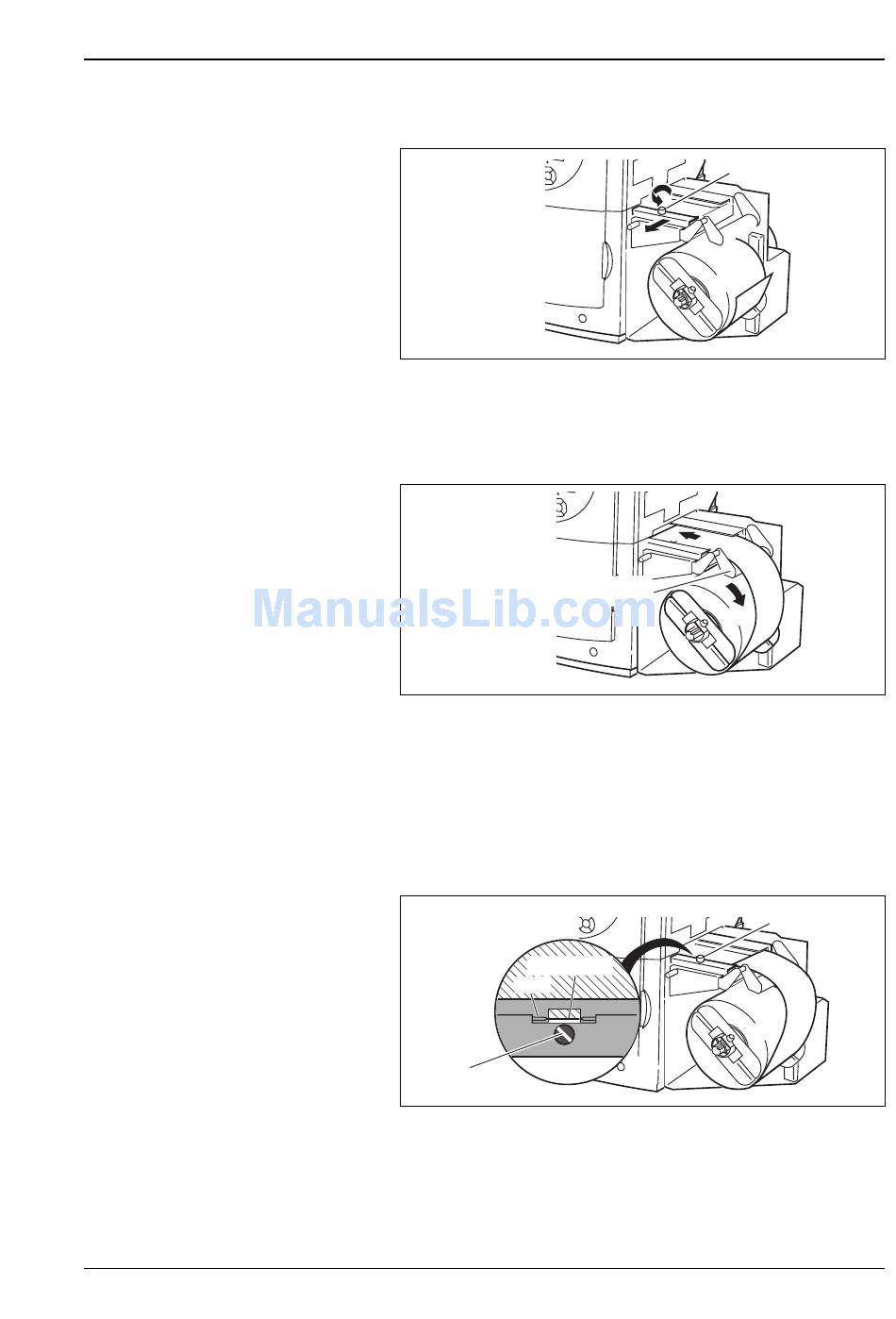

. Untighten the fixing screw on the front paper guide and pull out
8
the guide as far as it goes.
. Pull out the paper, pass it over the paper arm, and thread it
9
between the front and inner paper guides. Rewind the paper to
take up all excessive slack, that could interfere with the roll
cover.
. Adjust the front paper guide to fit the paper width and tighten the
10
fixing screw. You can see the paper edge through the window in
the paper guide. Position the guide so the paper edge becomes
aligned with the mark on the guide.
Important! If the paper guide is pressed too strongly against the
paper, the paper will not be fed properly. Be sure to align the
paper edge with the mark.
Paper Edge
Mark
Fixing Screw
Chapter 6
Routine Maintenance
Fixing Screw
Paper Arm
Fixing Screw
