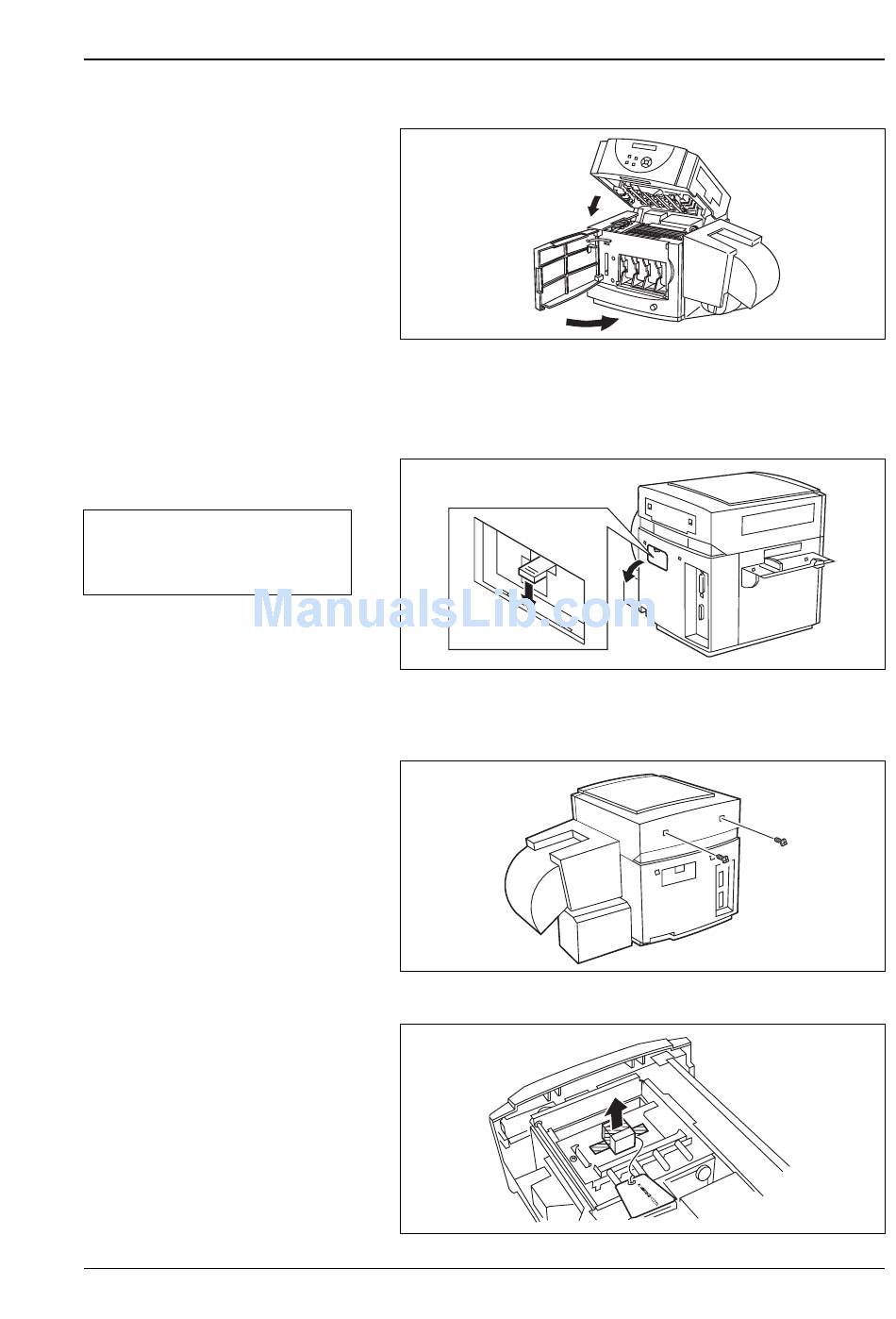

Assembling
the Printer,
cont'd.
Important!
If the green lever is not depressed as
described in paragraph 5, the ink may
spout of the tube station.
Intermec ColorCoder V4 – Installation & Operation Ed. 1
. Gently close the PHS unit, and close the front cover.
4
. Remove the tape from the shipping cover at the back of the main
5
unit. Remove the sub cover while depressing the clip, and push
the green lever down. After confirming the position of the
green lever, reattach the sub cover.
. Remove the two M4 screws that hold the PHS cover and remove
6
the PHS cover.
Remove the pad (w tag), which is taped inside the PHS unit.
7.
Chapter 4
Installation
14
