12. Control Menu Diagrams

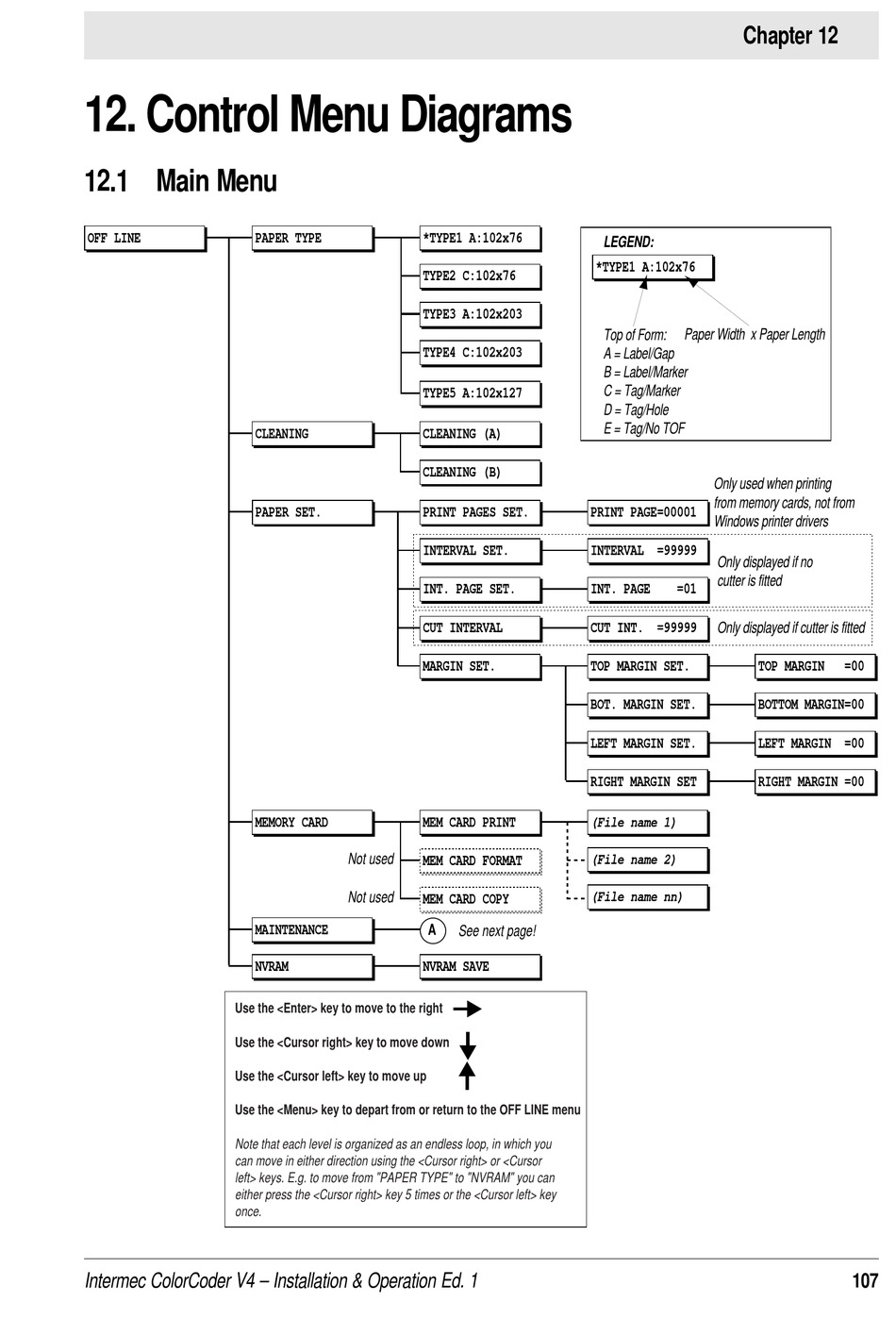

12.1 Main Menu
OFF LINE
Use the <Enter> key to move to the right
Use the <Cursor right> key to move down
Use the <Cursor left> key to move up
Use the <Menu> key to depart from or return to the OFF LINE menu
Note that each level is organized as an endless loop, in which you
can move in either direction using the <Cursor right> or <Cursor
left> keys. E.g. to move from "PAPER TYPE" to "NVRAM" you can
either press the <Cursor right> key 5 times or the <Cursor left> key
once.
Intermec ColorCoder V4 – Installation & Operation Ed. 1
PAPER TYPE *TYPE1 A:102x76
TYPE2 C:102x76
CLEANING (B)
CLEANING (B) TYPE3 A:102x203
TYPE4 C:102x203
TYPE5 A:102x127
CLEANING CLEANING (A)
CLEANING (B)
PAPER SET.
MARGIN SET.
MEMORY CARD MEM CARD PRINT
Not used
MEM CARD FORMAT
Not used
MEM CARD COPY
MAINTENANCE
NVRAM NVRAM SAVE
PRINT PAGES SET. PRINT PAGE=00001
INTERVAL SET. INTERVAL =99999
INT. PAGE SET. INT. PAGE
CUT INTERVAL CUT INT. =99999
TOP MARGIN SET.
BOT. MARGIN SET.
LEFT MARGIN SET.
RIGHT MARGIN SET
(File name 1)
(File name 2)
(File name nn)
A
See next page!
Chapter 12
LEGEND:
*TYPE1 A:102x76
Top of Form: Paper Width x Paper Length
A = Label/Gap
B = Label/Marker
C = Tag/Marker
D = Tag/Hole
E = Tag/No TOF
Only used when printing
from memory cards, not from
Windows printer drivers
Only displayed if no
cutter is fitted
=01
Only displayed if cutter is fitted
TOP MARGIN
BOTTOM MARGIN=00
LEFT MARGIN =00
RIGHT MARGIN =00
=00
