5.3
Windows
Driver Print
Setup
Intermec ColorCoder V4 – Installation & Operation Ed. 1
The printer driver allows the user to select from a variety of print
settings.
. Double-click on the printer icon within "Control Panel".
1
. Select the driver "BJ LABEL CARD PRINTER on LPT1:"
2
under "Installed Printers" within "Printer Setup" dialogue box

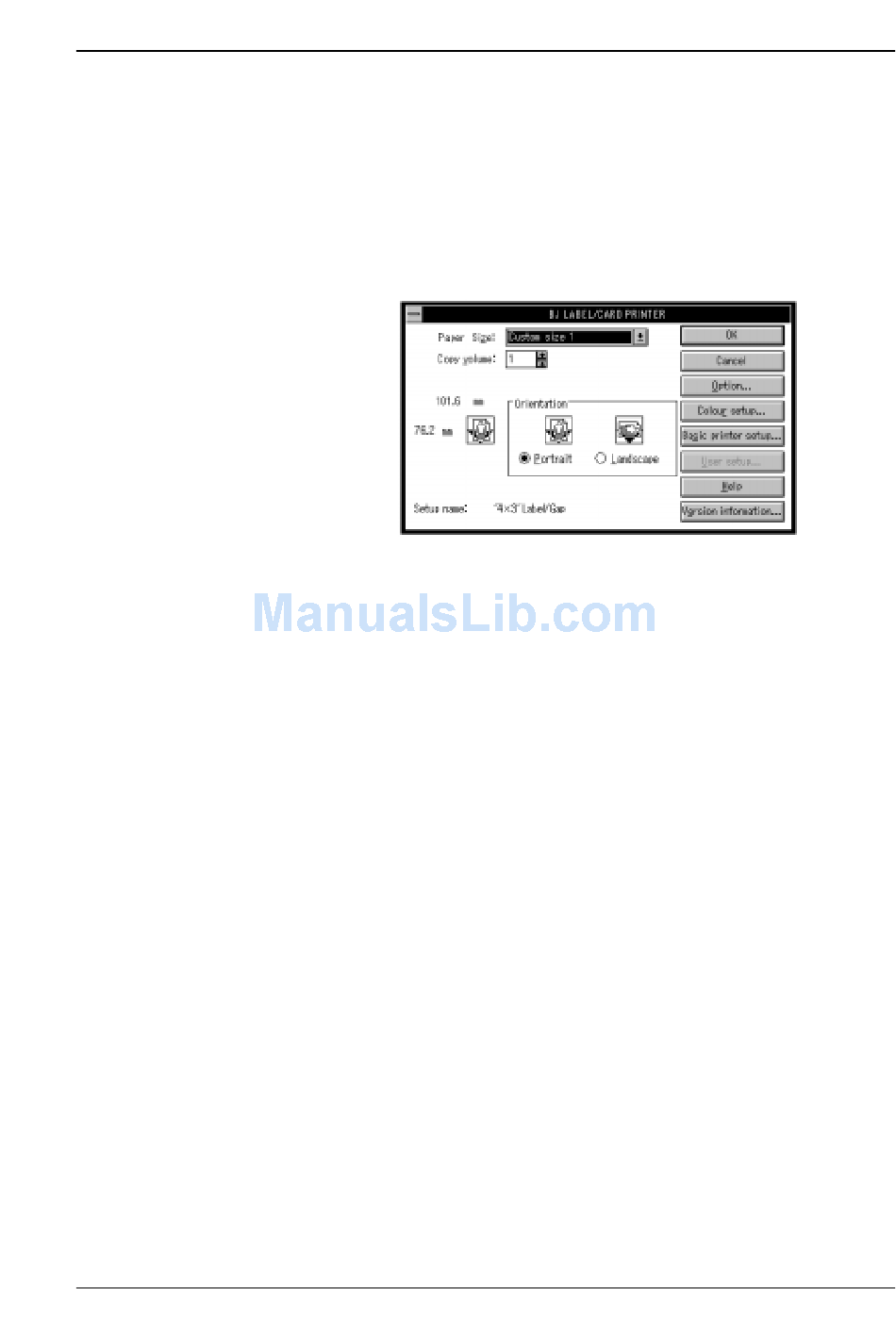

. Click the "Setup" button. A dialogue box will be displayed.
3
In the BJ Label/Card Printer box, you can perform the following
settings:
• Choose one of 20 predefined custom sizes using the Custom
Size scroll box,
• Specify the number of copies to be printed in a range from 1
to 65,535.
This value overrides any similar setting via the
control panel (Print Pages Set menu).
Note that the number of labels should be specified as 1 (one)
in the application program, where the label is designed.
• Select orientation (Portrait or Landscape). The arrows indicate
the paper feed direction.
• Accept the displayed settings by clicking the "OK" button, or
return to the original settings by click the "Cancel" button.
. In the BJ Label/Card Printer box, you can also access the
4
following dialogue boxes by click the corresponding button:
• Option...
Select Media type, monochrome or colour printing, high-
speed or fine output mode, and enable/disable headshading.
• Colour setup...
Select colour correction and matching method, set the colour
balance, set the gamma coefficient, and set the density.
• Basic printer setup...
Always select label printer, see chapter 4.16. In this box, you
can also print a test label.
• User setup...
Specify any of the 20 custom sizes in regard of paper (top-of-
form) type, paper size, margins, and scaling.
• Help
Get on-line help using the standard Windows Help facility.
• Version information...
Read the version number of the installed Windows Driver.
Chapter 5
Printing
49
