6.2
Paper Roll
Replacement,
cont'd.
Intermec ColorCoder V4 – Installation & Operation Ed. 1

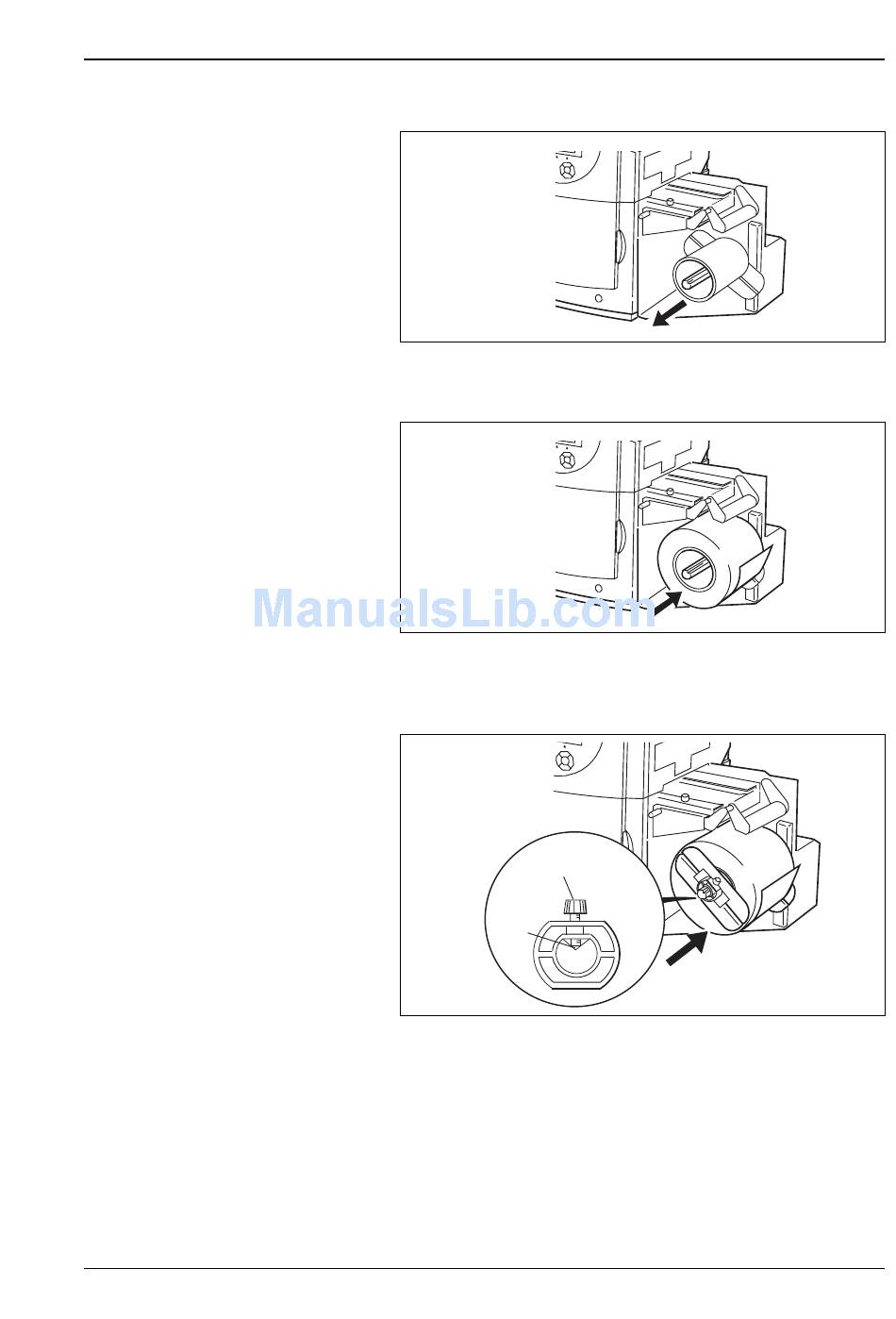

. Remove the empty paper core.
5
. Place a label roll on the take-up shaft so the core of the roll
6
positively seats on the inner roll retainer.
. Put back the front roll retainer on the take-up shaft as close to the
7
paper roll as possible. Align the fixing screw with the grooves on
the take up shaft and tighten the fixing screw.
Fixing Screw
Groove
Chapter 6
Routine Maintenance
63
