4.4
Power
Connection
Intermec ColorCoder V4 – Installation & Operation Ed. 1

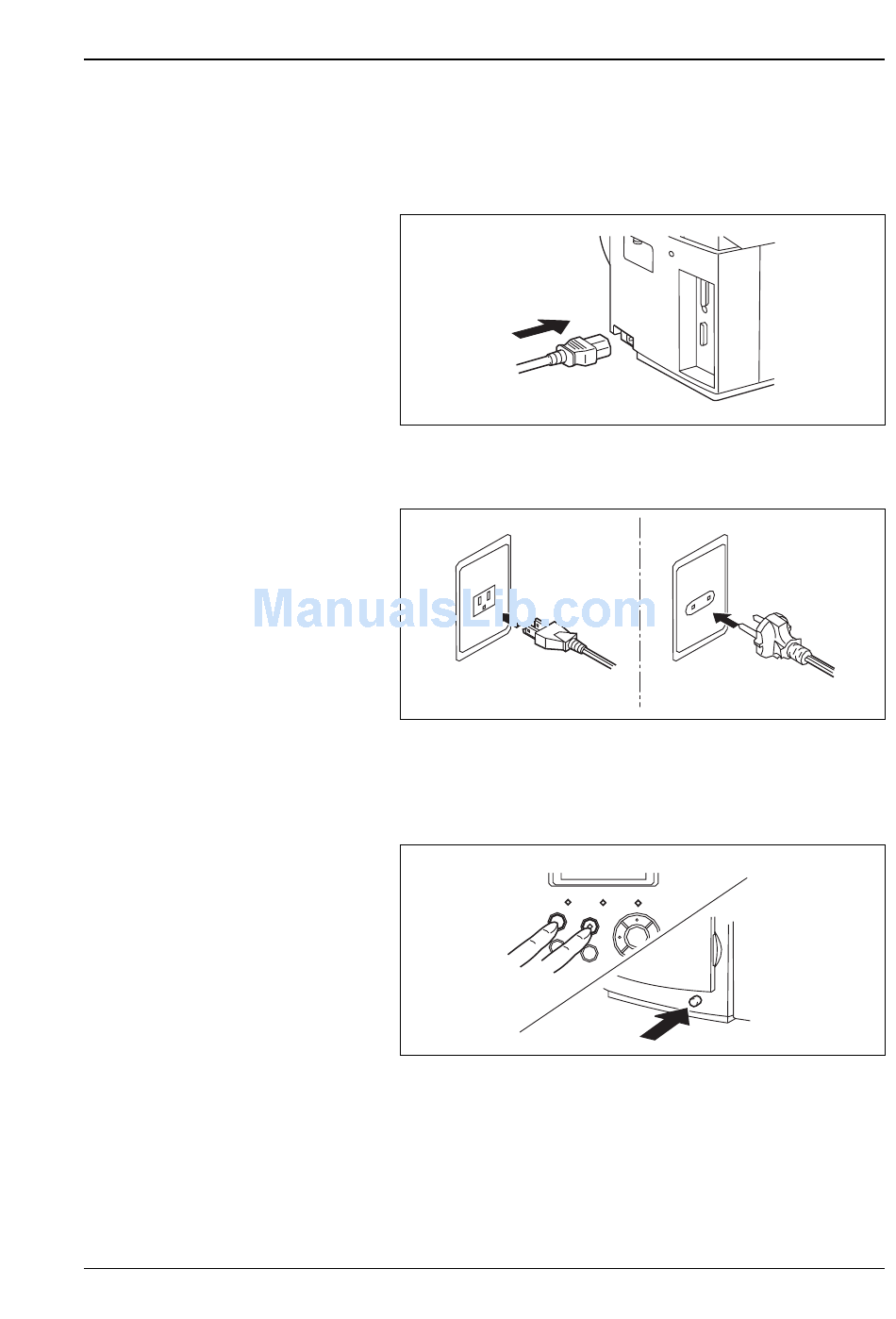

Connect the printer to a power outlet and turn the printer on
according to the following procedure.
. Attach the power cord to the power connector, located in the
1
back of the main unit.
. Plug the power cord, that is attached to the main unit of the
2
printer, into an AC outlet.
. While pressing both the <Pause> and <On Line> keys, turn the
3
power switch ON. Keep pressing those keys until the buzzer
beeps. About 10 seconds later, the message "01 OFFLINE"
appears on the display panel.
Note!
By pressing the <Pause> and <On Line> keys during power up,
you will enter a special "Service Man Mode". The operator
should only enter this mode to perform installation cleaning (see
chapter 4.6). All other facilities in the Service Man Mode are
intended for trained service personnel only.
Chapter 4
READY
DATA
ERROR
PAUSE
MENU
ON LINE
STOP
FEED
Installation
18
