4.5
Control Panel
Intermec ColorCoder V4 – Installation & Operation Ed. 1

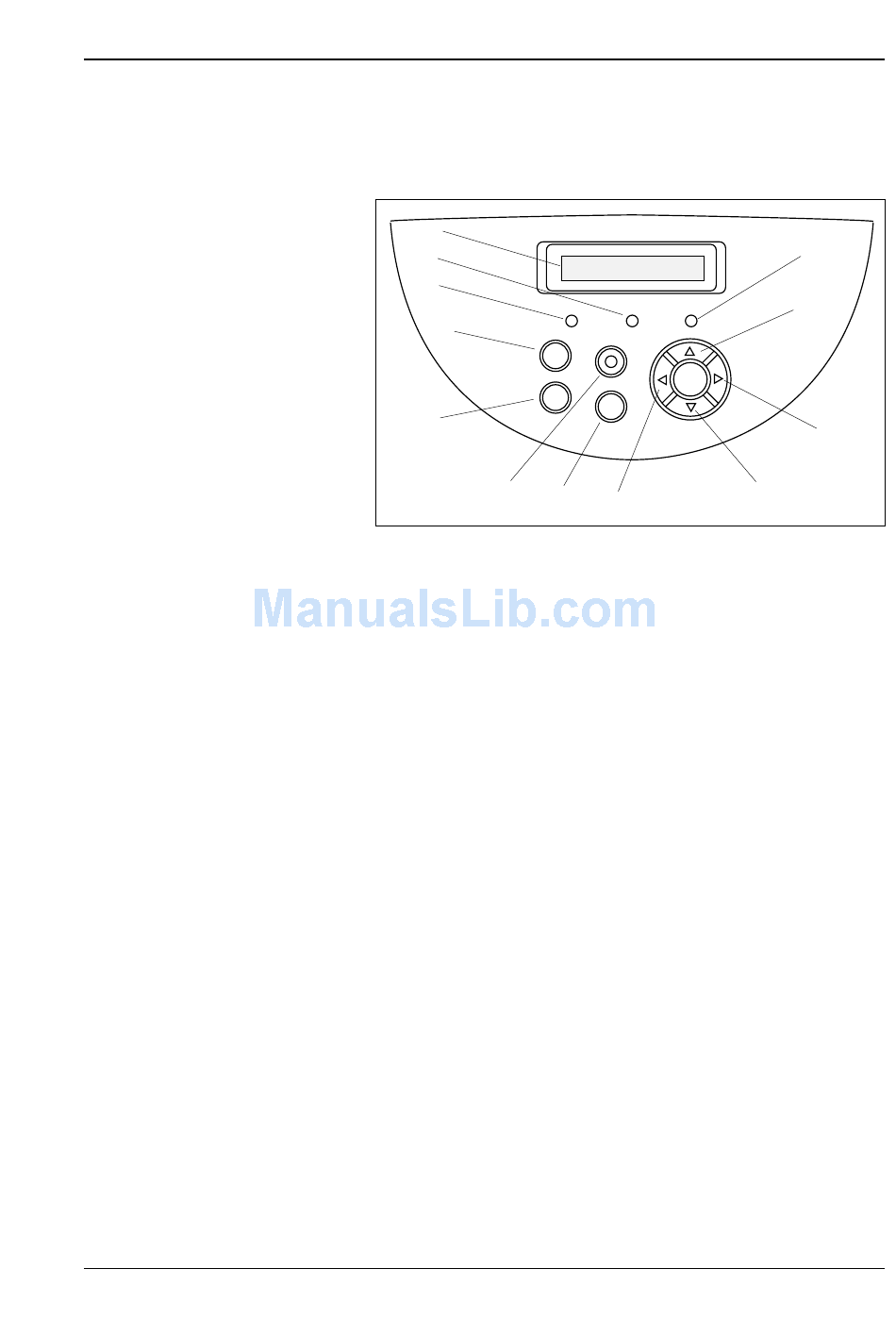

The printer can be controlled by means of a panel on the front. In
addition to a 16 character LCD (Liquid Crystal Display) display
panel, there are various keys and indicator lamps, some of which
you will need to use to complete the installation:
1
3
4
PAUSE
STOP
5
6
1. Display Panel
2. Data Lamp
3. Ready Lamp
4. Pause Key
5. Stop Key
6. On Line Key
7. Feed Key
8. Cursor Left Key
9. Enter Key
10. Cursor Right Key
11. Menu Key
12. Error Lamp
Refer to chapter 12 for complete control menu diagrams.
Chapter 4
READY
READY
DATA
ERROR
MENU
ON LINE
FEED
ENTER
7
8
Prompts the operator and shows menus, settings, errors
and other messages.
Lights during data access.
Flashes during warming up and is lit when power is on and
printer is ready.
Holds printing or resumes held printing.
Cancels printing.
Switches the printer between on line/off line.
When on line is selected, a lamp in the key lights.
Feeds out paper, e.g. after a completed print job. Can only
be used when the printer is off line:
- Feed key only:
A single copy is fed out each time the key is pressed.
- Feed + Cursor Left keys:
The paper is continuously fed out as long the keys are
pressed.
- Feed + Cursor Right keys:
The paper is continuously pulled back as long the keys
are pressed.
Displays previous menu at current menu level.
Selects the displayed menu option.
Displays next menu at current menu level.
Displays menu when printer is off-line.
Also moves menu back one step.
Lights when an error occurs.
Installation
12
11
10
9
19
