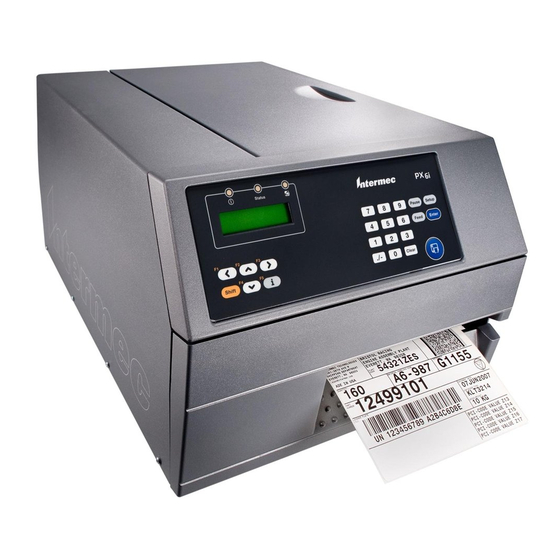

Intermec PX4i Spare Parts Catalog
  1. Manuals
  2. Brands
  3. Intermec Manuals
  4. Printer
  5. EasyCoder PX4i
  6. Spare parts catalog

Intermec PX4i Spare Parts Catalog

High performance printer
Hide thumbs Also See for PX4i:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , User Manual
PX 4i | PX 6i
High Performance Printer
Spare Parts Catalog

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX4i and is the answer not in the manual?

Questions and answers

Related Manuals for Intermec PX4i

Summary of Contents for Intermec PX4i

  • Page 1 PX 4i | PX 6i High Performance Printer Spare Parts Catalog...
  • Page 2 The information contained herein is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec Technologies Corporation.
  • Page 3 This page records changes to this document. The document was previously released as version -001. Version Number Date Description of Change 12/2009 Revised to include changes for the Asterix Upgrade Program. PX4i and PX6i High Performance Printer Spare Parts Catalog...
  • Page 4 PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 5: Table Of Contents

    PX4i Liner/Batch Takeup Assembly........
  • Page 6 Contents PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 7: Px4I And Px6I Spare Parts Catalog

    However, these parts are not compatible. Installing the wrong part may damage the printer. Spare Parts Overview This section contains information about spare parts for the PX4i and PX6i printers. Use the overview illustrations and tables to locate and identify each spare part assembly.

  • Page 8: Px4I Spare Parts Overview

    21, 23, 24, Liner/batch takeup unit (option) Label slack absorber Chassis Cutter kit (option) Print unit Label taken sensor kit (option) Keyboard and console board Front, 4-inch Hinge kit 12, 13, PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 9: Px6I Spare Parts Overview

    Media supply with accessories 22, 23, 24, Liner/batch takeup unit (option) Label slack absorber Chassis Cutter kit (option) Print unit Label taken sensor kit (option) Keyboard and console board Hinges 12, 13, PX4i and PX6i High Performance Printer Spare Parts Catalog...
  • Page 10 TPH data cable assembly, PX4 To be replaced by P/N 1-974015-009 CompactFlash Memory card (various sizes) See the Intermec Price Guide Firmware cards and font card (various font collections) See the Intermec Price Guide PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 11: Spare Parts

    Spare Parts This section contains detailed illustrations, descriptions, and part numbers for the PX4i and PX6i spare parts. Note that the description text is not necessarily the same as the text on drawings, packing slips, or invoices. Keyboard and Console Board...

  • Page 12: Chassis Bottom

    Notes 653-662-001 Door stop, PX4B printer Not shown 1-196259-11 1-196259-11 Hinge spring, leaf Set of 2 1-196266-11 1-196266-11 Hinge Set of 4 1-992328-90 Rubber foot (12-pack), F2/F4, PX4/PX6 4 per printer PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 13: Chassis Top

    Front cover assembly kit, 501/PX4i Works with the PX4i peel-off accessory 1-040127-90 1-040127-01 Front access door, 601/601XP/ P/N 1-040127-90 includes front and rear PX6i hinges and door spring lock, not shown 1-040299-90 Lock assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 14: Px4I Print Assembly

    PX4i Print Assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...
  • Page 15 203.2 dpi 1-040083-90 1-040083-900 Thermal printhead assembly (11.81 dots/mm) 300 dpi 850-812-900 Thermal printhead assembly, 400 dpi PX4i kit 400 dpi 1-995101-24 Tooth belt, 83 MXL025 T=83 1-040519-90 1-040519-900 Toothless wheel assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 16: Px6I Print Assembly

    PX6i Print Assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...
  • Page 17 2 each 1-040100-02 1-040100-02 Gear wheel 1-040084-900 Thermal printhead assembly (8 dots/mm) 203.2 dpi 1-040085-900 Thermal printhead assembly (11.81 dots/mm) 300 dpi 1-995101-24 1-995101-24 Timing belt 1-040519-90 1-040519-900 Toothless wheel assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 18: Ribbon Supply Assembly

    1-040602-00 PX4i spring brake assembly 1-040609-00 1-040609-00 PX6i spring brake assembly 1-040189-90 1-040189-90 PX4i ribbon supply unit assembly Complete unit (no screws included) 1-040198-90 1-040198-90 PX6i ribbon supply unit assembly Complete unit (no screws included) 1-040448-00 1-040448-00 Ring Same for PX4i and PX6i...

  • Page 19: Ribbon Rewind Assembly

    PX4i ribbon rewind unit assembly Complete unit (no screws included) 1-040199-01 PX6i ribbon rewind unit assembly Complete unit (no screws included) 1-040443-11 1-040443-11 Bobbin plate Same part for both PX4i and PX6i PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 20: Ribbon Sensor

    Ribbon Sensor Ribbon Sensor Spare Parts Callout Part Number RoHS Part Number Description Notes 1-975605-13 1-974005-013 Ribbon sensor assembly Includes cable PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 21: Px4I Media Supply

    PX4i Media Supply PX4i Media Supply Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040060-03 1-040060-03 Unwind assembly, 4-inch Complete unit (screws not included) 1-150166-00 1-150166-00 Bobbin assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 22: Px6I Media Supply

    PX6i Media Supply PX6i Media Supply Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040060-13 1-040060-13 Unwind assembly, 6-inch Complete unit (screws not included) 1-150166-00 1-150166-00 Bobbin assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 23: Paper Sensor

    Paper Sensor Paper Sensor Spare Parts Callout Part Number RoHS Part Number Description Notes 1-975605-25 1-974005-025 Paper sensor assembly Includes cable. Same for PX4i and PX6i. PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 24: 3-Inch Adapter

    3-Inch Adapter 3-Inch Adapter Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040327-52 1-040327-52 Bobbin adapter assembly For 76 mm (3-inch) core diameter PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 25: Px4I Media Roll Retainer

    PX4i Media Roll Retainer PX4i Media Roll Retainer Spare Parts Callout Part Number RoHS Part Number Description 776290-00 1-776290-00 Media roll retainer PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 26: Px4I Label Slack Absorber

    PX4i Label Slack Absorber PX4i Label Slack Absorber Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040321-00 1-040321-00 Spring, torsion 1-040061-90 1-040061-90 Label slack absorber, 4-inch Complete unit 1-040329-00 1-040329-00 Edge guide PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 27: Px6I Label Slack Absorber

    PX6i Label Slack Absorber PX6i Label Slack Absorber Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040321-00 1-040321-00 Spring, torsion 1-040061-97 1-040061-95 Label slack absorber, 6-inch Complete unit 1-040329-00 1-040329-00 Edge guide PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 28: Px4I Liner/Batch Takeup Assembly

    P/N 1-040237-12 1-040237-12 Gear wheel, MXL21 1-040239-90 1-040239-90 Belt stretcher kit Kit includes paper rewind tension pulley P/N 1-776222-00 1-995101-53 Tooth belt, 162 MXL 025 T=162 1-994059-008 Screw, MRT 4X8 ZP PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 29: Px6I Liner/Batch Takeup Assembly

    Located inside gear wheel P/N 1-040237-12 1-040237-12 Gear wheel, MXL21 1-040239-90 1-040239-90 Belt stretcher kit Kit includes paper rewind tension pulley P/N 1-776222-00 1-995101-53 1-995101-53 Timing belt 1-994059-008 Screw, MRT 4X8 ZP PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 30: Cpu Board

    Flash SIMM 16 MB Flash memory expansion 1-956009-90 1-936009-010 Real-time clock circuit You need to configure the CPU board. For help, see the PX4i and PX6i High Performance Printer Service Manual (P/N 939-022-xxx). PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 31: Power Supply Assembly

    Power Supply Assembly Power Supply Assembly Spare Parts Callout Part Number RoHS Part Number Description Notes 1-971632-90 1-971132-900 Driver board assembly Complete unit as shown PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 32: Driver Board

    Driver Board Driver Board Spare Parts Callout Part Number RoHS Part Number Description Notes 1-971652-90 1-971152-900 Driver board assembly Complete unit as shown PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 33: Double Serial Interface Kit (Fingerprint Option)

    Complete kit. Fitted for 2x RS-232. Modification circuits (for one port): 1-956038-01 1-956038-001 RS-422 isolated 1 circuit 1-985319-00 1-985319-000 20 mA current loop 2 optocouplers 1-956037-01 1-956037-001 RS-485 isolated 1 circuit PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 34: Serial/Industrial Interface Kit (Fingerprint Option)

    Callout Part Number RoHS Part Number Description Notes 1-971643-80 1-971143-800 Serial/industrial interface board kit Complete kit. Serial port fitted for RS-232. Modification circuits (for serial port): 1-956038-01 1-936038-001 RS-422 isolated 1 circuit 1-956037-01 1-936037-001 RS-485 isolated PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 35: Ieee 1284 Parallel Interface Kit (Option)

    - 9 7 6 4 - 0 2 IEEE 1284 Parallel Interface Kit Spare Parts Callout Part Number RoHS Part Number Description Notes 1-971641-80 1-971141-800 IEEE 1284 parallel interface Complete kit board kit PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 36: Easylan Ethernet Interface Kit (Option)

    EasyLAN Ethernet Interface Kit Spare Parts Callout Part Number RoHS Part Number Description Notes 1-971645-80 1-971145-800 EasyLAN Ethernet interface kit Complete kit includes CD-ROM New LAN unit is located on the new CPU assembly P/N 1-971156-xxx PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 37: Easylan Wireless Interface Kit (Option)

    EasyLAN Wireless Interface Kit (Option) EasyLAN Wireless Interface Kit Spare Parts Callout Part Number RoHS Part Number Description Notes 1-971646-80 1-971146-800 EasyLAN wireless interface kit Complete kit includes CD-ROM PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 38: Label Taken Sensor Kit

    Label Taken Sensor Kit Label Taken Sensor Kit Spare Parts Callout Part Number RoHS Part Number Description Notes 1-040559-90 1-040559-900 Label taken Complete kit includes sensor kit installation instructions PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 39: Px4I Paper Cutter (Option)

    1-040122-02 Cutter mechanism, 4-inch assembly 1-196260-90 1-196260-90 Hinge kit Includes hinges (4x) for the front cover and side doors, leaf springs and screws 1-040450-00 1-040450-00 Spring Not visible 1-040299-90 Lock assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 40: Px6I Paper Cutter (Option)

    1-040122-11 Cutter mechanism, 6-inch assembly 1-196260-90 1-196260-90 Hinge kit Includes hinges (4x) for the front cover and side doors, leaf springs and screws 1-040450-00 1-040450-00 Spring Not visible 1-040299-90 Lock assembly PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 41: Px4I Fan Fold Guide (Option)

    PX4i Fan Fold Guide (Option) PX4i Fan Fold Guide Spare Parts Callout Part Number Description 1-040565-00 Fan fold guide kit (PX4i) PX4i and PX6i High Performance Printer Spare Parts Catalog...

  • Page 42: Px6I Fan Fold Guide (Option)

    PX6i Fan Fold Guide (Option) PX6i Fan Fold Guide Spare Parts Callout Part Number Description 1-040565-10 Fan fold guide kit (PX6i) PX4i and PX6i High Performance Printer Spare Parts Catalog...
  • Page 44 Worldwide Headquarters 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2009 Intermec Technologies Corporation. All rights reserved. PX4i and PX6i High Performance Printer Spare Parts Catalog *940-000-002* P/N 940-000-002...
