4. Installation
4.1
Assembling
the Printer
IMPORTANT!
It is most important that the installation
procedure is carried out exactly as
described in this chapter. If not, the
printer will not work and is subject to
the risk of severe damage!
Note!
Save packing material, clips, pads etc.
in case you need to transport the printer
later (see Appendix A.2). Replacement
packing material can also be provided
by your local Intermec distributor.
Intermec ColorCoder V4 – Installation & Operation Ed. 1

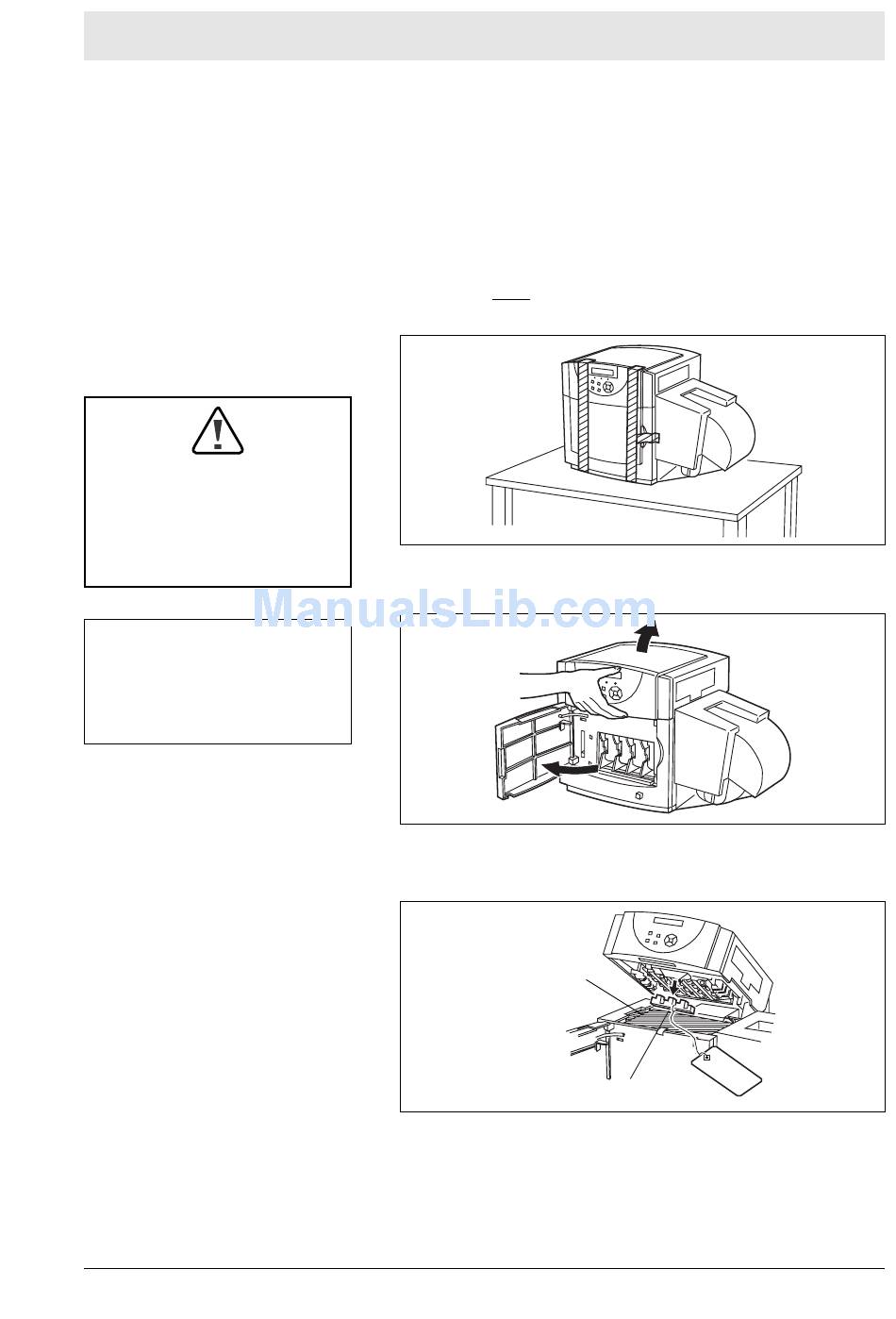

After removing the printer from the shipping container, install the
printer according to the following procedure. The only tool required
is a M4 Phillips screwdriver.
. Remove the printer from its aluminum shrink pack, and place the
1
printer on a level surface. Remove the tape attached to exterior
of the main unit.
. Open the printer cover, and open the Print Head Station (PHS)
2
unit by lifting the handle.
. Remove the pad under the PHS unit (with tag), but leave the
3
paper towels.
Paper Towels
(Do NOT remove!)
Remove Pad
Chapter 4
13
