4.3
Connecting the
Printheads,
cont'd.
Intermec ColorCoder V4 – Installation & Operation Ed. 1
. After completing connections for all head connectors, close the
3

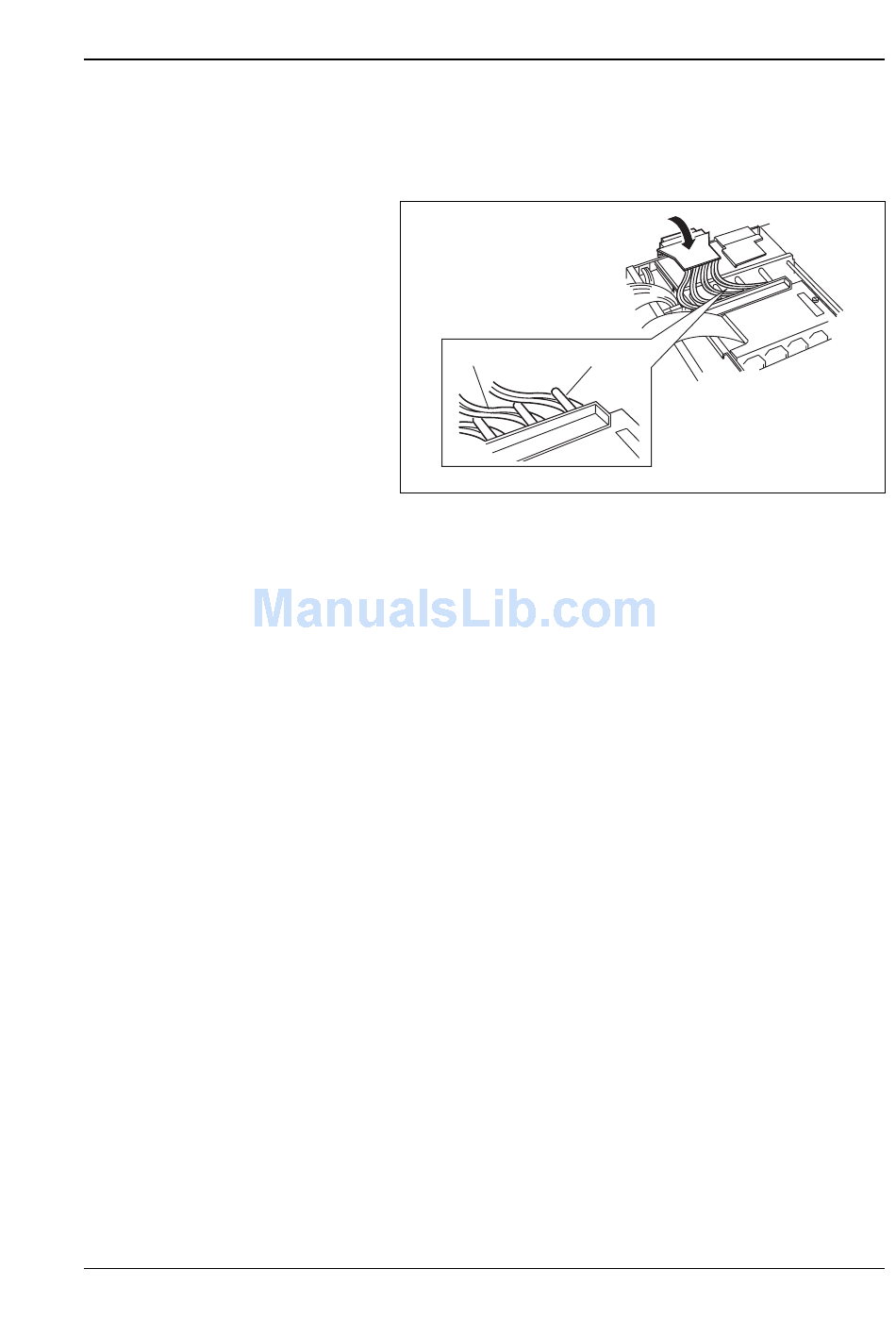

tube release lever (i.e. the white plastic cover). Pass the tube of
each head connector under the tube retaining pin, as shown in the
figure below.
Tube
Caution!
Make sure that each head connector is passed under the tube
retaining pin. This is to prevent the PHS cover from touching the
tubes and possibly bending them.
. Re-attach the cover over the PHS unit.
4
Chapter 4
Retaining Pin
Installation
17
