User's Manual
● Define the period by editing.
1. Select a date and then click
2. Set record type for each period.
3. Click Apply to save the settings.
Step 5 Click Apply to complete the settings.
Enable auto record function so that the record plan can become activated. Refer to
"4.1.4.6.3 Record Control" for detailed information.
1.1.4.6.2 Snapshot Schedule

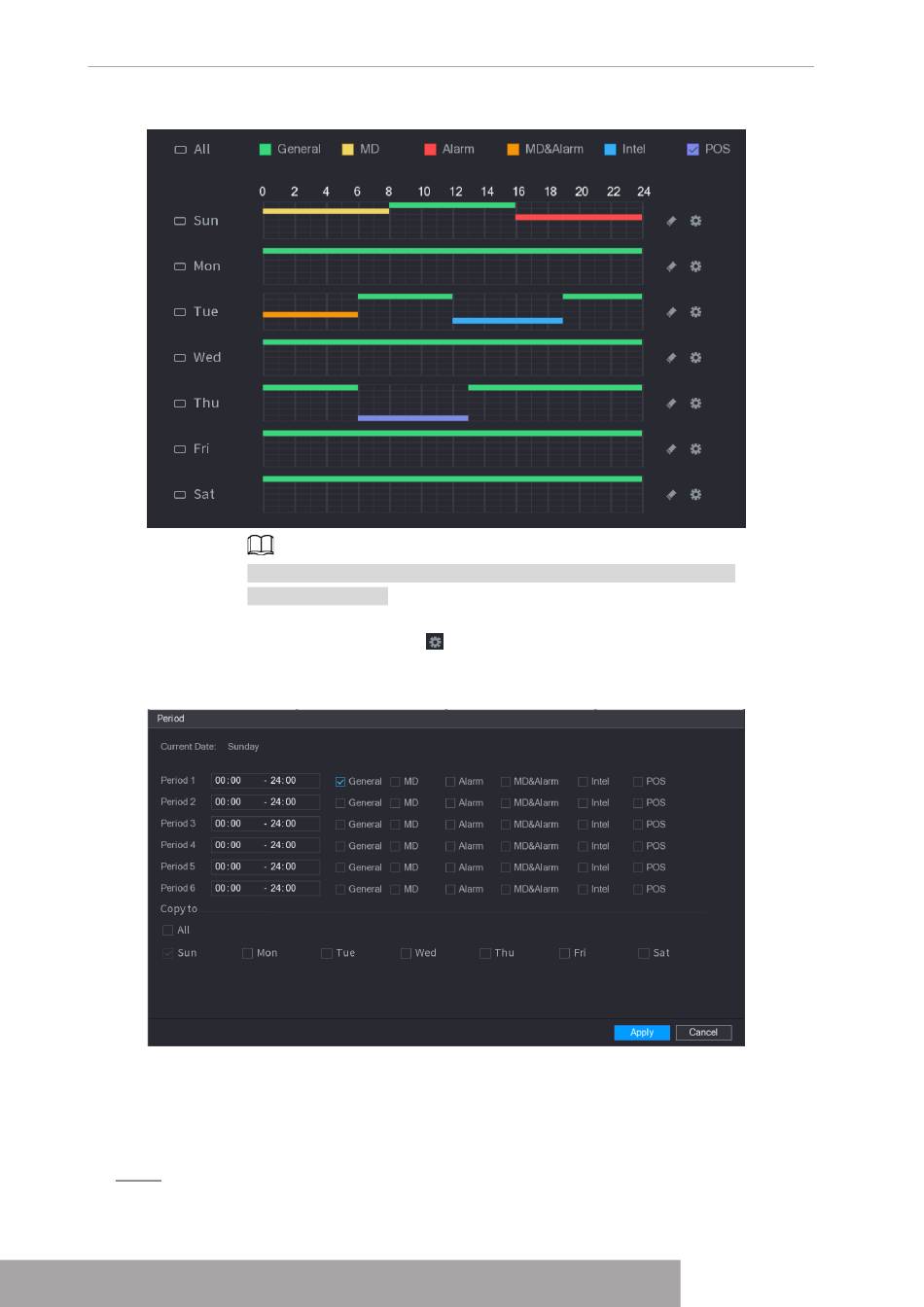

Figure 4-38
The MD record and alarm record function are both null if you enabled
MD&Alarm function.
The Period interface is displayed.
Figure 4-39
There are six periods for you to set for each day.
◇
Under Copy to, select All to apply the settings to all the days of a week, or
◇
select specific day(s) that you want to apply the settings to.
.
36
