Cluster Control; Arbitrage Ip - BCS Line User Manual

299
Step 4 Click OK.
You can click

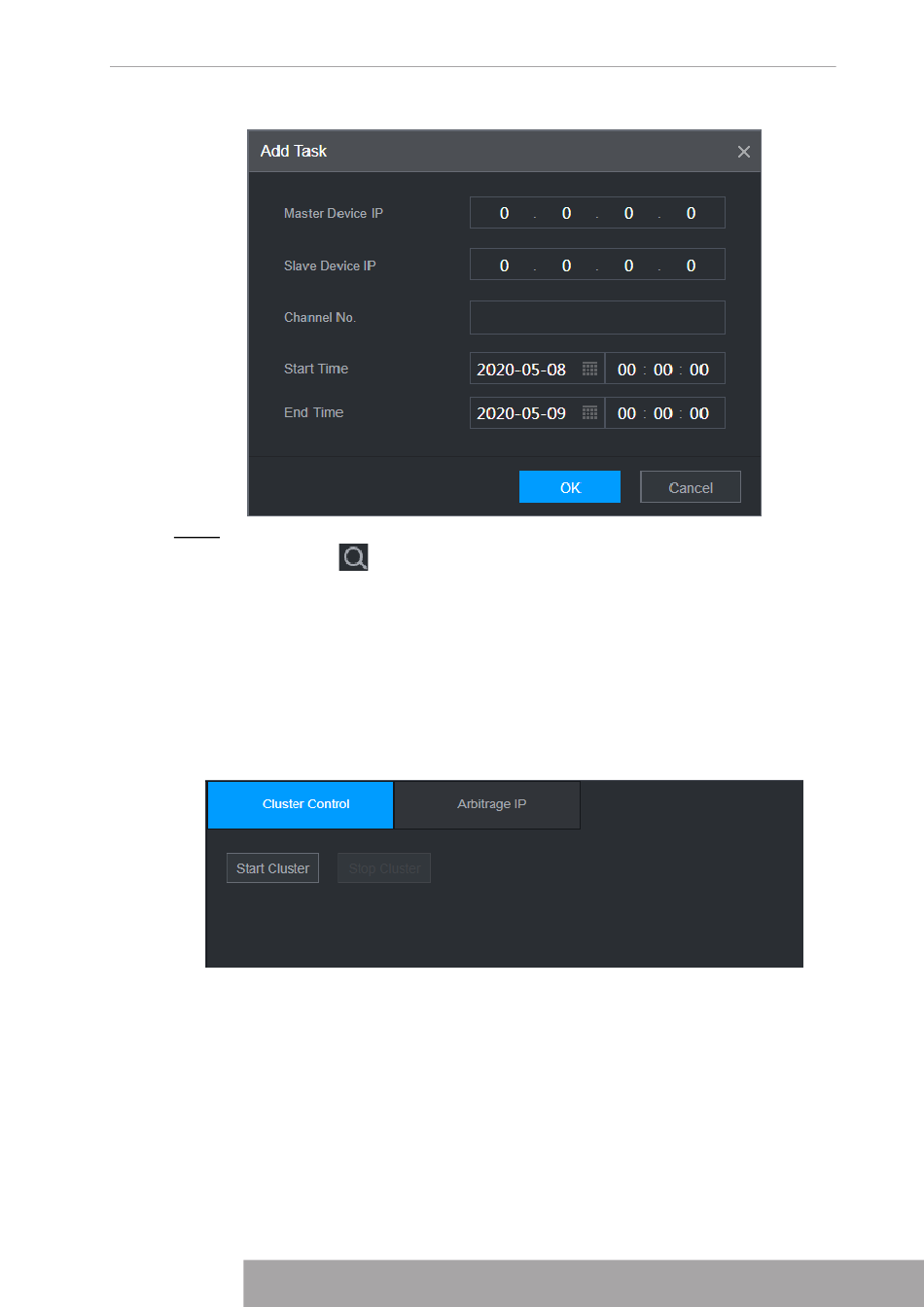

2.4.5 Cluster Control

2.4.5.1 Cluster Control
From SETTING > Cluster Service > Cluster Control, you can go to the Cluster Control
interface. It is to enable/disable cluster. See Figure 5-9.
You can see the corresponding prompt if you successfully enabled cluster service.

2.4.5.2 Arbitrage IP

When there is only two NVRs in the cluster, you can set the arbitration IP to change the cluster
accordingly. The arbitration IP is the IP address of other device/PC/gateway that can connect to
the NVR.
From SETTING > Cluster Service > Arbitrage IP, you can see the following interface. See
Figure 5-10.
Copyright © NSS Sp. z o.o.
Figure 5-8
to view the transfer information.
Figure 5-9
299
User's Manual
