Gtx Transceivers - Xilinx VC707 User Manual

Chapter 1: VC707 Evaluation Board Features
X-Ref Target - Figure 1-13
X6
114.285 MHz
20 ppm
2 XA
GND1
GND2 XB
4
GND
REC_CLOCK_C_P
R167
100Ω
REC_CLOCK_C_N
SI5326_INT_ALM
SI5326_RST
See the Silicon Labs Si5324 data sheet for more information on this device

GTX Transceivers

[Figure
The VC707 board provides access to 27 GTX transceivers:
•
•
•
•
•
•
The GTX transceivers in 7 series FPGAs are grouped into four channels described as
Quads. The reference clock for a Quad can be sourced from the Quad above or Quad below
the GTX Quad of interest. There are four GTX Quads on the VC707 board with connectivity
as shown here:
32
Send Feedback
SI5324_VCC
U24
5
10
32
1
SI5326_XTAL_XA 6
3
SI5326_XTAL_XB 7
C33
0.1μF 25V
X5R
REC_CLOCK_P 16
REC_CLOCK_N 17
NC 12
C34
0.1μF 25V
NC 13
X5R
3
NC 4
NC 11
NC 15
NC 18
19
20
1
21
R16
4.7KΩ 5%
GND

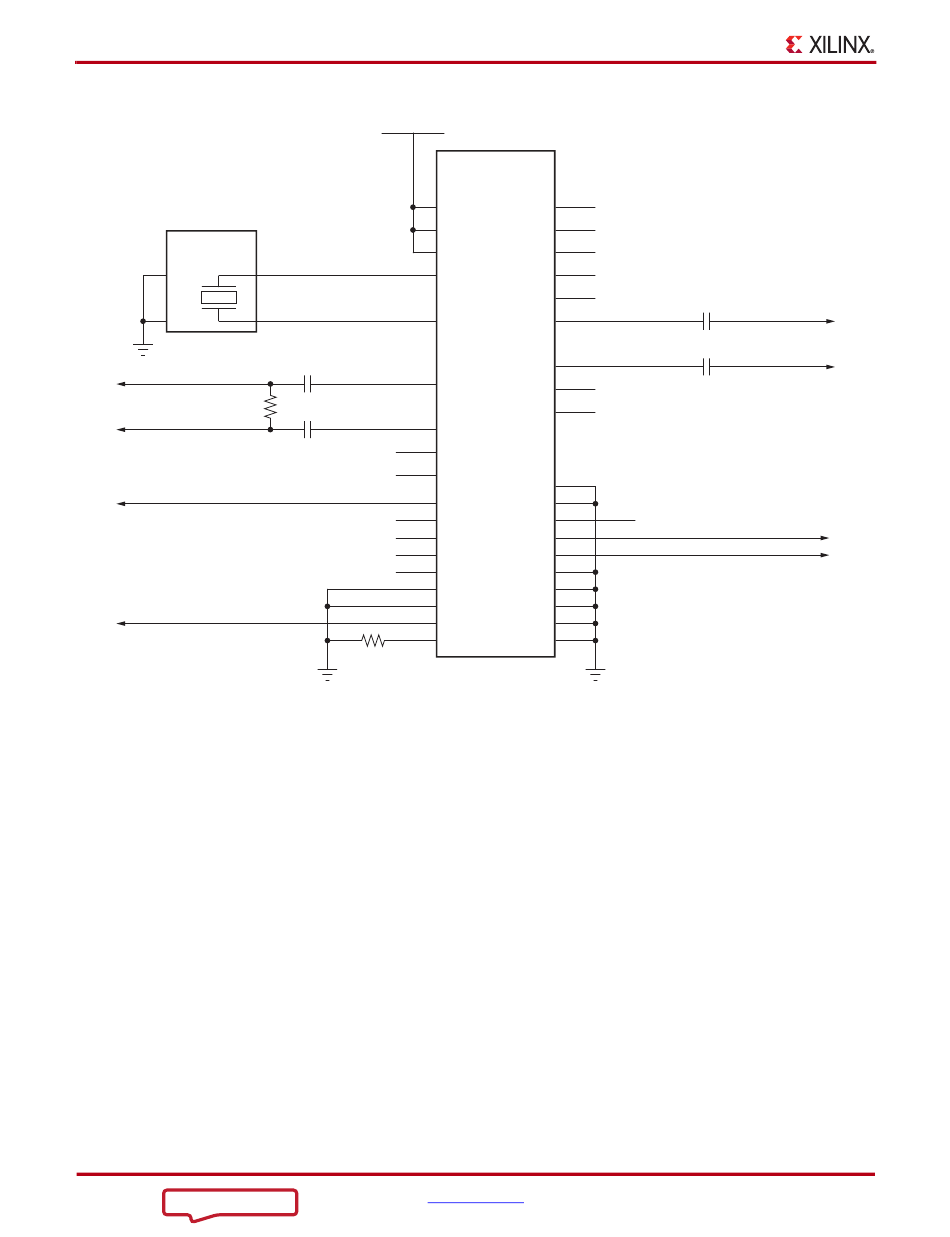

Figure 1-13: Jitter Attenuated Clock
1-2, callout 12]
Eight of the GTX transceivers are wired to the PCI Express x8 endpoint edge
connector (P1) fingers
Eight of the GTX transceivers are wired to the FM1 HPC connector (J35)
Eight of the GTX transceivers are wired to the FMC2 HPC connector (J37)
One GTX is wired to SMA connectors (RX: J27, J28 TX: J29, J30)
One GTX is wired to the SFP/SFP+ Module connector (P3)
One GTX is used for the SGMII connection to the Ethernet PHY (U50)
